Rolling Shutter Motors UAE

Side, Tubular & Central Rolling Shutter Motors in UAE

Gate Motor UAE supplies professional rolling shutter motors in UAE for shops, warehouses, factories, commercial buildings, garages, workshops and industrial facilities. Our range includes side motors, tubular motors and central motors for different shutter sizes, weights and operating requirements.

Side, Tubular & Central Rolling Shutter Motors in UAE

Choose from a wide range of automatic rolling shutter motors for residential, commercial and industrial applications. Different motor types are available according to the shutter construction, size, weight, shaft arrangement and required operating frequency.

Our rolling shutter automation range includes motors for smaller shop shutters through to heavy-duty shutter motors with lifting capacities up to 2000 kg, as well as tubular motors available in different tube diameters and torque ratings.

Rolling Shutter Side Motors UAE

Rolling shutter side motors are suitable for many commercial and heavy-duty shutter applications. Our range includes different lifting capacities for shops, warehouses, factories, workshops and industrial entrances.

Available side motor capacities include:

• 300 kg rolling shutter side motors
• 600 kg rolling shutter side motors
• 800 kg rolling shutter side motors
• 1000 kg rolling shutter side motors
• 1500 kg heavy-duty rolling shutter motors
• 2000 kg industrial rolling shutter motors

The correct side motor should be selected according to the actual shutter weight, shaft arrangement, power supply, operating frequency and installation requirements.

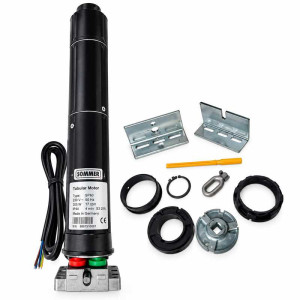

Rolling Shutter Tubular Motors UAE

Tubular motors are installed within a compatible roller tube or shaft, providing a compact automation solution for suitable rolling shutters, roller doors and similar applications.

Our tubular motor range includes different tube diameters and torque ratings, including 35 mm, 45 mm, 59 mm and 92 mm motors, with available torque ratings ranging from approximately 10 Nm to 550 Nm depending on the model.

Available options include motors such as:

• 35 mm – 10 Nm tubular motors
• 45 mm – 20 Nm and 50 Nm tubular motors
• 59 mm – 140 Nm tubular motors
• 92 mm – 170 Nm, 230 Nm, 330 Nm, 450 Nm and 550 Nm tubular motors

Rolling Shutter Central Motors UAE

Central rolling shutter motors provide a compact automation solution for compatible rolling shutter systems. We supply central motors in different capacities and torque ratings for residential and commercial shutter applications.

Available options include approximately 140 Nm, 170 Nm, 190 Nm, 260 Nm and 420 Nm configurations depending on the selected motor and manufacturer.

Heavy-Duty Industrial Rolling Shutter Motors

For warehouses, factories and larger commercial shutters, we offer heavy-duty rolling shutter motors with higher lifting capacities. Selecting an industrial shutter motor requires consideration of the shutter weight, dimensions, shaft configuration, power supply and expected number of operating cycles.

Some heavy-duty models are available with single-phase or three-phase power configurations depending on the motor. Always check the individual product specifications before selecting a motor.

Rolling Shutter Motor Controllers & Remote Controls

Complete your shutter automation system with compatible rolling shutter controllers, receivers, remote controls and WiFi controllers. Depending on the motor and controller, these accessories can provide convenient OPEN, STOP and CLOSE control as well as additional automation functions.

• Rolling shutter motor controllers
• Side motor control units
• Tubular motor controllers
• Remote control receivers
• Rolling shutter remote controls
• WiFi shutter controllers
• Push-button and wall-switch controls

Rolling Shutter Motor Applications

• Retail shops and storefront shutters
• Warehouses and storage facilities
• Factories and industrial units
• Commercial buildings
• Workshops
• Residential garages
• Loading and service entrances
• Automatic roller shutter doors

How to Choose the Correct Rolling Shutter Motor

The correct motor should not be selected by shutter width alone. Important factors include the total shutter weight, shutter height and width, shaft or tube diameter, drum arrangement, power supply, daily operating frequency and installation configuration.

For tubular motors, the required torque and tube diameter are especially important. For side motors, the required lifting capacity and power supply must be matched to the shutter system. For central motors, shutter compatibility and the required torque should be checked before installation.

If you are replacing an existing shutter motor, send us the old motor label, shutter dimensions, approximate shutter weight and site photos. This can help identify an appropriate replacement motor.

Rolling Shutter Motor Supply & Installation in UAE

We supply rolling shutter motors and automation accessories across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain. Professional installation and technical support are available for suitable residential, commercial and industrial rolling shutter applications.

Contact us with your shutter width, height, approximate weight, power supply and site photos for help selecting the correct rolling shutter motor.
