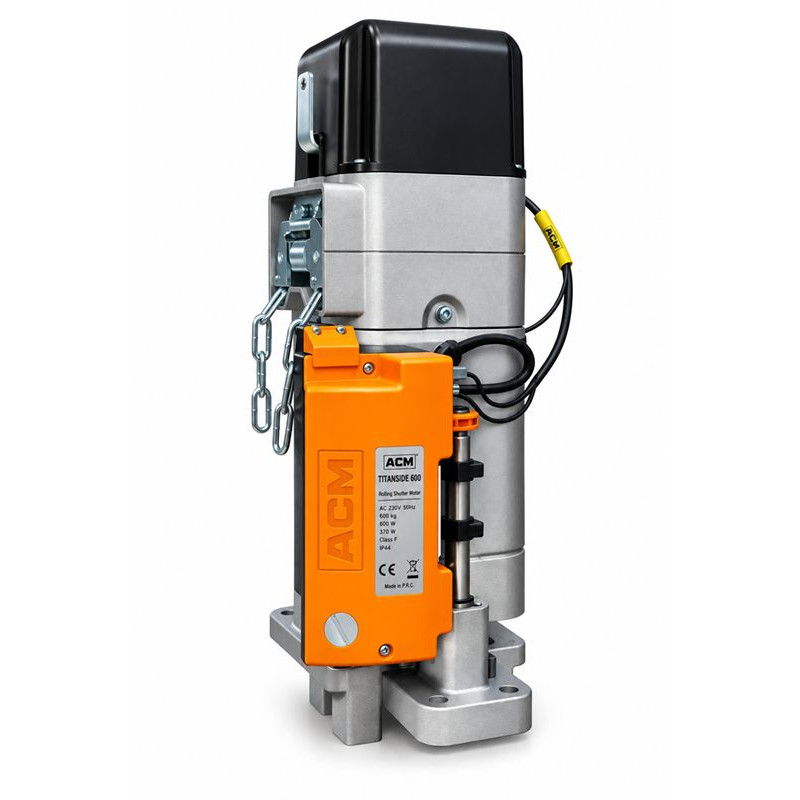

ACM TITANSIDE 600 KG Rolling Shutter Side Motor

ACM TITANSIDE 600 KG Heavy-Duty Rolling Shutter Side Motor UAE

ACM TITANSIDE 600 is a heavy-duty rolling shutter side motor designed for automatic commercial and industrial roller shutters with a lifting capacity of up to 600 KG. The motor combines 370W power, 412 Nm torque and 4.6 RPM output speed to provide strong and controlled operation for large rolling shutter doors.

Designed for side-mounted installation, the ACM TITANSIDE 600 is suitable for warehouses, factories, workshops, retail shops, garages, storage facilities and other commercial or industrial properties requiring dependable rolling shutter automation.

ACM TITANSIDE 600 Key Characteristics

• ACM heavy-duty rolling shutter side motor
• Maximum lifting capacity: up to 600 KG
• Motor power: 370W
• Rated torque: 412 Nm
• Output speed: 4.6 RPM
• Maximum lifting height up to 6 metres
• Heavy-duty side-mounted motor construction
• Electric brake system
• Manual emergency chain operation
• IP30 protection rating
• Operating time up to 5 minutes
• Wall switch control compatible
• Remote-control operation with compatible controller
• Suitable for commercial and industrial rolling shutters

ACM TITANSIDE 600 Technical Specifications

600 KG Heavy-Duty Lifting Capacity

The ACM TITANSIDE 600 KG is designed for larger rolling shutters where a conventional central motor may not provide sufficient lifting capacity. Its side-mounted design and heavy-duty drive system make it suitable for compatible shutters weighing up to approximately 600 KG.

The actual motor selection must take into account the complete shutter weight, barrel and shaft arrangement, shutter balance, lifting height and operating frequency.

370W Motor with 412 Nm Torque

The TITANSIDE 600 combines a 370W motor with 412 Nm torque to provide powerful lifting performance. Its controlled 4.6 RPM output speed allows large rolling shutters to move steadily during opening and closing.

Up to 6 Metres Lifting Height

The motor supports compatible rolling shutter installations with a lifting height of up to approximately 6 metres. This makes it suitable for many warehouse doors, factory entrances, workshops, commercial units and large garage shutters.

Electric Brake for Secure Shutter Operation

The electric brake system helps secure the shutter when the motor stops. This is particularly important for larger and heavier rolling shutters where controlled stopping and holding are essential.

Manual Chain Operation During Power Failure

The ACM TITANSIDE 600 provides a manual chain override for emergency operation when electrical power is unavailable. This allows the shutter to be manually opened or closed during a power failure, subject to correct installation and adjustment.

ACM Side Motor for Warehouse Rolling Shutters

The ACM TITANSIDE 600 rolling shutter motor is suitable for compatible warehouse and storage-facility shutters requiring a stronger side-mounted drive system. Its 600 KG capacity makes it a practical solution for many larger commercial entrances.

Industrial Rolling Shutter Motor for Factories

Factories and industrial facilities often require larger shutter systems than retail shops or residential garages. The TITANSIDE 600 provides a heavy-duty automation solution for compatible factory entrances, workshops, loading areas and industrial roller shutters.

Commercial Shop & Garage Shutter Applications

The motor can also be used for suitable large shopfront shutters, commercial garages and showroom entrances. Motor capacity should always be selected according to the actual shutter construction and total moving weight rather than opening dimensions alone.

Wall Switch & Remote Control Operation

The ACM TITANSIDE 600 can be operated using a compatible open / stop / close wall switch. Wireless operation can also be added using a suitable rolling shutter controller, receiver and remote-control system.

Remote-control specifications should be based on the controller installed with the motor. The motor itself should not be advertised as having a built-in radio receiver unless the supplied control system specifically includes one.

ACM TITANSIDE 600 vs Central Rolling Shutter Motor

A central shutter motor is normally mounted directly around the shutter shaft and is commonly used for smaller and medium-capacity shutters. The ACM TITANSIDE 600 is a dedicated side-mounted motor designed for applications requiring substantially greater lifting capacity and a heavy-duty drive system.

For a large commercial or industrial shutter approaching 600 KG, a correctly selected side motor is generally more appropriate than attempting to overload a smaller central motor.

Choosing the Correct Rolling Shutter Side Motor

Before selecting the TITANSIDE 600, confirm the actual shutter weight, lifting height, shaft and barrel configuration, shutter balance, electrical supply and expected daily operating frequency.

For replacement installations, also confirm the existing motor mounting arrangement, sprocket and chain configuration, limit-switch setup and available installation space.

ACM TITANSIDE 600 Supply & Installation UAE

We supply and install ACM TITANSIDE 600 KG rolling shutter side motors throughout the UAE for warehouses, factories, workshops, shops, garages and commercial or industrial properties.

Professional supply, replacement, installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

For motor selection or replacement, provide the existing motor label, approximate shutter weight, shutter dimensions, lifting height and clear installation photos so the correct rolling shutter motor can be confirmed.
