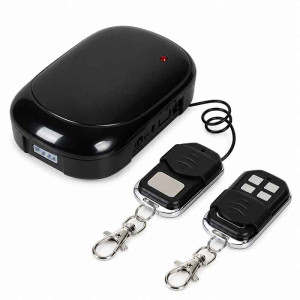

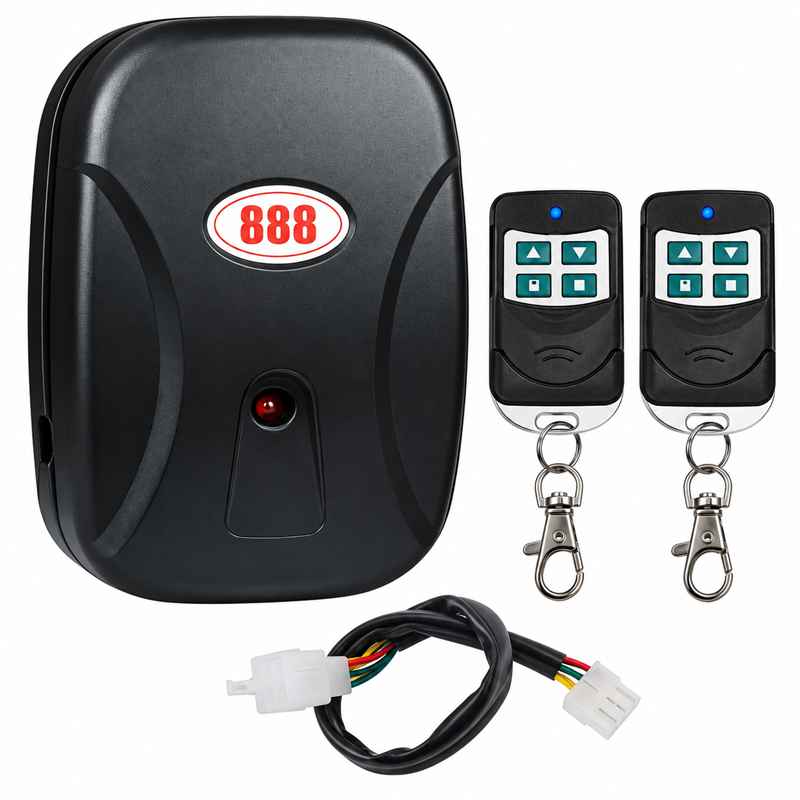

Rolling Shutter Side Motor Remote Controller 220V

220V Rolling Shutter Side Motor Remote Controller UAE

Rolling Shutter Side Motor Remote Controller is a professional 220V AC shutter motor control box designed for compatible side-chain rolling shutter motors and electric roller doors. It combines motor control, wireless remote operation and safety-device connectivity in one convenient controller.

The controller operates at 433MHz and provides independent OPEN, STOP and CLOSE commands from compatible remote controls. Additional functions include photocell input, automatic closing, motor direction adjustment and configurable operating functions for commercial and industrial rolling shutter installations.

Rolling Shutter Side Motor Controller Features

• Designed for compatible rolling shutter side motors
• Working voltage: 220V AC
• Wireless frequency: 433MHz
• Remote OPEN / STOP / CLOSE operation
• Photocell safety input
• Automatic closing function
• Maximum running-time setting
• Motor forward/reverse direction adjustment
• Manual push-button control support
• External key-switch connection support
• Remote-control learning function
• Low-voltage manual switch input
• ABS UV-resistant controller housing
• Suitable for commercial roller shutters and roller doors

Technical Specifications

OPEN, STOP & CLOSE Remote Control

The rolling shutter controller provides convenient wireless operation using compatible 433MHz remote controls. Independent OPEN, STOP and CLOSE commands allow the shutter to be controlled without using the wired wall switch for normal operation.

Photocell Safety Sensor Connection

A compatible photocell safety sensor can be connected to the controller. When correctly wired and programmed, the photocell can provide additional obstruction detection for the automatic shutter system.

The exact safety response depends on the controller configuration and installation. Photocells should be professionally positioned and tested after installation.

Automatic Closing Function

The controller supports an automatic closing function for suitable applications. When enabled and correctly configured, the shutter can close automatically after the programmed operating period.

Automatic closing should only be enabled when appropriate safety devices are installed and tested.

Motor Direction Adjustment

If the OPEN and CLOSE directions operate opposite to the required shutter movement, compatible versions of this controller provide a motor direction-change function. This allows the operating direction to be corrected during commissioning.

433MHz Wireless Receiver

The integrated 433MHz wireless receiver allows compatible shutter remote controls to be programmed directly into the control box. This provides convenient wireless access for shops, warehouses, workshops and other automatic roller shutter installations.

Suitable Applications

• Commercial rolling shutters
• Shop roller shutters
• Warehouse shutter doors
• Factory roller doors
• Workshop shutters
• Industrial rolling shutter doors
• Garage roller doors with compatible side motors
• Compatible 220V rolling shutter side motors

Rolling Shutter Side Motor Controller vs Remote Receiver

A complete rolling shutter motor controller performs motor-control functions such as OPEN, STOP and CLOSE and can provide connections for safety and manual-control devices. A simple remote receiver primarily adds wireless control to an existing compatible control system.

Check your existing motor wiring and controller type before ordering to ensure the correct product is selected.

Rolling Shutter Side Motor Controller UAE

We supply rolling shutter side motor remote controllers throughout the UAE for shops, warehouses, factories, workshops, commercial buildings and industrial roller shutter systems.

Supply, installation, programming and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Send us a clear photo of your existing rolling shutter motor label, controller, wiring terminals and remote control so the required voltage and compatibility can be checked.
