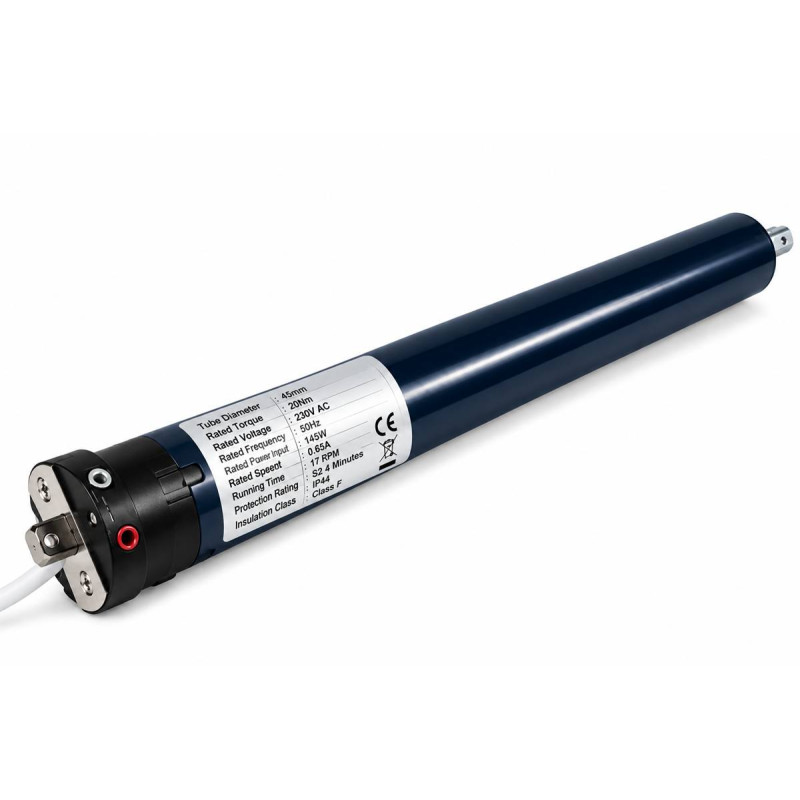

Tubular Motor 45mm 20Nm for Rolling Shutters
Price 399 AEDIn Stock

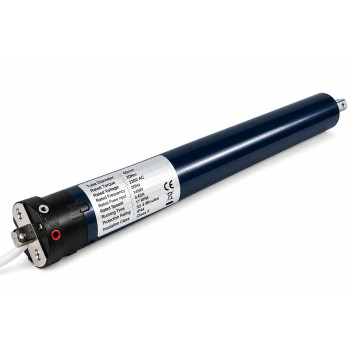

45mm 20Nm Rolling Shutter Tubular Motor UAE
The 45mm 20Nm Tubular Motor is a compact 230V AC rolling shutter motor designed for compatible rolling shutters, roller blinds and similar tubular automation applications. The motor installs inside a compatible roller tube, providing a clean and space-saving automation solution without requiring a large external side motor.
With 20 Nm rated torque, 45 mm motor diameter and a rated speed of 28 rpm, this tubular motor is suitable for compatible light and medium-duty shutter applications where compact installation and reliable operation are required.
45mm 20Nm Tubular Motor Key Features
- Compact 45 mm tubular motor
- Rated torque: 20 Nm
- Rated voltage: 230V AC
- Rated frequency: 50Hz
- Rated speed: 28 rpm
- Rated power input: 238W
- Rated current: 1.05A
- Duty rating: S2 4 minutes
- Protection rating: IP44
- Insulation class: Class F
- Compact in-tube installation
- Suitable for compatible rolling shutters and roller systems
- Residential and commercial applications
45mm 20Nm Tubular Motor Technical Specifications
| Product Type | Rolling Shutter Tubular Motor |
| Motor Diameter | 45 mm |
| Rated Torque | 20 Nm |
| Rated Voltage | 230V AC |
| Rated Frequency | 50Hz |
| Rated Power Input | 238W |
| Rated Current | 1.05A |
| Rated Speed | 28 rpm |
| Running Time / Duty | S2 4 Minutes |
| Protection Rating | IP44 |
| Insulation Class | Class F |
20Nm Torque for Rolling Shutter Automation
The motor produces a rated torque of 20 Nm. The correct motor should be selected according to the complete shutter system, including shutter weight, curtain dimensions, roller diameter, shaft arrangement and operating frequency.
Do not select a tubular motor based only on shutter width. The torque required to lift the shutter can change significantly according to the roller diameter and total curtain weight.
Compact 45mm Tubular Motor
The 45 mm tubular design allows the motor to be installed inside a compatible roller tube. This provides a compact installation with the drive system largely concealed inside the shutter assembly.
Before ordering, confirm that the motor diameter, drive adaptor, crown and mounting arrangement are compatible with the roller tube used on the shutter.
230V AC Tubular Shutter Motor
This model operates from a 230V AC, 50Hz electrical supply, making it suitable for compatible UAE rolling shutter installations.
The motor should be wired through a suitable rolling shutter control system or directional switch according to the motor wiring configuration and installation requirements.
28 RPM Operating Speed
The motor has a rated operating speed of 28 rpm. Final shutter travel speed will also depend on the diameter of the roller tube and the changing curtain roll diameter during operation.
S2 4-Minute Duty Rating
The tubular motor has an S2 4-minute short-time duty rating. It is therefore intended for intermittent shutter operation rather than continuous running.
Motor selection for frequently operated commercial shutters should take the required duty cycle into consideration.
IP44 Protection & Class F Insulation
The motor has an IP44 protection rating and Class F insulation. It should be installed correctly inside a compatible shutter system and protected from unsuitable environmental exposure according to the installation requirements.
Typical Applications
- Rolling shutters
- Shop shutters
- Roller blinds
- Window roller systems
- Residential shutter automation
- Commercial shutter automation
- Compatible roller door systems
20Nm vs 50Nm 45mm Tubular Motor
| Specification | 45mm 20Nm | 45mm 50Nm |
|---|---|---|
| Motor Diameter | 45 mm | 45 mm |
| Torque | 20 Nm | 50 Nm |
| Voltage | 230V | 230V |
| Power | 238W | 225W |
| Speed | 28 rpm | 12 rpm |
| Duty | S2 4 min | S2 4 min |
| Protection | IP44 | IP44 |
How to Select the Correct Tubular Motor
Before selecting a tubular motor, check the total shutter weight, shutter width and height, roller tube diameter, required torque, available power supply and daily operating frequency.
If replacing an existing motor, compare the old motor's label and dimensions. Matching only the 20 Nm torque is not enough; the tube diameter, adaptors, speed, voltage and mounting arrangement should also be checked.
45mm 20Nm Tubular Motor UAE
We supply 45mm 20Nm rolling shutter tubular motors throughout the UAE for compatible residential and commercial shutter automation systems.
Supply, installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Send the shutter width, height, approximate weight, roller tube size and a photo of the existing motor or shutter shaft so the correct tubular motor can be selected.
