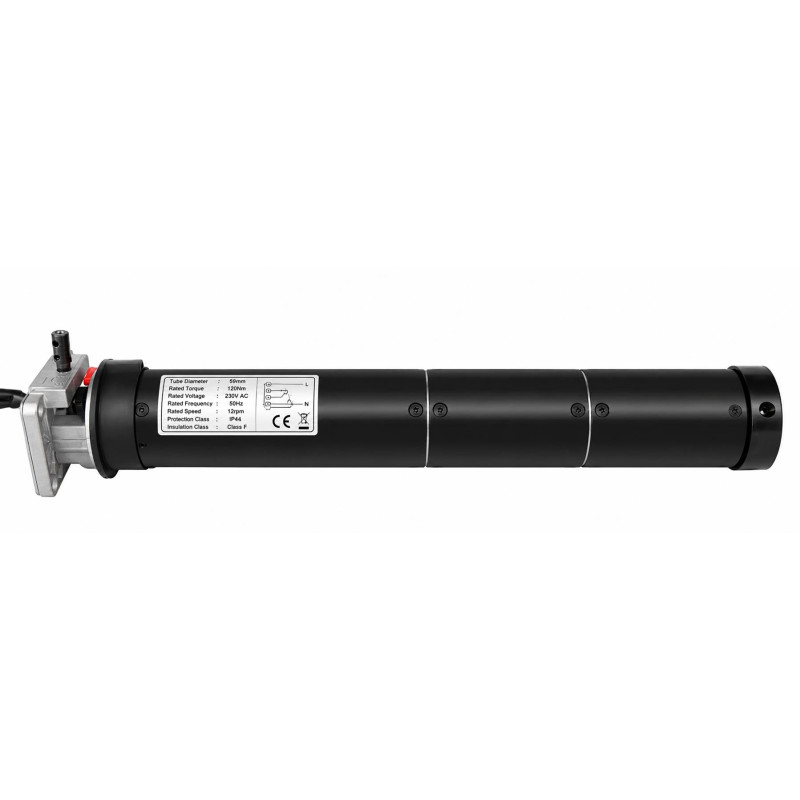

Rolling Shutter Tubular Motor 59mm 140Nm
Price 699 AEDIn Stock
59mm 140Nm Heavy-Duty Rolling Shutter Tubular Motor UAE
59mm 140Nm Rolling Shutter Tubular Motor is a powerful tubular automation motor designed for heavy rolling shutters, commercial roller doors and other compatible shutter systems. With a 59mm motor diameter and powerful 140Nm torque, it provides significantly greater lifting capability than smaller 35mm and 45mm tubular motors.
This heavy-duty tubular motor is installed inside a compatible roller tube, providing a compact and professional shutter automation system without requiring a large external side motor. It is suitable for shops, warehouses, commercial properties and other rolling shutter applications throughout the UAE.
59mm 140Nm Tubular Motor Key Features
- Heavy-duty 59mm tubular motor
- Rated torque: 140Nm
- Designed for heavy rolling shutters
- Compact in-tube motor installation
- Rated voltage: 230V AC
- Frequency: 50Hz
- Rated speed: 10 RPM
- Rated power: 380W
- Rated current: 1.68A
- Running time: S2 4 minutes
- Protection rating: IP44
- Insulation class: Class H
- Built-in thermal protection
- Suitable for external shutter controllers and receivers
- Low-maintenance shutter automation solution
59mm 140Nm Tubular Motor Technical Specifications
| Product Type | Rolling Shutter Tubular Motor |
| Motor Diameter | 59mm |
| Rated Torque | 140Nm |
| Rated Voltage | 230V AC |
| Frequency | 50Hz |
| Rated Power | 380W |
| Rated Current | 1.68A |
| Rated Speed | 10 RPM |
| Running Time | S2 – 4 Minutes |
| Protection Rating | IP44 |
| Insulation Class | Class H |
| Installation Type | Inside Compatible Roller Tube |
| Application | Heavy Rolling Shutters & Roller Doors |
Powerful 140Nm Rolling Shutter Motor
The main advantage of this motor is its powerful 140Nm rated torque. It is intended for larger and heavier shutter systems where lower-torque 35mm or 45mm tubular motors may not provide sufficient capacity.
Motor selection must be based on the complete shutter system rather than torque alone. Shutter dimensions, curtain weight, barrel diameter, guide condition, friction and required safety margin should all be checked before selecting the motor.
59mm Heavy-Duty Tubular Design
The 59mm tubular motor is designed to fit inside a compatible rolling shutter tube. This creates a compact installation because the motor is concealed within the shutter barrel instead of occupying additional space beside the shutter.
The crown adaptor, drive wheel, tube profile and mounting bracket must be correctly matched to the motor and shutter tube before installation.
230V AC Rolling Shutter Motor
This tubular motor operates from a 230V AC 50Hz supply, making it suitable for compatible rolling shutter installations in the UAE.
Professional electrical installation should include the correct isolation, earthing, switching and protection according to the shutter system and site requirements.
10 RPM Controlled Shutter Movement
With a rated speed of approximately 10 RPM, the motor provides controlled movement suitable for heavy rolling shutter applications.
The final opening and closing speed of the shutter also depends on the roller tube diameter and complete shutter construction.
S2 4-Minute Operating Cycle
The motor has an S2 4-minute short-time operating rating. It is designed for normal rolling shutter opening and closing cycles rather than continuous non-stop operation.
The built-in thermal protection helps protect the motor against overheating. If excessive consecutive cycles cause the thermal protection to activate, the motor must be allowed to cool before normal operation resumes.
IP44 Protection & Class H Insulation
The motor features IP44 protection and Class H insulation, providing a robust design for compatible commercial rolling shutter installations.
The motor should still be correctly installed inside a suitable shutter system and protected from direct water ingress and unsuitable environmental conditions.
Rolling Shutter Control Options
Depending on the exact motor version and controller used, the 59mm 140Nm tubular motor can be integrated with compatible shutter control accessories.
- Up / Stop / Down wall switch
- Rolling shutter control panel
- External remote-control receiver
- Wireless shutter remote control
- Wi-Fi shutter controller
- Smart home control module
- Key switch
- Compatible access-control system
59mm 140Nm Tubular Motor Applications
- Commercial rolling shutters
- Shop front shutters
- Warehouse roller shutters
- Heavy-duty roller doors
- Security rolling shutters
- Commercial roller blinds
- Compatible industrial shutter systems
- Large motorized awnings
Choosing the Correct Tubular Motor
Choosing a rolling shutter motor only by shutter width or motor torque can result in incorrect sizing. Before ordering, confirm the shutter dimensions, curtain material, total shutter weight, roller tube diameter, tube profile, guide condition and required operating frequency.
The 59mm 140Nm motor is intended for heavier applications, but the actual supported shutter weight depends on the complete mechanical design and roller diameter. For this reason, a fixed “KG capacity” should not be advertised unless it has been calculated for the specific shutter configuration.
59mm 140Nm Rolling Shutter Tubular Motor UAE
We supply 59mm 140Nm rolling shutter tubular motors throughout the UAE for commercial and heavy-duty shutter automation applications.
Supply, installation, replacement and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Confirm your shutter size, shutter weight, roller tube dimensions, required torque, adaptor profile and control method to ensure the correct tubular motor and accessories are selected.
