Rolling Shutter Tubular Motor Controller 220V

220V Rolling Shutter Tubular Motor Controller UAE

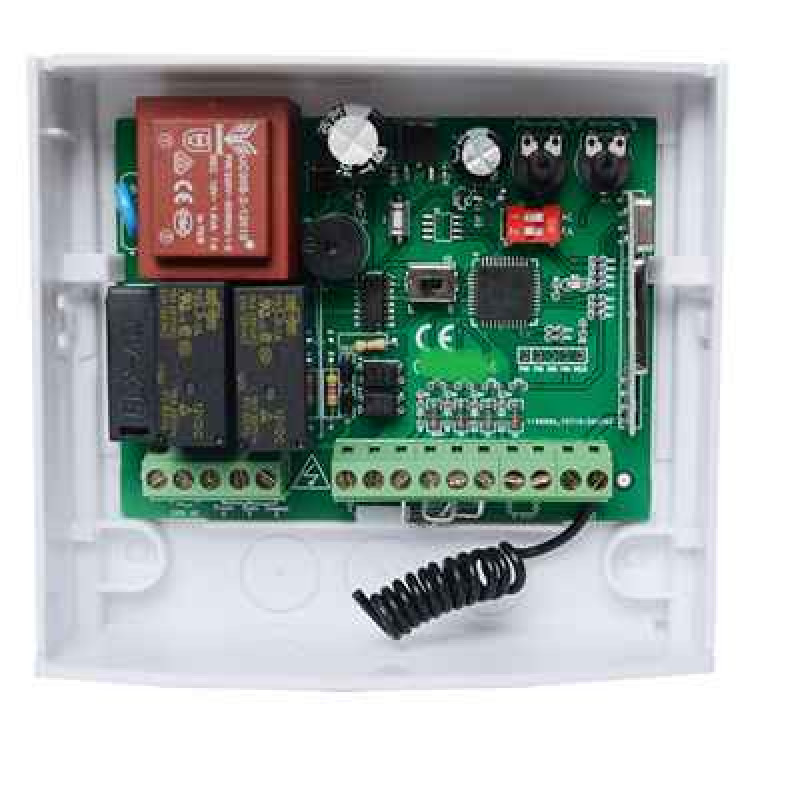

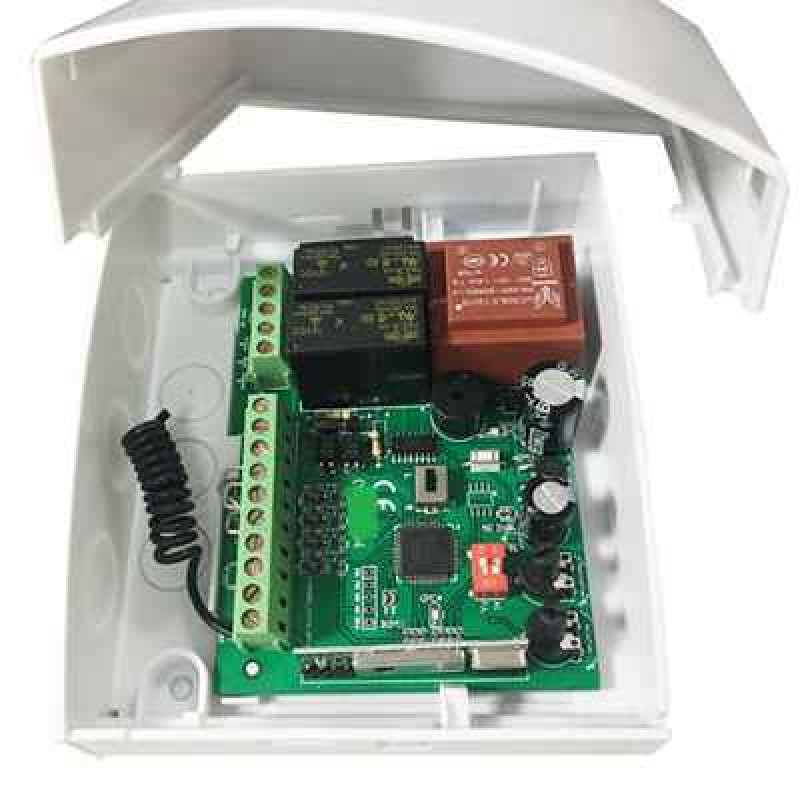

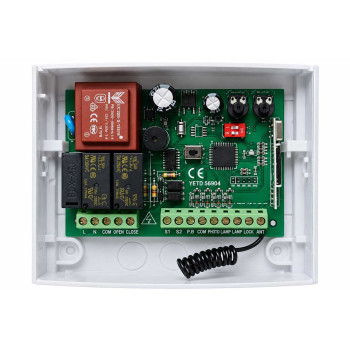

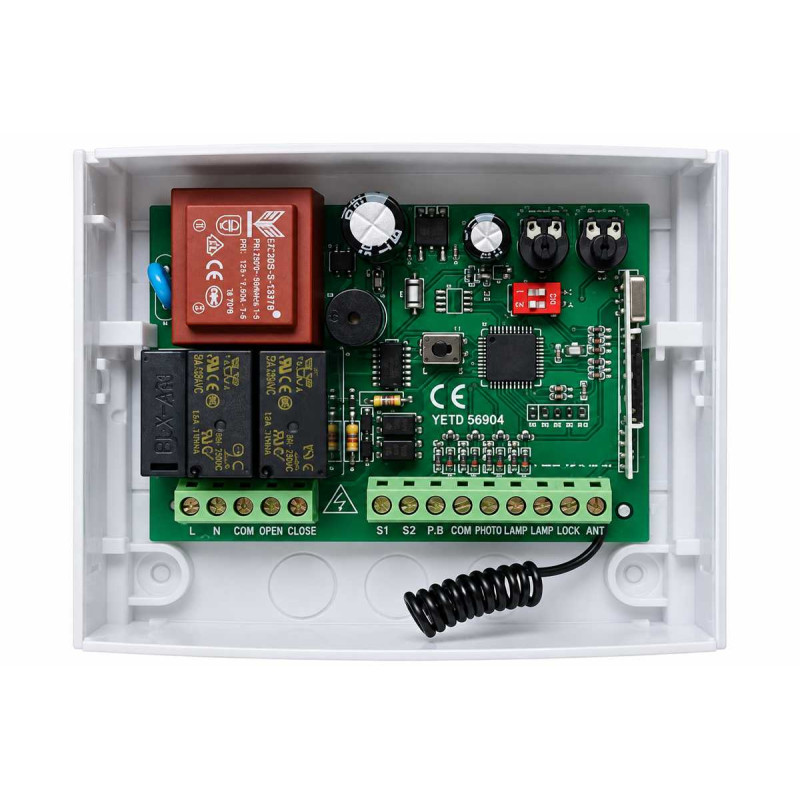

Rolling Shutter Tubular Motor Controller is a professional 220V AC shutter motor control unit designed for compatible electric tubular motors used with roller shutters, garage shutters, shop shutters and automatic roller doors.

The controller combines wired motor control with a built-in 433.92MHz wireless receiver and supports OPEN, STOP and CLOSE operation, adjustable motor running time, automatic closing, photocell safety input and remote-control programming.

Rolling Shutter Tubular Motor Controller Features

• Designed for compatible rolling shutter tubular motors
• Working voltage: 220V AC
• Motor output: 220V AC
• Wireless frequency: 433.92MHz
• Compatible remote type: 433MHz 1527
• Remote memory: up to 30 remote controls
• OPEN / STOP / CLOSE control
• Automatic closing function
• Adjustable auto-close delay: 5–120 seconds
• Adjustable motor running time: 0–120 seconds
• Maximum motor running time: 120 seconds
• Photocell safety sensor input
• Obstacle / resistance response function
• Over-current detection function
• Limit switch support
• Manual wall-switch compatibility
• +12V DC accessory output
• DIP-switch programmable functions

Technical Specifications

433.92MHz Rolling Shutter Remote Controller

The controller includes a 433.92MHz wireless receiver for convenient remote operation of compatible tubular rolling shutter motors. It can store up to 30 compatible remote controls, making it suitable for homes, shops, garages, warehouses and commercial shutter installations.

Users can operate the shutter remotely using OPEN, STOP and CLOSE commands without needing to use the wired wall switch.

Adjustable Automatic Closing

An adjustable automatic closing delay from 5 to 120 seconds allows the shutter to close automatically after a programmed period when the function is enabled.

The auto-close function can be enabled or disabled using the controller's DIP-switch configuration, allowing the system to be adapted to different installation requirements.

Adjustable Motor Running Time

The tubular motor running or journey time can be configured from 0 to 120 seconds. This allows the controller to limit how long the motor remains energized during an opening or closing command.

Correct running-time configuration should be matched to the actual travel time of the installed shutter.

Photocell Safety Sensor Input

The controller supports connection of a compatible photocell safety sensor. When properly wired and programmed, the photocell can detect an obstruction across the shutter opening and trigger the configured safety response.

Photocells are especially recommended for automatic closing applications where additional obstacle detection is required.

Manual Wall Switch Control

In addition to wireless remote controls, the controller supports a compatible manual wall switch or push-button input. This provides local control of the rolling shutter when a remote control is unavailable.

The controller can therefore provide both wireless and wired operation from one control system.

Compatible Tubular Motor Applications

• Rolling shutter tubular motors
• Electric roller shutters
• Shop rolling shutters
• Garage roller shutters
• Commercial roller doors
• Window shutters
• Warehouse shutters
• Automatic roller doors

Compatible Tubular Motor Sizes

This controller may be suitable for different 220–230V AC tubular motors, including motors used with 35mm, 45mm, 59mm and 92mm tubular systems, provided the motor's electrical requirements and wiring are compatible with the controller.

Important: Tube diameter or motor torque alone does not confirm controller compatibility. Always verify the motor voltage, current, wiring configuration, limit-switch system and controller output rating before installation.

Tubular Motor Controller vs Side Motor Controller

This product is intended primarily for compatible tubular rolling shutter motors. Do not assume that it can replace a controller designed for a chain-type side motor or another rolling shutter motor configuration.

Side motors, central motors and tubular motors can use different wiring, current ratings and control systems. Confirm the motor type before ordering a replacement controller.

Rolling Shutter Tubular Motor Controller UAE

We supply rolling shutter tubular motor controllers throughout the UAE for residential, commercial and industrial roller shutter automation applications.

Supply, installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Send the tubular motor label, voltage, wattage or current rating, wiring details and a photo of the existing controller so compatibility can be checked before replacement.
