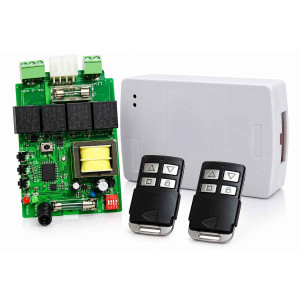

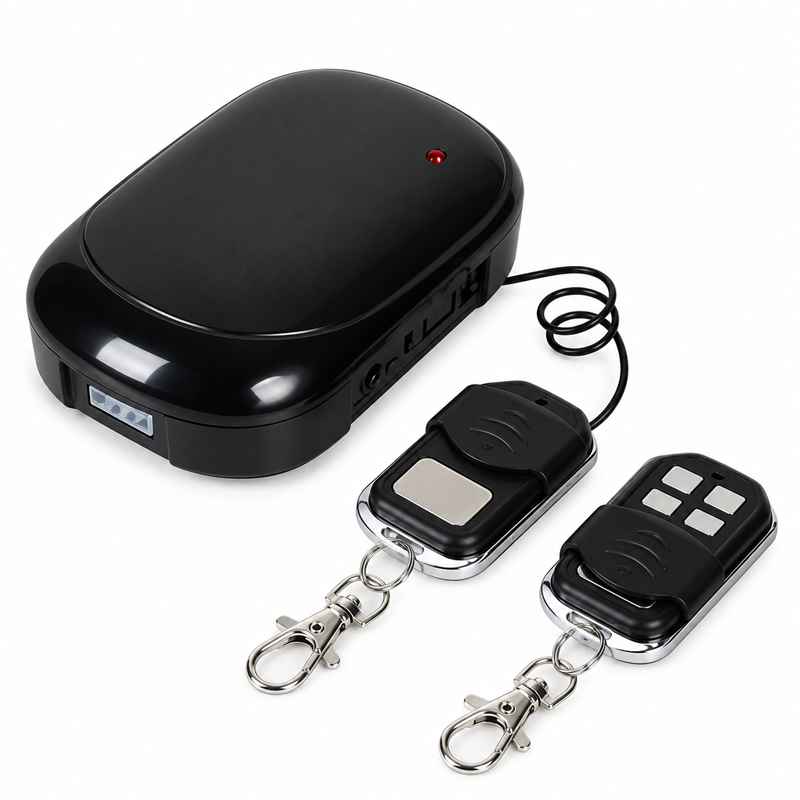

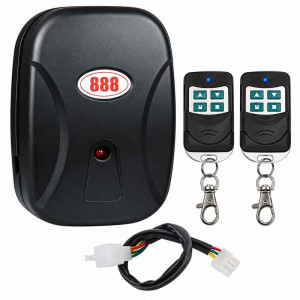

Rolling Shutter Remote Receiver Controller 220V
Price 299 AEDIn Stock
Rolling Shutter Remote Receiver Controller 220V UAE
The Rolling Shutter Remote Receiver Controller is a wireless control solution for compatible automatic rolling shutter and roller door motors. It allows the shutter to be conveniently operated using compatible wireless remote controls with OPEN, STOP and CLOSE commands.
The receiver operates from a 220V AC power supply and is designed for compatible AC single-phase rolling shutter motors. Depending on the supplied version, the receiver is available for 315MHz or 433.92MHz wireless remote-control systems and has a contact rating of up to 220V / 10A.
Rolling Shutter Receiver Key Features
- Wireless rolling shutter remote receiver controller
- Working voltage: 220V AC
- For compatible AC single-phase shutter motors
- OPEN / STOP / CLOSE remote operation
- Available in 315MHz / 433.92MHz configurations
- Contact rating: 220V / 10A
- Supports compatible wireless remote transmitters
- Manual and wireless remote-control operation
- Compact receiver control box
- Suitable for new and replacement installations
- Suitable for shops, garages and warehouses
- Suitable for commercial rolling shutter doors
Rolling Shutter Receiver Technical Specifications
| Product Type | Rolling Shutter Remote Receiver Controller |
| Working Voltage | 220V AC |
| Motor Compatibility | Compatible AC Single-Phase Rolling Shutter Motors |
| Wireless Frequency | 315MHz / 433.92MHz – Depending on Version |
| Contact Rating | 220V / 10A |
| Commands | OPEN / STOP / CLOSE |
| Control Method | Manual + Wireless Remote Control |
| Receiver Dimensions | 102 × 80 × 35 mm |
| Receiver Weight | Approx. 217 g |
| Operating Temperature | -10°C to +70°C |
| Remote Range | Approx. 50 m or more under suitable open conditions |
| Application | Automatic Rolling Shutter / Roller Door Control |
433.92MHz Rolling Shutter Receiver
The 433.92MHz rolling shutter receiver allows compatible wireless transmitters to control the shutter motor remotely. Users can conveniently open the shutter, stop it at the required position and close it using a compatible remote control.
Before purchasing a replacement receiver, always confirm the frequency and remote coding system. A 433.92MHz transmitter cannot automatically operate a receiver designed for 315MHz, and matching frequency alone does not guarantee coding compatibility.
220V Rolling Shutter Motor Controller
The receiver operates from a 220V AC electrical supply and is designed for compatible single-phase AC rolling shutter motors. It provides the switching interface required to control the motor in opening and closing directions.
The motor voltage, current consumption, wiring configuration and control method should be checked before installation.
10A Rolling Shutter Receiver
The receiver control box is specified with a contact rating of up to 220V / 10A. The connected rolling shutter motor must remain within the electrical capacity of the receiver and complete control system.
For large industrial shutter motors or motors exceeding the receiver's switching capacity, a suitable contactor-based control system should be used instead of connecting the motor directly to the receiver.

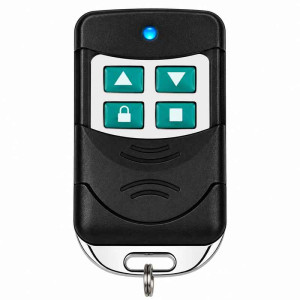

OPEN / STOP / CLOSE Remote Control
The receiver provides convenient OPEN, STOP and CLOSE control for compatible automatic rolling shutters. This allows users to operate the shutter remotely without relying only on a wall-mounted switch.
This functionality is particularly useful for shops, garages, warehouses, workshops and commercial roller doors where convenient wireless access is required.
Rolling Shutter Receiver Replacement
This controller can be used as a replacement receiver for a compatible existing rolling shutter system. Before replacing an old receiver, check the existing system's motor voltage, motor current, wireless frequency, remote coding type and wiring configuration.
If you want to continue using existing remote controls, their frequency and coding system must also be compatible with the replacement receiver.
Rolling Shutter Receiver Applications
- Automatic rolling shutter doors
- Shop rolling shutters
- Garage roller shutters
- Warehouse shutter doors
- Workshop rolling shutters
- Commercial roller doors
- Compatible side rolling shutter motors
- Compatible single-phase shutter motors
- Replacement shutter receiver systems
Rolling Shutter Receiver Installation
Professional installation is recommended because the receiver operates with 220V AC mains voltage. Correct connections are required for mains input, motor common, opening direction, closing direction and any external manual controls.
The motor direction should be tested after installation. If OPEN and CLOSE operate in the opposite direction, the wiring or controller direction setting should be corrected according to the receiver and motor instructions.
Rolling Shutter Remote Receiver UAE
We supply rolling shutter remote receivers and shutter motor controllers throughout the UAE for compatible automatic rolling shutter and roller door systems.
Supply, installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Confirm your shutter motor voltage, motor current, wiring, required wireless frequency and existing remote-control type to ensure receiver compatibility.
