Rolling Shutter Side Motor 1500 KG – Heavy Duty Industrial

1500 KG Heavy Duty Industrial Rolling Shutter Side Motor UAE

Rolling Shutter Side Motor 1500 KG is a heavy-duty automatic shutter motor designed for large commercial and industrial rolling shutter doors. With a maximum lifting capacity of up to 1500 KG and an 800W motor, it provides a powerful automation solution for warehouses, factories, workshops, commercial buildings and industrial entrances.

The motor is supplied as a complete shutter automation package with heavy-duty mounting components, controller and 2 remote controls, making it suitable for new rolling shutter installations and compatible replacement projects across the UAE.

1500 KG Rolling Shutter Motor Key Features

• Maximum lifting capacity: 1500 KG
• Motor power: 800W
• Heavy-duty side-mounted rolling shutter motor
• Designed for large commercial and industrial shutters
• 3 × 8-inch circular disks
• 4 relays
• Heavy-duty reinforced mounting plates
• 45 × 200 mm shaft
• Controller included
• 2 remote controls included
• Manual operation provision for power failure
• Suitable for warehouse and factory shutter automation

Rolling Shutter Side Motor 1500 KG Technical Specifications

Heavy Duty 1500 KG Shutter Motor

The 1500 KG rolling shutter motor is designed for applications where a smaller commercial shutter motor does not provide sufficient lifting capacity. Its heavy-duty construction makes it suitable for large shutters installed at industrial and commercial properties.

The motor is side-mounted to the rolling shutter mechanism and works with the shutter shaft and supporting hardware to provide powered opening and closing.

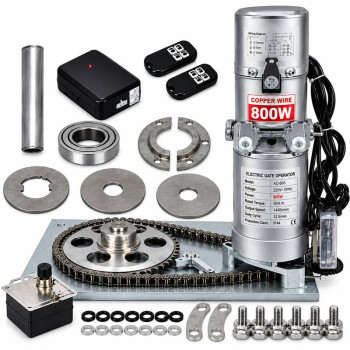

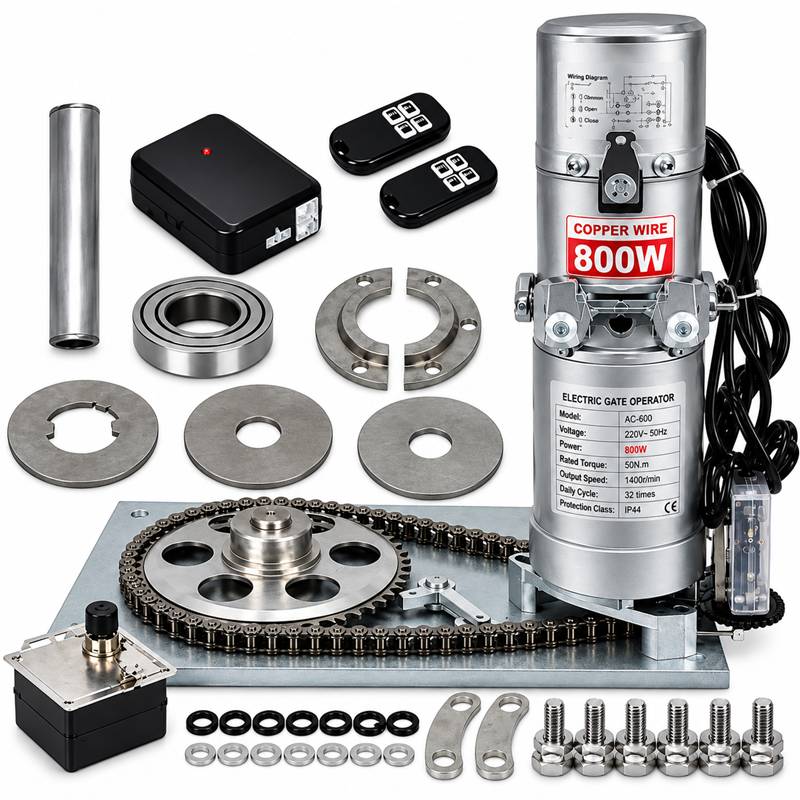

1500 KG Rolling Shutter Motor Package Includes

• 1 × Rolling Shutter Side Motor 1500 KG
• 3 × 8-Inch Circular Disks
• 1 × 755 × 400 × 5 mm Mounting Plate
• 1 × 400 × 400 × 5 mm Mounting Plate
• 1 × 45 × 200 mm Shaft
• 1 × Rolling Shutter Motor Controller
• 2 × Remote Controls
• Installation accessories

Industrial Rolling Shutter Motor Applications

This heavy-duty side motor is suitable for a wide range of large rolling shutter applications, including:

• Warehouse rolling shutters
• Factory shutter doors
• Industrial entrances
• Commercial rolling shutters
• Large shop shutters
• Workshop entrances
• Storage facilities
• Loading and service entrances
• Logistics facilities
• Heavy-duty roller shutter doors

How to Select a 1500 KG Rolling Shutter Motor

A rolling shutter motor should not be selected only by the shutter width. The correct motor depends on the total shutter weight, shutter dimensions, shaft arrangement, drum size, power supply and expected operating frequency.

The stated 1500 KG capacity is the motor's maximum lifting-capacity classification and should not be treated as a recommendation to operate every installation continuously at the maximum load. Correct engineering and an appropriate safety margin are recommended.

1500 KG vs 1000 KG Rolling Shutter Motor

For larger and heavier industrial shutters, the 1500 KG side motor provides a higher lifting-capacity class than a 1000 KG shutter motor. The correct model should be chosen after confirming the actual shutter weight and mechanical configuration.

1500 KG vs 2000 KG Rolling Shutter Motor

For exceptionally large or heavier industrial shutters, a 2000 KG rolling shutter side motor may be more appropriate. Motor selection should be based on the complete shutter system rather than simply choosing the highest available capacity.

Rolling Shutter Side Motor 1500 KG UAE

We supply 1500 KG heavy-duty rolling shutter side motors in the UAE for commercial and industrial shutter automation projects.

Supply and professional installation support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before ordering: Send the shutter width, height, approximate weight, shaft dimensions, power supply and site photos so the correct rolling shutter motor can be selected.
