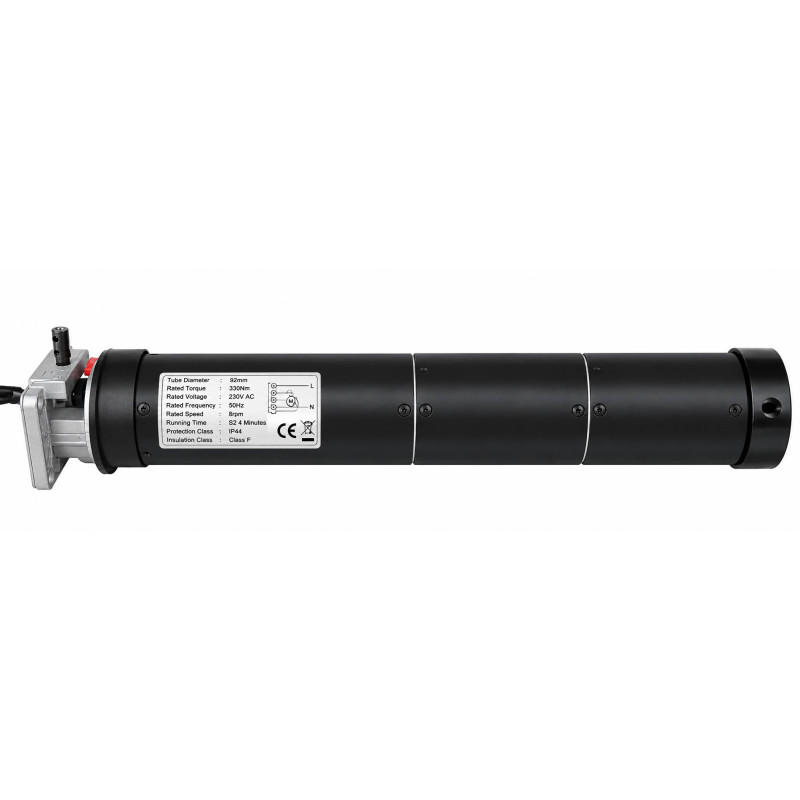

Rolling Shutter Tubular Motor 92mm 230Nm

92mm 230Nm Heavy-Duty Rolling Shutter Tubular Motor UAE

Rolling Shutter Tubular Motor 92mm 230Nm is a powerful electric tubular motor designed for compatible commercial and industrial rolling shutters, roller doors and automatic shutter systems. Featuring a 92mm tube diameter and strong 230Nm rated torque, the motor provides a compact drive solution for larger rolling shutter applications requiring increased operating torque.

The motor operates on a 230V AC, 50Hz power supply and delivers 870W rated power with a rated current of 3.80A. Its 12 RPM operating speed provides controlled shutter opening and closing, while IP44 protection and Class H insulation support reliable commercial shutter automation.

92mm 230Nm Tubular Motor Key Features

• Heavy-duty rolling shutter tubular motor
• Tube diameter: 92mm
• Rated torque: 230Nm
• Rated voltage: 230V AC
• Rated frequency: 50Hz
• Rated power input: 870W
• Rated current: 3.80A
• Rated speed: 12 RPM
• Running time: S2 4 minutes
• Protection rating: IP44
• Insulation class: Class H
• Compact installation inside a compatible roller tube
• Suitable for commercial and industrial rolling shutters
• Suitable for new installations and compatible replacement projects

Technical Specifications

Powerful 230Nm Rolling Shutter Motor

With 230Nm rated torque, this tubular motor provides increased operating force for compatible larger rolling shutters. It sits above lower-torque 92mm models such as the 170Nm version and is suitable where additional torque is required.

The correct motor must be selected according to the complete shutter design rather than torque alone. Shutter weight, curtain diameter, shaft or roller tube size, shutter height, friction and operating frequency should all be considered.

Heavy-Duty 92mm Tubular Design

The 92mm tubular construction allows the motor to be installed inside a compatible roller tube or shutter shaft. This provides a compact installation compared with externally mounted rolling shutter drive systems.

Before replacing an existing motor, confirm the actual tube dimensions, motor adaptor, crown, drive wheel and mounting arrangement.

870W 230V AC Motor

The motor operates from a standard 230V AC 50Hz electrical supply with 870W rated power and approximately 3.80A rated current.

The electrical installation should include suitable protection and should be completed according to the motor wiring requirements and local electrical standards.

12 RPM Operating Speed

The tubular motor has a rated speed of 12 RPM, providing controlled opening and closing of compatible rolling shutter systems.

The actual linear shutter opening speed depends on the effective roller or barrel diameter and the shutter configuration.

S2 4-Minute Duty Rating

The motor has an S2 4-minute short-time duty rating. This means it is designed for normal shutter opening and closing cycles rather than continuous uninterrupted operation.

The motor should be allowed sufficient cooling time if repeated operation causes thermal protection to activate.

IP44 Protection & Class H Insulation

The motor is rated IP44 and uses Class H insulation. These specifications provide additional electrical and environmental protection for suitable rolling shutter installations.

IP44 does not mean the motor is waterproof. The installation should protect the motor, wiring and electrical connections from direct water exposure and unsuitable environmental conditions.

Applications

• Commercial rolling shutters
• Shop security shutters
• Warehouse roller shutters
• Factory roller doors
• Workshop shutters
• Industrial roller shutters
• Storage facility shutters
• Commercial building shutters
• Compatible heavy roller door systems

Choosing the Correct Tubular Motor

Do not select a tubular motor based only on the shutter width. The required motor torque depends on several factors including the total shutter weight, shutter height, curtain material, roller diameter, shaft configuration, friction and operating frequency.

If replacing an existing tubular motor, check the old motor label and confirm its diameter, torque, voltage, speed and mounting arrangement before ordering.

92mm Tubular Motor Torque Options

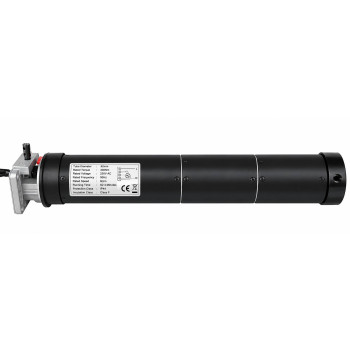

Rolling Shutter Tubular Motor 92mm 230Nm UAE

We supply 92mm 230Nm rolling shutter tubular motors throughout the UAE for compatible commercial and industrial shutter automation applications.

Supply, replacement, installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Send the existing motor label, shutter width and height, approximate shutter weight and roller tube dimensions so the correct tubular motor can be confirmed.
