Tubular Motor 35mm 10 Nm for Rolling Shutters
Price 299 AEDIn Stock

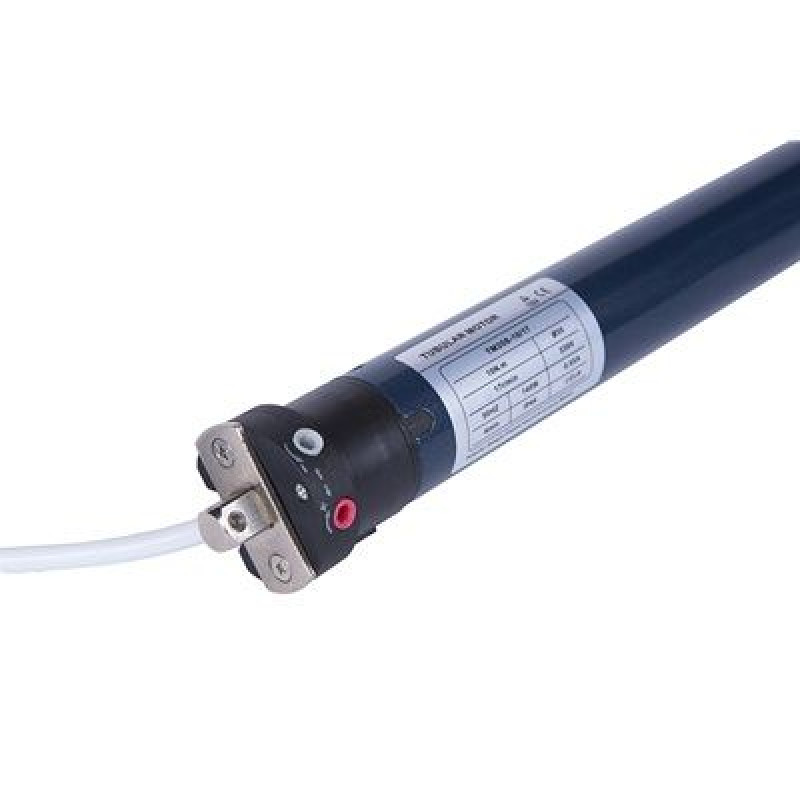

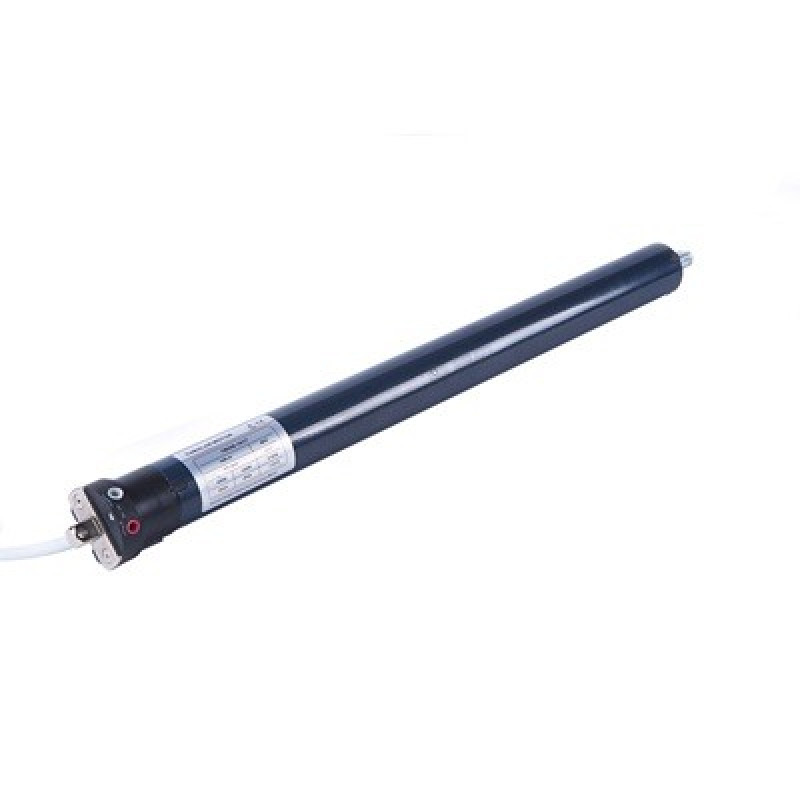

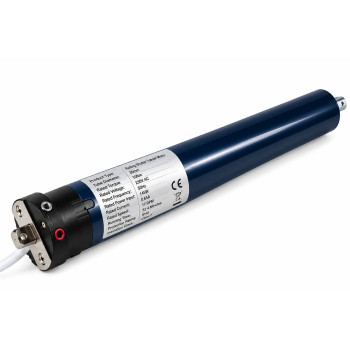

35mm 10 Nm Tubular Motor for Rolling Shutters UAE
This 35mm 10 Nm tubular motor is a compact electric motor designed for compatible rolling shutters, roller blinds, small roller doors and similar tubular automation applications. The motor fits inside a compatible roller tube, providing a clean and space-saving automation solution.
Operating from a 230V AC 50Hz power supply, this tubular motor delivers 10 Nm rated torque at approximately 17 rpm. It has a rated input power of 145W, rated current of 0.65A, IP44 protection and Class F insulation.
35mm 10 Nm Tubular Motor Key Features
- Compact 35mm tubular motor
- Rated torque: 10 Nm
- Rated voltage: 230V AC
- Rated frequency: 50Hz
- Rated power input: 145W
- Rated current: 0.65A
- Rated speed: 17 rpm
- Operating duty: S2 4 minutes
- Protection rating: IP44
- Insulation class: Class F
- Compact in-tube installation
- Suitable for compatible rolling shutters and roller blind systems

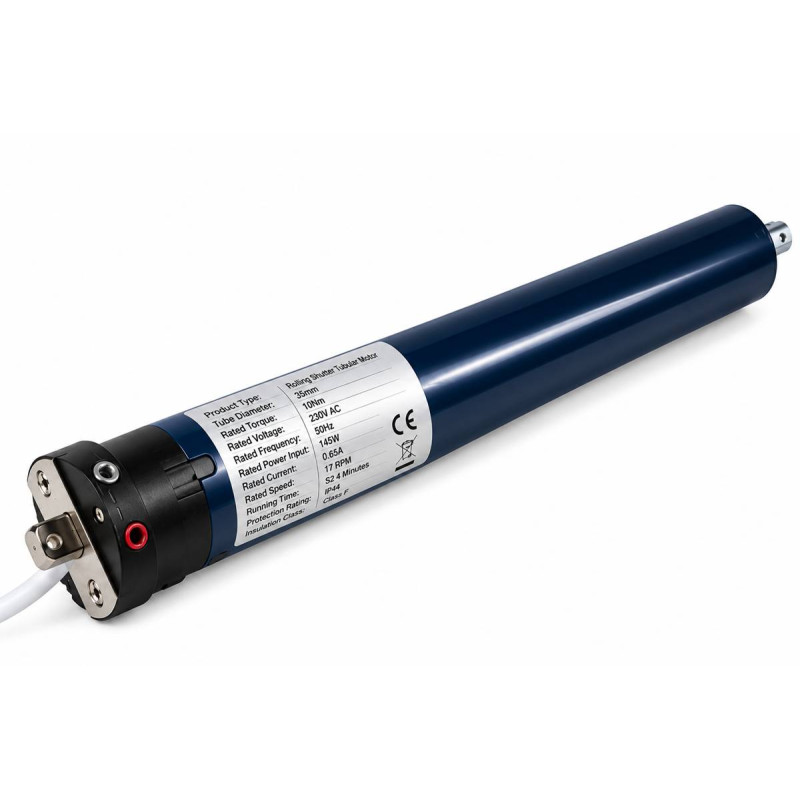

35mm 10 Nm Tubular Motor Technical Specifications
| Product Type | Rolling Shutter Tubular Motor |
| Tube Diameter | 35 mm |
| Rated Torque | 10 Nm |
| Rated Voltage | 230V AC |
| Rated Frequency | 50Hz |
| Rated Power Input | 145W |
| Rated Current | 0.65A |
| Rated Speed | 17 rpm |
| Running Time | S2 – 4 Minutes |
| Protection Rating | IP44 |
| Insulation Class | Class F |
Compact 35mm Tubular Motor
The motor's 35mm tubular design allows it to be installed inside a compatible roller tube or shaft. This provides a compact automation system without requiring a large external side-mounted motor.
The actual roller tube, crown, drive adapter and mounting bracket must be compatible with the motor and shutter system.
10 Nm Rated Torque
This model provides 10 Nm of rated torque and is intended for suitable lightweight shutter and roller applications. Correct motor selection must be based on the shutter dimensions, total curtain weight, roller diameter and mechanical arrangement.
Do not select a tubular motor based only on an estimated shutter weight. The required torque changes according to the roller diameter and shutter geometry.
17 RPM Operating Speed
The tubular motor operates at approximately 17 rpm. The actual opening and closing speed of the shutter depends on the roller tube diameter and the installed shutter configuration.
230V AC Rolling Shutter Motor
The motor operates from a 230V AC 50Hz electrical supply, making it suitable for compatible UAE rolling shutter installations.
Electrical installation should include appropriate isolation and protection and should be carried out according to the motor wiring requirements and local electrical standards.
S2 4-Minute Duty Rating
This motor has an S2 4-minute short-time duty rating. This means it is designed for intermittent shutter operation rather than continuous running.
If the motor is operated repeatedly for an extended period, its thermal protection may require the motor to cool before further operation.
Rolling Shutter Limit Adjustment
Compatible tubular motors use opening and closing limit adjustment to define the required upper and lower stopping positions of the shutter. These limits must be correctly set during installation to prevent unnecessary mechanical stress on the motor and shutter.
Compatible Control Options
Depending on the motor wiring and selected controller, a tubular shutter motor can be operated using compatible control accessories such as:
- OPEN / STOP / CLOSE wall switch
- Rolling shutter motor controller
- Wireless remote control receiver
- Rolling shutter remote controls
- Compatible Wi-Fi shutter controller
- Smart automation controller
35mm 10 Nm Tubular Motor Applications
- Compatible lightweight rolling shutters
- Roller blinds
- Motorized roller systems
- Small shop shutter applications
- Residential roller shutter systems
- Compatible automatic roller doors
How to Select the Correct Tubular Motor
Before ordering a tubular motor, confirm the roller tube diameter, shutter width, shutter height, approximate curtain weight, required torque, motor diameter and power supply.
A 10 Nm motor is not automatically suitable for every shutter simply because the motor physically fits inside the tube. Correct torque calculation is important for reliable operation and motor life.
Other Tubular Motor Sizes Available
For larger rolling shutters requiring more torque, higher-capacity tubular motors are available. Our UAE tubular motor range includes:
- 35mm – 10 Nm
- 45mm – 20 Nm
- 45mm – 50 Nm

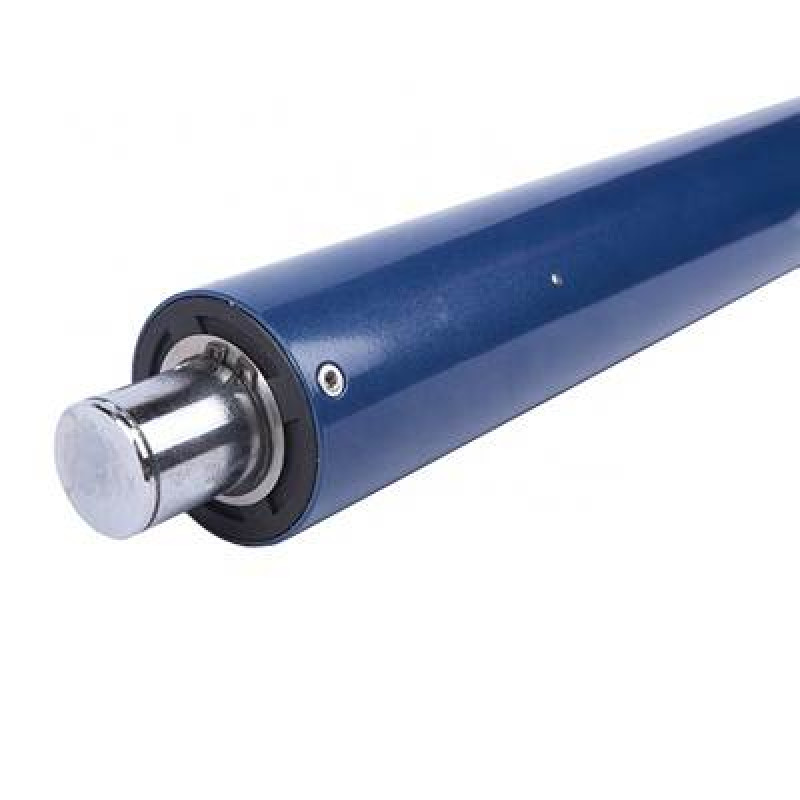

- 59mm – 140 Nm
- 92mm – 170 Nm
- 92mm – 230 Nm
- 92mm – 330 Nm
- 92mm – 450 Nm
- 92mm – 550 Nm
35mm 10 Nm Tubular Motor UAE
We supply 35mm 10 Nm rolling shutter tubular motors throughout the UAE for compatible residential and commercial roller shutter automation applications.
Product supply, installation support and technical assistance are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Send the roller tube size, shutter width and height, approximate shutter weight and a photo of the existing motor or shutter system so the correct tubular motor can be selected.
