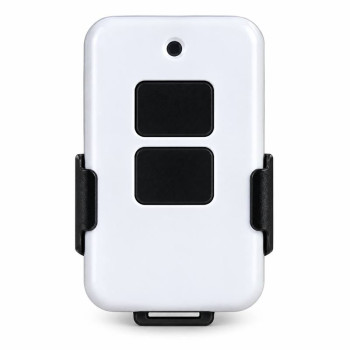

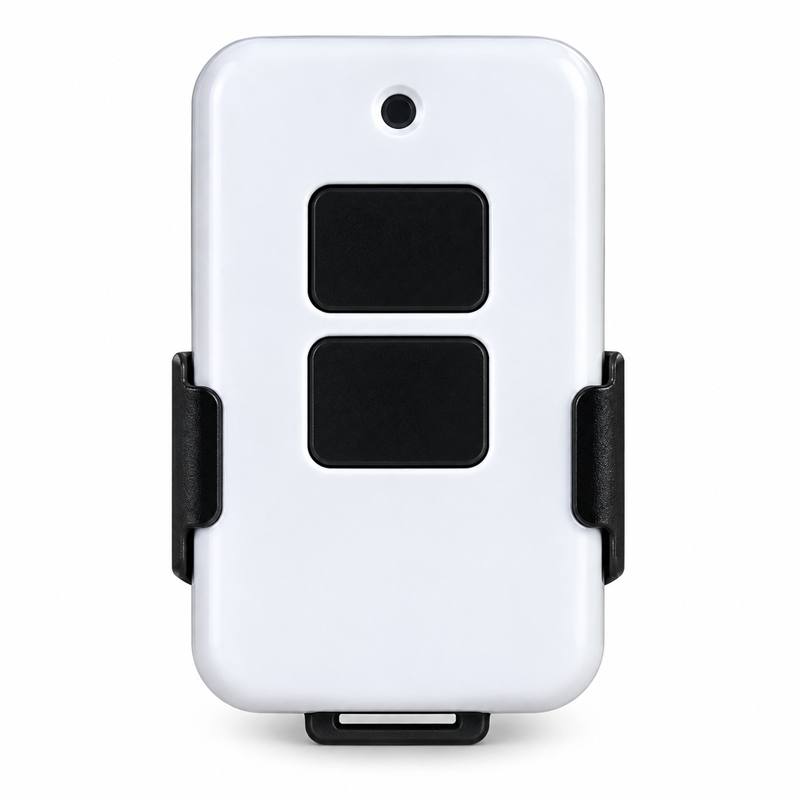

ACM TX2/V Gate & Rolling Shutter Remote Control

ACM TX2/V 433.92 MHz Rolling Code Remote Control UAE

ACM TX2/V is a genuine 2-channel rolling-code remote control designed for compatible ACM rolling shutter and automation control systems. Operating at 433.92 MHz, this compact transmitter provides secure and convenient wireless control for compatible ACM motorized shutters.

The TX2/V features an ultra-slim 9.8 mm design, two control buttons, a CR2032 3V lithium battery and an open-field radio range of up to approximately 300 metres under ideal conditions.

ACM TX2/V Remote Control Characteristics

• Genuine ACM remote control
• Model: TX2/V
• ACM product code: 10V459
• 2-channel transmitter
• 433.92 MHz frequency
• Rolling-code radio transmission
• 2 control buttons
• Up to 300 m open-field range
• CR2032 3V lithium battery
• Maximum consumption below 10 mA
• Ultra-slim 9.8 mm design
• Compact ergonomic transmitter
• Suitable for compatible ACM control systems
• Compatible with ACM UNIVERSAL control unit

ACM TX2/V Technical Specifications

433.92 MHz Rolling Code Technology

The ACM TX2/V operates at 433.92 MHz using rolling-code radio transmission. Rolling-code technology changes the transmitted code during operation, providing a more secure radio-control system than traditional fixed-code transmitters.

2-Channel ACM Remote Control

The TX2/V provides 2 radio channels, allowing compatible ACM automation functions or receivers to be controlled from one compact transmitter. The exact function assigned to each button depends on the connected ACM control unit and its programming.

Up to 300 Metres Open-Field Range

ACM specifies an open-field radio range of up to approximately 300 metres for the TX2/V. Actual operating range can be lower depending on walls, metal structures, electrical interference, receiver antenna position and installation conditions.

Ultra-Slim 9.8 mm Design

With dimensions of approximately 32.4 × 63.2 × 9.8 mm, the ACM TX2/V is compact and easy to carry. Its slim ergonomic design makes it suitable for everyday rolling shutter operation.

CR2032 3V Lithium Battery

The TX2/V is powered by a commonly available CR2032 3V lithium battery. ACM specifies maximum transmitter consumption below 10 mA.

Compatible with ACM UNIVERSAL Control Unit

The ACM TX2/V remote control is compatible with suitable ACM radio-control systems including the ACM UNIVERSAL rolling shutter control unit. ACM's UNIVERSAL 2 controller operates at 433.92 MHz and supports radio-transmitter programming.

Compatibility should still be confirmed before replacing an existing remote. The same frequency alone does not guarantee compatibility between different radio systems.

ACM Remote for Automatic Rolling Shutters

The TX2/V is suitable for compatible automatic rolling shutters used in shops, garages, warehouses, showrooms and commercial properties. When paired with the appropriate ACM receiver or control unit, it provides convenient wireless shutter operation.

Replacement ACM Remote Control

When purchasing the TX2/V as a replacement remote, check the model of the existing transmitter and the installed receiver or control unit. For an existing ACM installation, a clear photo of the old remote and control-board label can help confirm compatibility.

A new replacement transmitter normally requires programming into the existing receiver before it can operate the shutter.

ACM TX2/V Remote Control Supply & Programming UAE

We supply ACM TX2/V 433.92 MHz rolling-code remote controls throughout the UAE for compatible ACM rolling shutter and automation systems.

Remote supply, replacement and programming support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

For replacement remote compatibility, provide a clear photo of the existing ACM remote and the receiver or control-board model before ordering.
