Multifunction Keypad Fingerprint Access Control in UAE

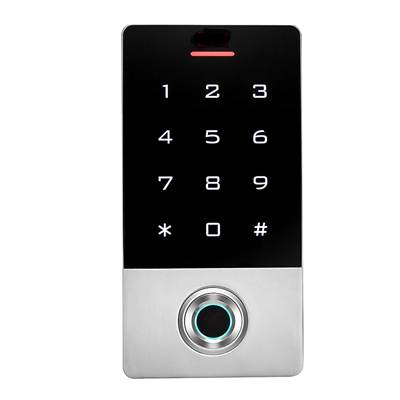

Multifunction Keypad Fingerprint Access Control Reader
Features
Fingerprint Access Control
Read 125KHz EM Card and HID Card (Optional)
Read 13.56MHz Mifare card and CPU card (Optional)
Touch backlight keypad
Contain reader mode, the transmission format could be adjusted by user.
Support admin add card and admin delete card
10,000 card/pin users and 600 fingerprint users.
Technical Specifications
Operating Voltage: DC 12-24V
Standby Current: ≤35mA
Operating Current: ≤100mA
Operating Temperature: -40℃~60℃
Operating Humidity: 0%~95%
Access ways: Fingerprint, card, code, or multiple combination methods,Mobile APP
Wiring
Colour | Function | Description |
Green | D0 | WG output D0 |
White | D1 | WG output D1 |
Yellow | OPEN | Exit button one end(the other end connected GND) |
Red | 12V+ | 12V + DC Regulated Power Input |
Black | GND | 12V - DC Regulated Power Input |
Blue | NO | Relay normally-on end(Connect positive electric lock "-") |
Purple | COM | Relay Public end, connect GND |
Orange | NC | Relay Public end, connect NC |
