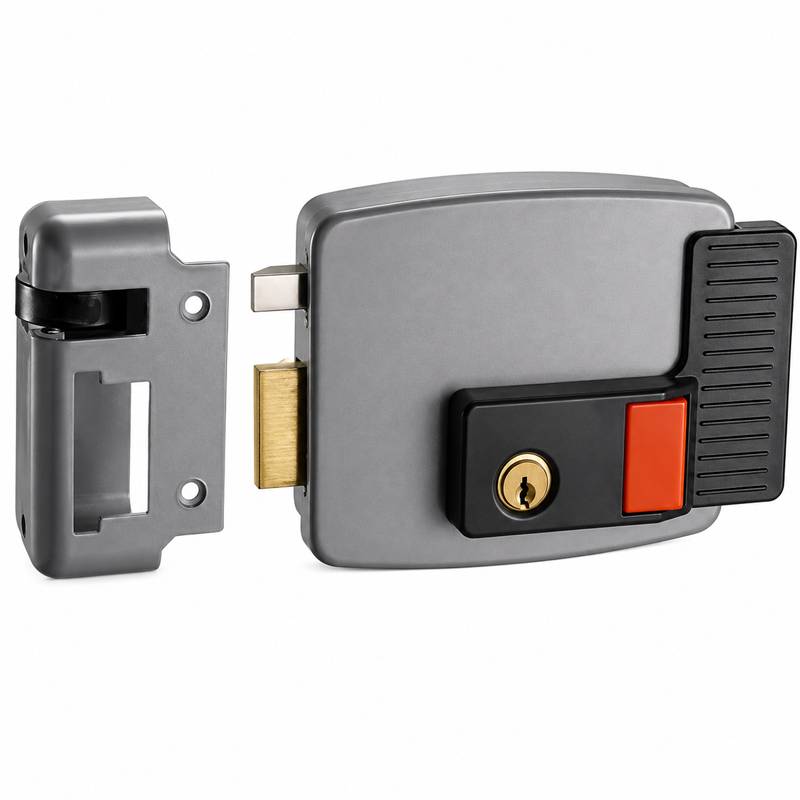

Electric Rim Lock for Automatic Gates
Price 150 AEDIn Stock
Electric Rim Lock for Automatic Gates – Left & Right Options UAE
Electric Rim Lock for Gates is a heavy-duty electrically operated locking solution for iron gates, pedestrian gates, metal doors and access control systems. Available in both Left-Hand and Right-Hand versions, the lock can be selected according to the gate hinge position, opening direction and installation side.
The electric rim lock operates from a 12V electrical supply and provides secure electrical unlocking through compatible access control equipment. It can also be opened manually from outside using a key and from inside using the integrated release button.
Electric Rim Lock Key Features
- Heavy-duty electric rim lock for gates and doors
- Left-Hand and Right-Hand versions available
- Operating voltage: 12V
- Current consumption: approximately 2.5A
- Backset / inlet: 70 mm
- Outer cylinder length: 55 mm
- External opening using mechanical key
- Internal opening using integrated push button
- Remote electrical unlocking
- Compatible with access control systems
- Self-locking security mechanism
- Anti-vibration opening protection
- Day Stop / free-access function
- Adjustable closing pressure
- Self-lubricating nylon roller
- Stainless steel latch components
- Galvanized / zinc-coated steel housing
- Protective cover for gate installation
Electric Rim Lock Technical Specifications
| Product Type | Electric Rim Lock / Electric Gate Lock |
| Installation Direction | Left-Hand / Right-Hand |
| Operating Voltage | 12V |
| Current Consumption | Approx. 2.5A |
| Backset / Inlet | 70 mm |
| Outer Cylinder Length | 55 mm |
| External Unlocking | Mechanical Key |
| Internal Unlocking | Integrated Push Button |
| Remote Unlocking | Electrical Release / Access Control |
| Housing | Zinc-Coated / Galvanized Steel |
| Suitable For | Iron Gates, Metal Gates, Pedestrian Gates & Doors |
Left-Hand & Right-Hand Electric Rim Lock
This electric gate lock is available in two installation directions: Left-Hand and Right-Hand. The correct version depends on the gate hinge position, opening direction and the side where the lock will be mounted.
Please confirm Left or Right version before ordering. If you are unsure, send a photo of the gate showing the hinges and opening direction so the correct lock can be selected.
12V Electric Gate Lock
The electric rim lock operates using a 12V electrical supply and can be connected to compatible gate automation and access control equipment for remote unlocking.
It provides a practical solution for properties requiring both traditional key access and electronic access control.
Key, Push Button & Remote Unlocking
The lock provides several convenient methods of access. From outside, the gate can be opened mechanically using the supplied key. From inside, the integrated push button can be used for convenient manual release.
The lock can also be electrically released by compatible access control equipment, allowing the gate to be unlocked remotely.
Access Control Compatible Electric Gate Lock
The electric rim lock can be integrated with many types of compatible access control equipment, including:
- RFID access control readers
- Standalone access control keypads
- Fingerprint access control systems
- Video intercom systems
- Door intercom systems
- GSM gate openers
- Remote control receivers
- Access control panels
- 12V power supplies
- Push buttons
Electric Rim Lock for Iron Gates
This electric rim lock is particularly suitable for iron and metal gates where secure mechanical locking is required together with convenient electrical unlocking.
The durable steel housing, mechanical key cylinder and electrical release mechanism make it suitable for residential, commercial and controlled pedestrian entrances.
Day Stop / Free Access Function
The integrated Day Stop function can be used when the entrance needs to remain freely accessible for a period of time. This is useful for offices, shops, commercial buildings and other locations where unrestricted access may occasionally be required.
Electric Rim Lock Applications
- Iron gates
- Pedestrian gates
- Metal doors
- Villa entrance gates
- Residential buildings
- Commercial buildings
- Office entrances
- Warehouses
- Factories
- Staff entrances
- Automatic swing gates
- Access-controlled entrances
Left or Right Electric Rim Lock – Which One Do I Need?
The Left-Hand and Right-Hand electric rim locks are not interchangeable for every installation. The correct version depends on the physical gate configuration and mounting position.
Before ordering, check:
- Which side the gate hinges are installed
- Whether the gate opens inward or outward
- Which side the electric lock will be mounted
- Available mounting space
- 70 mm backset compatibility
- Available 12V power supply
Not sure which side you need? Send us a clear photo of your gate and we can help identify the suitable Left-Hand or Right-Hand version.
Electric Rim Lock Left & Right UAE
We supply 12V Electric Rim Locks in both Left-Hand and Right-Hand versions throughout the UAE for gates, doors and access control applications.
Supply, installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Please select or confirm Left-Hand or Right-Hand according to your gate installation.
