4 Door TCP/IP Network Access Control Controller
Price 400 AEDIn Stock

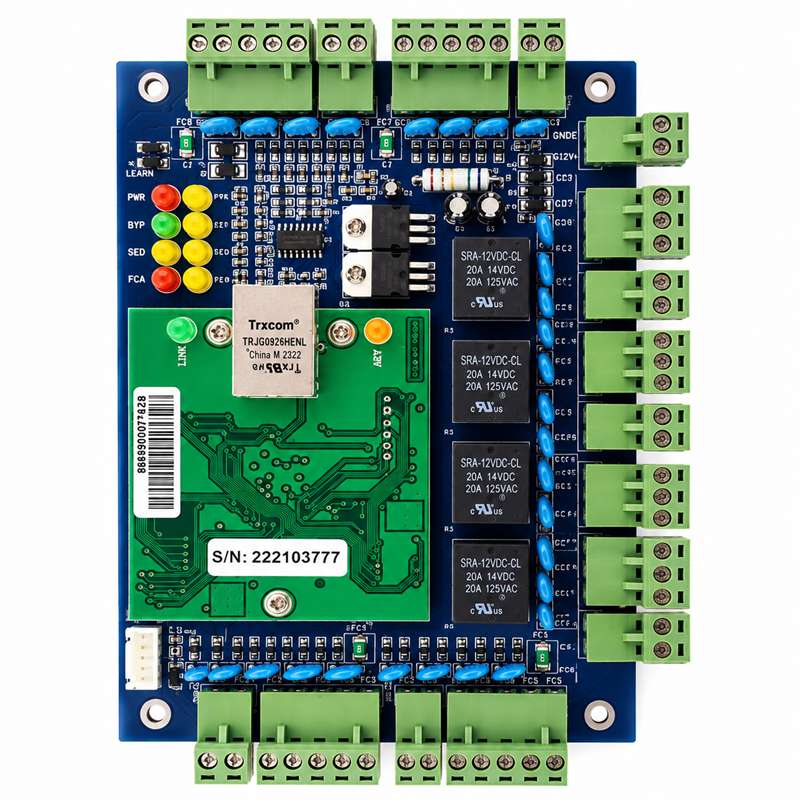

ACB-004 4 Door TCP/IP Network Access Control Panel UAE
The ACB-004 4 Door Access Control Controller is a professional TCP/IP network access control panel designed to centrally manage up to 4 independent doors. It is suitable for offices, apartment buildings, commercial properties, warehouses, factories, schools, hotels and other facilities requiring centralized multi-door access management.
The ACB-004 features built-in 10/100M adaptive TCP/IP Ethernet communication and supports compatible Wiegand 26 RFID readers. Up to 8 readers can be connected where entry and exit card authentication is required on all four doors.
ACB-004 Key Features
- Professional 4 door network access controller
- Model: ACB-004
- Controls up to 4 independent doors
- Supports up to 8 compatible RFID readers
- Built-in TCP/IP Ethernet communication
- 10/100M adaptive network connection
- Supports Wiegand 26 RFID readers
- Supports entry and exit reader configurations
- Power supply: 12V DC 4–7A
- Controller board consumption: less than 100mA
- Adjustable door unlock time: 1–600 seconds
- PC access control software support
- Mobile APP management support according to system configuration
- Web Server management support according to system configuration
- SDK support for compatible integrations
- Compatible with electric and magnetic locking systems
- Supports exit push buttons and door sensors
- Suitable for residential, commercial and industrial installations
4 Door Access Control Controller Technical Specifications
| Model | ACB-004 |
| Product Type | 4 Door Network Access Control Controller |
| Doors Controlled | 4 Doors |
| Reader Capacity | Up to 8 Readers |
| Reader Interface | Wiegand 26 |
| Network Communication | TCP/IP Ethernet |
| Network Speed | 10M/100M Adaptive |
| Power Supply | 12V DC 4–7A |
| PCB Power Consumption | Less Than 100mA |
| Door Unlock Time | 1–600 Seconds Adjustable |
| PCB Size | 160 × 106 mm |
| Enclosure Size | 273 × 228 × 65 mm |
| Management | PC Software / APP / Web Server / SDK |
| Application | 4 Door Network Access Control |
Centralized Access Control for 4 Doors
The ACB-004 allows up to four doors to be managed from one centralized controller. Instead of installing an independent standalone access controller at every entrance, multiple controlled doors can form part of one professional network access control system.
This configuration is ideal for buildings where administrators need centralized control over staff entrances, offices, server rooms, warehouses, storage areas and other restricted locations.
TCP/IP Network Access Control
Built-in TCP/IP 10/100M adaptive Ethernet communication allows the ACB-004 to connect to a compatible computer network for centralized access control management.
Network communication makes the controller suitable for professional installations where users, access permissions, doors and system events need to be managed from a central location.
Supports Up to 8 RFID Readers
The ACB-004 supports up to 8 compatible Wiegand RFID readers. This allows two-reader configurations to be used on each of the four doors when card authentication is required for both entry and exit.
The exact reader arrangement should be selected according to the required entry and exit configuration.
Wiegand 26 RFID Reader Support
The controller supports Wiegand 26 reader communication and can be integrated with compatible RFID access readers.
Depending on the selected reader, users can be identified using compatible RFID cards, proximity cards or key fobs before the controller activates the corresponding electric lock.
12V DC Access Control Panel
The ACB-004 operates from a 12V DC 4–7A power supply. The controller PCB itself consumes less than 100mA.
The complete power supply must be sized according to the controller plus all connected readers, magnetic locks, electric locks and other accessories. The PCB's low current consumption should not be confused with the total current requirement of the complete four-door system.
Adjustable Door Unlock Time
The door opening time can be adjusted from 1 to 600 seconds. This allows the installer to configure an appropriate unlocking duration for each access-control application.
The correct setting depends on the door type, electric lock and operational requirements of the building.
PC, APP & Web Management
The ACB-004 platform supports centralized management using compatible PC access control software. Depending on the supplied system configuration, mobile APP and Web Server management can also be available.
This provides a more flexible solution than standalone access readers for projects requiring centralized multi-door administration.
SDK Integration Support
SDK support allows compatible third-party software and customized security applications to communicate with the access control system where supported by the selected software environment.
Any custom integration requirements should be confirmed before ordering to ensure compatibility with the required software or building-management platform.
Compatible Access Control Equipment
- Wiegand 26 RFID readers
- RFID cards and key fobs
- Electromagnetic door locks
- Electric strike locks
- Electric bolt locks
- Electric rim locks
- Exit push buttons
- Door contact sensors
- Access control power supplies
- Backup batteries
- Emergency break glass units
Typical 4 Door Access Control System
A complete four-door access control installation can include:
- 1 × ACB-004 4 Door Network Controller
- Up to 8 compatible RFID readers
- 4 × compatible electric or magnetic locks
- Exit push buttons where required
- Door contact sensors where required
- 12V DC access control power supply
- Backup battery where required
- RFID cards or key fobs
- Ethernet network connection
- Compatible access management software
4 Door Access Control Applications
- Office buildings
- Commercial properties
- Apartment buildings
- Residential complexes
- Warehouses
- Factories
- Schools and universities
- Hotels
- Hospitals and clinics
- Staff entrances
- Server and data rooms
- Storage areas
- Restricted-access areas
1 Door vs 2 Door vs 4 Door Access Controllers
| Model | Doors | Recommended Application |
|---|---|---|
| ACB-001 | 1 Door | Single Controlled Entrance |
| ACB-002 | 2 Doors | Small Multi-Door Systems |
| ACB-004 | 4 Doors | Professional Multi-Door Access Control |
4 Door Access Control Controller UAE
We supply 4 door TCP/IP access control controllers throughout the UAE for residential, commercial and industrial security applications.
Supply, professional installation, programming and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Confirm the number of doors, number and type of RFID readers, electric lock type, required entry/exit configuration, network connection and software requirements to ensure the correct access control system is selected.
