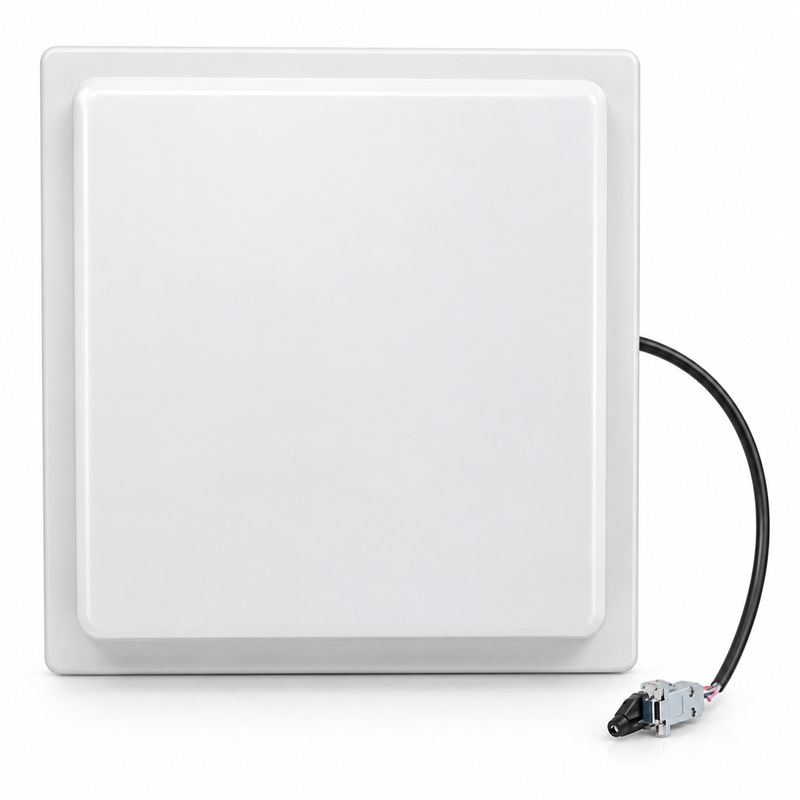

UHF RFID Long Range Reader 15M – UHF-115

UHF-115 15M Long Range RFID Reader for Vehicle Access Control UAE

UHF-115 UHF RFID Long Range Reader is a professional long-distance RFID reader designed for vehicle access control, automatic gates and parking barrier systems. With an adjustable reading distance of up to 15 metres, the UHF-115 allows compatible passive RFID vehicle tags to be detected automatically without requiring the driver to stop and present a card at a conventional short-range reader.

The reader supports ISO18000-6C / EPC Gen2 UHF RFID technology and provides multiple communication interfaces including Wiegand 26, Wiegand 34, RS232 and RS485. This makes it suitable for integration with access control panels, parking management systems, automatic gate motors and parking barriers throughout the UAE.

UHF-115 15M RFID Reader Key Features

• Professional UHF long range RFID reader
• Model: UHF-115
• Reading distance: up to 15 metres
• Adjustable RFID reading range
• Passive UHF RFID technology
• Supports ISO18000-6C / EPC Gen2
• Working frequency: 920–925 MHz
• 902–928 MHz version available depending on configuration
• Built-in high-gain antenna
• Supports Wiegand 26 / Wiegand 34
• Supports RS232 / RS485
• Optional RJ45 Ethernet depending on version
• Adjustable RF output power
• Supports automatic and trigger reading modes
• Fast vehicle tag identification
• Outdoor weather-resistant construction
• Ideal for automatic gates and parking barriers

UHF-115 Technical Specifications

15 Metre Long Range Vehicle RFID Identification

The UHF-115 provides an adjustable RFID identification distance of up to 15 metres when used with suitable UHF RFID tags and correctly installed.

This allows vehicles to be identified before reaching the gate or parking barrier, helping provide convenient hands-free access and reducing delays at controlled vehicle entrances.

Actual reading distance depends on the RFID tag, reader power setting, mounting position, antenna orientation, vehicle windscreen, surrounding metal objects and site conditions.

Passive UHF RFID Technology

The UHF-115 works with compatible passive UHF RFID tags. Passive tags do not normally require an internal battery and can be installed on vehicle windscreens or used in other suitable vehicle identification applications.

When a compatible tag enters the reader's configured detection area, the UHF reader captures its identification data and sends it to the connected access-control or parking system.

ISO18000-6C / EPC Gen2 Support

The reader supports the widely used ISO18000-6C / EPC Gen2 UHF RFID standard, allowing it to operate with compatible UHF vehicle tags, windshield stickers and RFID credentials.

Always confirm the frequency and protocol of the RFID tag before ordering to ensure compatibility with the reader.

Wiegand 26 & Wiegand 34 Output

The UHF-115 supports Wiegand 26 and Wiegand 34 communication, making it suitable for integration with many professional access-control panels and vehicle access systems.

Depending on the system design, the reader can send the detected vehicle credential to an access controller, which then decides whether to activate the connected gate motor or parking barrier.

RS232 & RS485 Communication

In addition to Wiegand communication, the UHF-115 supports RS232 and RS485 interfaces for integration with compatible parking management, computer and access-control systems.

Some versions may also support an optional RJ45 Ethernet interface. Confirm the exact communication options required before ordering.

Automatic Gate & Parking Barrier Integration

The UHF-115 is ideal for creating a hands-free vehicle access control system. When an authorised vehicle approaches the entrance, its compatible UHF tag can be detected automatically and verified by the connected access-control system.

The controller can then provide an opening command to a compatible sliding gate motor, swing gate motor or automatic parking barrier.

Typical UHF RFID Vehicle Access System

A professional vehicle access installation normally consists of:

• UHF-115 15M RFID Reader
• Compatible UHF RFID windshield tag or vehicle card
• Access control panel or parking controller
• Automatic sliding or swing gate motor
• Parking gate barrier where required
• 12V DC power supply
• Safety photocells or vehicle loop detector

UHF RFID Reader Applications

• Automatic vehicle gate access
• Parking barrier systems
• Residential compounds
• Apartment parking entrances
• Commercial buildings
• Office parking areas
• Hotels and private parking
• Factories and industrial sites
• Warehouse entrances
• Staff vehicle access
• Fleet management
• Logistics facilities

UHF RFID Long Range Reader 15M UAE

We supply UHF-115 15M long range RFID readers throughout the UAE for automatic gate, parking barrier and vehicle access-control applications.

Supply, installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm the required reading distance, RFID tag type, operating frequency and required communication interface to ensure the UHF-115 is suitable for your access-control system.
