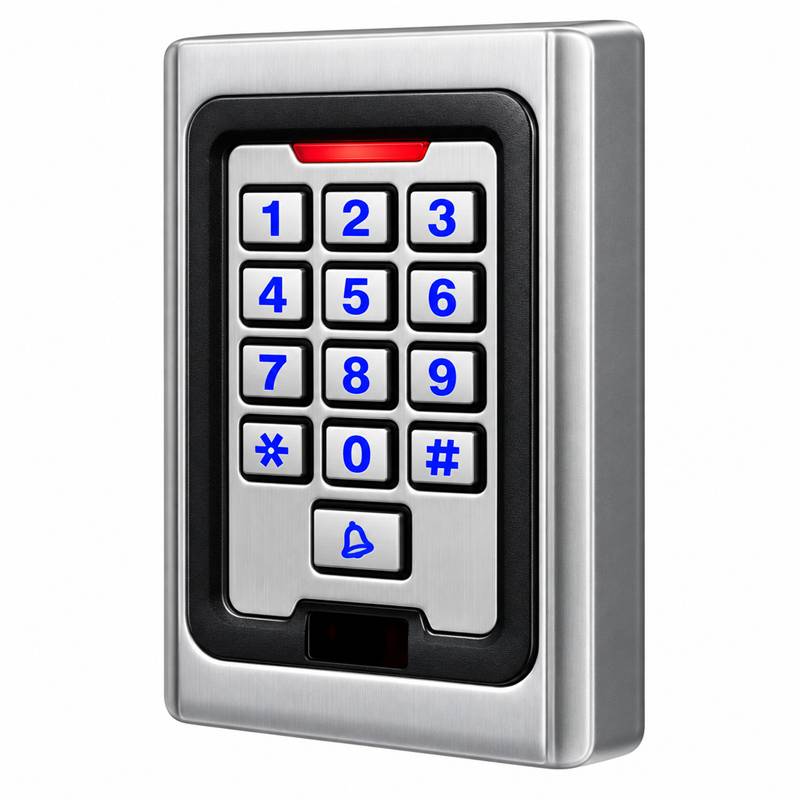

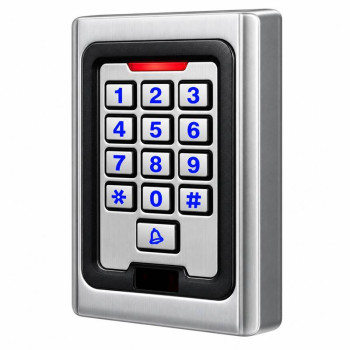

RFID Metal Keypad Access Control Reader in UAE

Genuine Product 1 Year Warranty UAE Delivery Installation Available

Price 120 AEDIn Stock

Qty

Indoor/outdoor use

Strong Zinc Alloy Electroplated anti-vandal case

Full programming from the keypad

2000 uses, supports Card, PIN, Card + PIN

Can be used as a stand alone keypad

Backlight keys

Wiegand 26 input for connection to external reader

Wiegand 26 output for connection to a controller

Adjustable Door Output time

Very low power consumption (30mA)

Fast operating speed, <20ms with 2000 users

Lock output current short circuit protection

Easy to install and program

Built in buzzer

Red, Yellow and Green LEDS display the working status

Operating Voltage	DC 12V±10%
User Capacity	2000
Card Reading Distance	3-6 cm
Active Current	＜60mA
Idle Current	25±5 mA
Lock Output Load	Max 3A
Alarm Output Load	Max 20A
Operating Temperature	-45℃～60℃
Operating Humidity	10%- 90% RH
Waterproof	Conforms to IP68
Adjustable Door Relay time	0 -99 seconds
Adjustable Alarm Time	0- 3 minutes
Wiegand Interface	Wiegand 26 bit
Wiring Connections	Electric Lock, Exit Button, External Alarm,External reader

Colour	Function	Description
Pink	BELL_A	Doorbell button one end
Pink	BELL_B	Doorbell button to the other end
Green	D0	WG output D0
White	D1	WG output D1
Yellow	OPEN	Exit button one end(the other end connected GND)
Red	12V+	12V + DC Regulated Power Input
Black	GND	12V - DC Regulated Power Input
Blue	NO	Relay normally-on end(Connect positive electric lock "-")
Purple	COM
