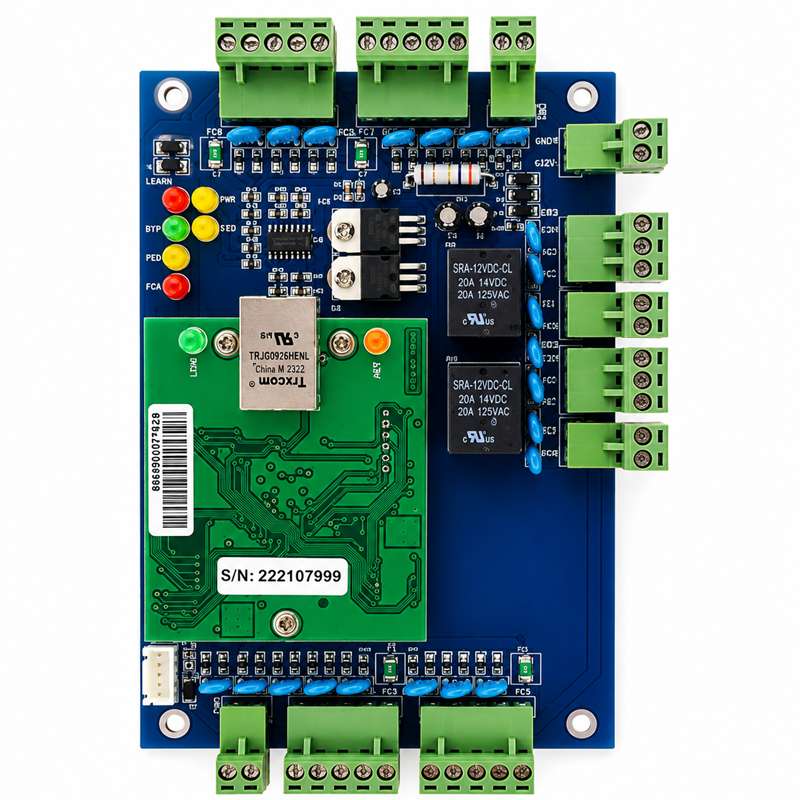

ACB-002 2-Door Network Access Control Controller
Price 350 AEDIn Stock
ACB-002 2-Door TCP/IP Network Access Control Panel UAE
ACB-002 2-Door Access Control Controller is a professional network access control panel designed to manage two independent doors from one centralized controller. With built-in TCP/IP 10M/100M adaptive Ethernet communication and support for compatible Wiegand 26 RFID readers, it provides a practical solution for offices, residential buildings, warehouses, factories, schools, hotels and commercial properties.
The ACB-002 operates from a 12V DC power supply and can form the central controller of a complete two-door access system using RFID readers, electric or magnetic locks, exit buttons and compatible door accessories. Management through compatible access control software provides centralized control of users and door access permissions.
ACB-002 Key Features
- Professional 2-door network access controller
- Model: ACB-002
- Controls 2 independent doors
- Supports up to 4 compatible RFID readers
- Built-in TCP/IP network communication
- 10M/100M adaptive Ethernet connectivity
- Compatible with Wiegand 26 readers
- 12V DC operating power
- Board consumption below 100mA
- Adjustable door unlock time: 1–600 seconds
- Compatible with electric and magnetic door locks
- Exit push-button support
- Compatible door sensor integration
- PC access control software support
- SDK support for compatible system integration
- Suitable for residential, commercial and industrial access control
ACB-002 Technical Specifications
| Model | ACB-002 |
| Product Type | Network Access Control Controller |
| Doors Controlled | 2 Doors |
| Reader Capacity | Up to 4 Compatible Readers |
| Communication | TCP/IP 10M/100M Adaptive |
| Reader Interface | Wiegand 26 |
| Power Supply | 12V DC, 4–7A |
| PCB Power Consumption | Less Than 100mA |
| Door Unlock Time | 1–600 Seconds Adjustable |
| PCB Dimensions | 160 × 106 mm |
| Enclosure Dimensions | 273 × 228 × 65 mm |
| Software | Compatible Access Control Management Software |
| SDK | Supported |
Two-Door Access Control Management
The ACB-002 allows two separate doors to be managed from one access control panel. This reduces the number of individual controllers required and provides centralized management for buildings with two controlled entrances.
Depending on the installation configuration, each door can be connected to compatible RFID readers, door locks, exit buttons and door sensors.
Supports Up to 4 RFID Readers
The ACB-002 can support up to four compatible access control readers, allowing reader-based entry and exit configurations on two doors where required.
Compatible Wiegand readers may include RFID card readers, keypad readers and other supported credential readers with the correct interface.
TCP/IP Network Access Control
Built-in TCP/IP 10M/100M adaptive Ethernet communication allows the controller to connect to a compatible local computer network for centralized access management.
This makes the ACB-002 suitable for professional installations where user permissions and door functions need to be managed from access control software rather than programmed individually at each reader.
Wiegand 26 Reader Support
The controller supports Wiegand 26 reader input, allowing compatible RFID proximity readers and access control devices to communicate with the central panel.
Always confirm the output protocol of the selected reader before installation to ensure compatibility with the ACB-002.
12V DC Access Control System
The ACB-002 operates from a 12V DC 4–7A power supply. The complete power supply should be selected according to the controller and the combined electrical requirements of the connected readers, locks and other accessories.
For professional installations, suitable backup batteries can also be incorporated into a compatible access control power supply where continued operation during mains failure is required.
Adjustable Door Unlock Time
Door opening time can be adjusted from approximately 1 to 600 seconds, allowing the installer to configure the unlocking period according to the application.
Shorter unlock times may be appropriate for normal office entrances, while different settings can be selected for other controlled-access applications.
Complete 2-Door Access Control System
The ACB-002 can be used as the main controller in a complete two-door access control installation consisting of:
- 1 × ACB-002 2-door controller
- Up to 4 compatible RFID readers
- 2 × magnetic locks or compatible electric locks
- Exit push buttons where required
- Door sensors where required
- 12V DC access control power supply
- Backup battery where required
- RFID cards or key tags
- Network connection to management computer
ACB-001 vs ACB-002 vs 4-Door Controller
| Controller | Doors | Typical Application |
|---|---|---|
| ACB-001 | 1 Door | Single controlled entrance |
| ACB-002 | 2 Doors | Two-door network access system |
| 4-Door Controller | 4 Doors | Larger multi-door installations |
ACB-002 Applications
- Office access control
- Apartment buildings
- Commercial buildings
- Warehouses
- Factories
- Schools and educational facilities
- Hotels
- Staff entrances
- Restricted rooms
- Two-door RFID access systems
2-Door Access Control Controller UAE
We supply ACB-002 2-door network access control controllers throughout the UAE for residential, commercial and industrial access-control projects.
Supply, installation, programming and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Confirm the number of doors, number and type of readers, lock type, access credentials and required network-management functions so the correct access control system can be selected.
