Touch Keypad Access Control Reader in UAE
Price 70 AEDIn Stock

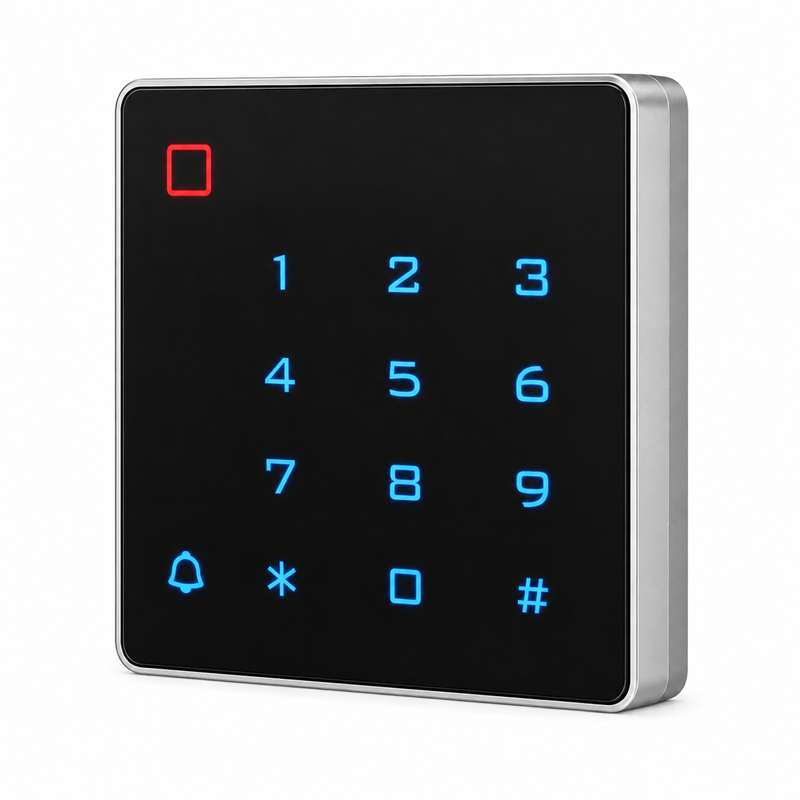

Touch Keypad Standalone Access Control Reader in UAE
RIFD Touch keypad Standalone Access Control Reader
Features:
- Full programming from the touch keypad
- 2000 users, supports Card, PIN, Card + PIN
- Can be used as a stand alone keypad
- Touch backlight keys
- Can set standalone access control mode, toggle relay mode, reader mode
- With data transconductance function
- Adjustable Door Output time
- Very low power consumption (30mA)
- Fast operating speed, <20ms with 2000 users
- Lock output current short circuit protection
- Easy to install and program
- Built in buzzer
- Red, Yellow and Green LEDS display the working status
Specifications:
Operating Voltage | DC 12V±10% |
User Capacity | 2000 |
Card Reading Distance | 3-6 cm |
Active Current | ＜60mA |
Idle Current | 25±5 mA |
Lock Output Load | Max 3A |
Alarm Output Load | Max 20A |
Operating Temperature | -45℃～60℃ |
Operating Humidity | 10%- 90% RH |
Waterproof | Conforms to IP68 |
Adjustable Door Relay time | 0 -99 seconds |
Adjustable Alarm Time | 0- 3 minutes |
Wiegand Interface | Wiegand 26 bit |
Wiring Connections | Electric Lock, Exit Button, External Alarm,External reader |
Wiring:
Colour | Function | Description |
Pink | BELL_A | Doorbell button one end |
Pink | BELL_B | Doorbell button to the other end |
Green | D0 | WG output D0 |
White | D1 | WG output D1 |
Yellow | OPEN | Exit button one end(the other end connected GND) |
Red | 12V+ | 12V + DC Regulated Power Input |
Black | GND | 12V - DC Regulated Power Input |
Blue | NO | Relay normally-on end(Connect positive electric lock "-") |
