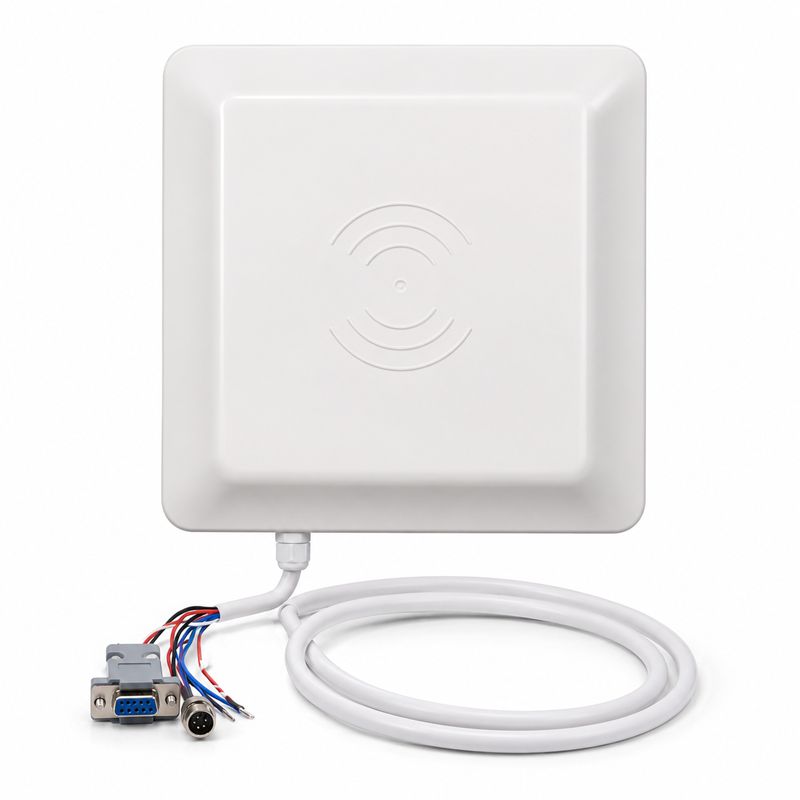

UHF-105 5M Long Range RFID Reader

UHF-105 5M Long Range RFID Reader for Vehicle Access Control UAE

UHF-105 5M Long Range RFID Reader is a professional passive UHF RFID reader designed for vehicle access control, automatic gates and parking barrier systems. With an adjustable reading distance of up to 5 metres, the UHF-105 enables hands-free identification of authorized vehicles without requiring the driver to present a card directly to the reader.

The UHF-105 operates in the 920–925 MHz UHF frequency range and supports ISO18000-6C (EPC Gen2) compatible UHF RFID tags. Multiple communication interfaces including Wiegand 26, Wiegand 34, RS232 and RS485 make it suitable for integration with access control panels, parking management systems, automatic gates and boom barriers.

UHF-105 5M RFID Reader Key Features

• Professional long range UHF RFID reader
• Model: UHF-105
• Reading distance: up to 5 metres adjustable
• Passive UHF RFID technology
• Working frequency: 920–925 MHz
• Supports ISO18000-6C / EPC Gen2 RFID tags
• Built-in high-gain antenna
• Fast contactless vehicle identification
• Wiegand 26 and Wiegand 34 output
• RS232 and RS485 communication
• Optional RJ45 Ethernet, Wi-Fi or relay interface depending on version
• DC 9–12V operating voltage
• Low power consumption
• Suitable for outdoor vehicle access applications
• Ideal for automatic gates and parking barriers

UHF-105 Technical Specifications

5 Metre Long Range Vehicle Identification

The UHF-105 can identify compatible passive UHF RFID tags from distances of up to approximately 5 metres. The actual reading distance depends on the RFID tag, reader power setting, antenna alignment, mounting position, vehicle installation and surrounding environment.

This long reading distance makes the UHF-105 particularly suitable for vehicle entrances because authorized vehicles can be identified automatically as they approach the gate or parking barrier.

Hands-Free Vehicle Access Control

Unlike conventional short-range proximity card readers, a long range UHF RFID reader does not normally require the driver to stop, lower the vehicle window and present a card directly to the reader.

A compatible passive UHF RFID vehicle tag can be installed on the vehicle. When the authorized tag enters the reader's configured detection zone, the access control system can identify the credential and process the required gate or barrier opening command.

UHF RFID Reader for Automatic Gates

The UHF-105 can be integrated with automatic sliding gates and swing gate systems. The reader normally communicates with a compatible access controller through Wiegand, RS232 or RS485 depending on the system design.

After an authorized RFID credential is verified, the access control system can provide an opening signal to the automatic gate controller.

UHF RFID Reader for Parking Barriers

The UHF-105 is an excellent solution for automatic parking barrier access control. It can be used at residential compounds, staff parking areas, office buildings, warehouses, factories and private parking facilities where authorized vehicles require convenient automatic entry.

The system can be combined with compatible parking barriers, loop detectors, photocells and access control equipment to create a complete vehicle entrance solution.

Wiegand 26 & Wiegand 34 Integration

The UHF-105 supports Wiegand 26 and Wiegand 34 communication, allowing integration with many conventional access control panels.

This makes the reader suitable for projects where UHF vehicle identification needs to be added to an existing access control infrastructure.

RS232 & RS485 Communication

In addition to Wiegand output, the reader supports RS232 and RS485 communication for integration with compatible parking management, access control and RFID management systems.

Optional Ethernet, Wi-Fi or relay versions may also be available depending on the exact UHF-105 hardware configuration ordered.

Compatible UHF RFID Tags

The UHF-105 is designed for compatible ISO18000-6C / EPC Gen2 passive UHF RFID credentials. Depending on the application, suitable credentials can include vehicle windshield tags, long-range RFID cards and other compatible UHF tags.

For reliable vehicle identification, use a tag specifically designed for the mounting location and verify its compatibility with the reader's configured frequency.

Typical UHF-105 Applications

• Automatic parking barriers
• Sliding gate motors
• Swing gate automation
• Vehicle access control systems
• Residential compounds
• Gated communities
• Apartment parking entrances
• Office parking areas
• Hotels and commercial buildings
• Factories and warehouses
• Industrial facilities
• Staff vehicle access
• Fleet and vehicle identification systems

UHF-105 Installation Guidelines

For reliable long-range RFID performance, the reader should be mounted where the antenna has a clear detection path toward approaching vehicles. The mounting angle and height should be adjusted according to the position of the RFID tag on the vehicle.

The reading range should be configured so the system identifies vehicles in the intended lane without unintentionally reading tags from adjacent lanes or nearby vehicles.

Package Includes

• 1 × UHF-105 Long Range RFID Reader
• 1 × Mounting Bracket
• Connection Cable / Accessories as supplied
• User or installation documentation as supplied

UHF RFID Long Range Reader 5M UAE

We supply UHF-105 5M long range RFID readers throughout the UAE for automatic gates, parking barriers and professional vehicle access control systems.

Supply, installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm the required reading distance, UHF tag frequency, access controller interface and installation environment to ensure the UHF-105 is correctly configured for your vehicle access system.
