BENINCA BOB50M

BENINCA BOB50M Swing Gate Motor in UAE

230 Vac
Up to 5.0 m per door leaf
Irreversible 230 Vac electromechanical geared motor.
Reliable, quiet, and quick to install geared motor.
thanks to its 2 adjustable mechanical stops for opening and closing.
Rolled ball screws Ø 20 mm.
Easy access release from above.
BENINCA BOB50M
 is the ideal motor gear to install on for wrought-iron gates up to 3 m.

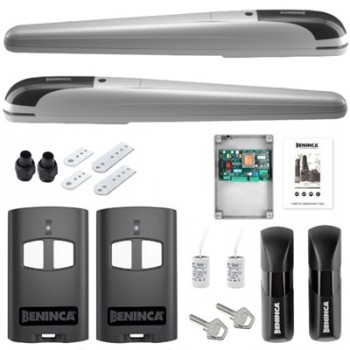

BENINCA BOB50M kits contains:
2 x BOB50M Swing Gate Motor.
1 x HEADY Control unit.
1 x PUPILLA.T Pair of adjustable photocells.
1 x LAMPY Flashing light with integrated antenna.
2 x To Go Remote Control.
1 x Push Button.
2 x Fixing Bracket.

Technical Data:
Power supply : 230 Vac (50-60Hz)
Motor supply : 230 Vac
Max absorbed current : 1,4 A
Maximum thrust : 2500 N
Opening time : 26”
Standard stroke : 455 mm
Max stroke : 520 mm
Duty cycle : 30%
Protection level : IP44
Built-in control unit : no
Encoder : no
Operating temperature : -20°C /+50°C
Lubrication : GREASE
Leaf max dimension : 3.0 m
Weight : 11.6 kg
Kit weight 19.6 kg
