BENINCA BOB30M Swing Gate Motor – Up to 3M Per Leaf

BENINCA BOB30M 3M Commercial Swing Gate Motor UAE

BENINCA BOB30M is a professional 230V electromechanical swing gate actuator designed for automatic gates with leaves up to 3.0 metres each. BENINCA classifies the BOB30M for commercial use, making it suitable for villas, residential compounds, commercial properties and professional automatic swing gate installations.

The BOB30M delivers up to 2300 N maximum thrust with an 18-second opening time and incorporates two adjustable mechanical stops for opening and closing. Its reliable, quiet design and convenient top-access manual release make it a practical solution for professional swing gate automation.

BENINCA BOB30M Key Features

• Genuine BENINCA swing gate actuator
• Model: BOB30M
• For swing gates up to 3.0 m per leaf
• Commercial-use swing gate automation
• 230V AC electromechanical geared motor
• Irreversible operator design
• 2300 N maximum thrust
• 18-second opening time
• 270 mm standard stroke
• 325 mm maximum stroke
• 2 adjustable mechanical stops for opening and closing
• 30% duty cycle
• IP44 protection rating
• Reliable and quiet operation
• Quick professional installation
• Easy manual release access from above
• Compatible with professional BENINCA external control units
• Prepared for X.BE KNX and Q.BE MQTT accessories with compatible electronics
• BeUP app configuration and diagnostics available with compatible control equipment and pro.UP accessory
• Grease lubrication
• Operating temperature from -20°C to +50°C

BENINCA BOB30M Technical Specifications

For Swing Gates Up to 3 Metres Per Leaf

The BENINCA BOB30M is designed for swing gate leaves measuring up to 3.0 metres. For a conventional double-leaf swing gate, one actuator is normally installed on each gate leaf.

Correct motor selection should also consider gate weight, hinge dimensions, gate construction, wind exposure, opening angle and daily operating frequency.

2300 N Maximum Thrust

The BOB30M provides up to 2300 N maximum thrust for reliable and controlled movement of correctly installed swing gates.

Its 230V motor and commercial classification make it suitable for professional automatic gate installations requiring dependable daily operation.

Adjustable Opening & Closing Mechanical Stops

A major feature of the BENINCA BOB30M is its pair of adjustable mechanical stops. The actuator incorporates mechanical adjustment for both the opening and closing positions.

This integrated design simplifies installation and allows the installer to accurately configure the actuator travel according to the gate geometry.

270 mm Stroke & 18-Second Opening

The BOB30M features a 270 mm standard stroke with a maximum stroke of 325 mm. BENINCA specifies an opening time of approximately 18 seconds.

Actual gate opening time can vary according to installation geometry, gate opening angle and control-board configuration.

Reliable & Quiet Swing Gate Operation

BENINCA designed the BOB30M as a reliable and quiet electromechanical geared motor that is straightforward to install and configure. This makes it suitable for residential and commercial entrances where smooth automatic gate operation is important.

Easy Manual Release from Above

The actuator provides convenient access to the manual release system from above. This allows the gate to be released for manual operation when required during a power failure, emergency or maintenance procedure.

External BENINCA Control Board

The BOB30M does not contain a built-in control unit. One or two actuators are connected to a compatible external BENINCA 230V swing gate control board.

The official KBOB30M kit uses the BENINCA HEADY control unit with an integrated 433.92 MHz receiver. Other compatible BENINCA control solutions may provide additional configuration, diagnostics and smart automation capabilities.

Smart Automation Compatibility

The current BOB30M platform is prepared for connection of compatible X.BE KNX and Q.BE MQTT accessories when used with suitable BENINCA control electronics.

With compatible control equipment and the pro.UP accessory, BENINCA's BeUP system can provide configuration, diagnostics, status checking, firmware management and gate commands.

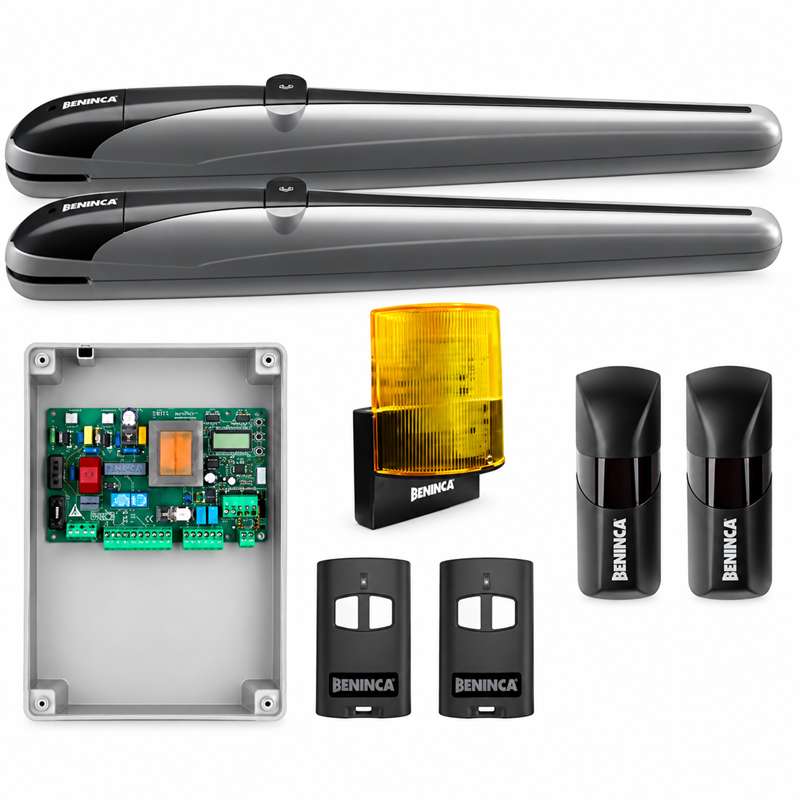

Official BENINCA KBOB30M Kit

• 2 × BENINCA BOB30M 230V Swing Gate Motors
• 1 × BENINCA HEADY 230V Control Unit with Integrated Receiver
• 1 × Pair BENINCA PUPILLA.T Adjustable Photocells
• 1 × BENINCA STAR Flashing Light with Built-In Antenna
• 1 × BENINCA TO.GO2VA 2-Channel 433.92 MHz Remote Control

Note: The official BENINCA factory kit and our UAE package may contain different accessories. Confirm the exact package contents when ordering.

BENINCA BOB30M Applications

• Villa swing gates
• Commercial swing gates
• Residential compounds
• Double-leaf swing gates
• Single-leaf swing gates
• Steel entrance gates
• Wrought-iron gates
• Commercial property entrances
• Automatic driveway gates

BENINCA BOB30M Supply & Installation UAE

We supply BENINCA BOB30M swing gate motors throughout the UAE with professional installation, replacement and technical support available according to site requirements.

Supply and installation are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

For correct motor selection, provide the gate leaf length, approximate gate weight, hinge dimensions, required opening angle and a clear site photo before ordering.
