BENINCA BILL30M Swing Gate Motor – Up to 2.5M Per Leaf

BENINCA BILL30M 230V Automatic Swing Gate Motor UAE

BENINCA BILL30M is a compact 230V electromechanical swing gate actuator designed for residential automatic gates with leaves up to 2.5 metres each. Its slim linear design makes it particularly suitable for wrought-iron and decorative swing gates where a clean installation and reliable automatic operation are required.

The BILL30M delivers up to 2800 N maximum thrust with a 300 mm standard stroke, 16-second opening time and IP54 protection. Its stainless-steel stem and protected worm-screw design make it especially suitable for demanding outdoor installations, including dusty and sandy environments.

BENINCA BILL30M Key Features

• Genuine BENINCA swing gate actuator
• Model: BILL30M
• For swing gates up to 2.5 m per leaf
• 230V AC electromechanical geared motor
• Irreversible operator design
• 2800 N maximum thrust
• 16-second opening time
• 300 mm standard stroke
• 320 mm maximum stroke
• 30% duty cycle
• IP54 protection rating
• Stainless-steel stem
• Worm screw protected by scraper ring
• Suitable for dusty and sandy environments
• Compact installation geometry
• Easy manual release access from above
• Available in right-hand and left-hand versions
• Grease lubrication
• Operating temperature from -20°C to +50°C

BENINCA BILL30M Technical Specifications

2800 N Powerful Swing Gate Actuator

The BENINCA BILL30M provides a maximum thrust of 2800 N, delivering strong and controlled movement for correctly installed residential swing gates up to 2.5 metres per leaf.

Correct motor selection should consider gate leaf length, gate weight, hinge condition, wind resistance, installation geometry and daily operating frequency.

Designed for Gates Up to 2.5 Metres Per Leaf

The BILL30M is officially designed for swing gates with a maximum leaf length of 2.5 metres. For a double swing gate, one actuator is normally installed on each gate leaf.

For longer gate leaves, a higher-capacity BILL model should be selected according to the gate dimensions and installation conditions.

16-Second Opening Time

The BENINCA BILL30M has a specified opening time of approximately 16 seconds with a 300 mm standard actuator stroke, providing smooth automatic opening and closing for residential entrances.

Stainless-Steel Stem for UAE Conditions

A major advantage of the BILL30M is its stainless-steel actuator stem. The worm screw is protected by a scraper ring, helping protect the internal mechanism from dust and contaminants.

BENINCA specifically identifies this design as suitable for installations exposed to dusty, sandy or aggressive atmospheric conditions, making it particularly relevant for outdoor gate automation installations in the UAE.

Compact Design for Wrought-Iron Gates

The slim and neat design of the BILL30M is particularly suitable for wrought-iron and decorative swing gates. Its compact installation geometry allows the actuator to be installed without unnecessarily dominating the appearance of the gate.

Manual Release System

The BILL30M provides convenient access to the manual release mechanism from above. This allows the gate to be manually operated when required, such as during a power failure or maintenance procedure.

External Swing Gate Control Board

The BILL30M actuator does not contain a built-in control board. A compatible external BENINCA swing gate control unit is required to operate one or two actuators and manage accessories such as photocells, flashing lights, remote controls and push buttons.

Compatible control solutions can provide automatic closing, pedestrian opening, remote-control operation, photocell safety inputs, motor torque adjustment and configurable operating logic depending on the selected control board.

BENINCA BILL30M Applications

• Villa swing gates
• Residential driveway gates
• Wrought-iron gates
• Decorative steel gates
• Double-leaf swing gates
• Single-leaf swing gates
• Residential compounds
• Private property entrances

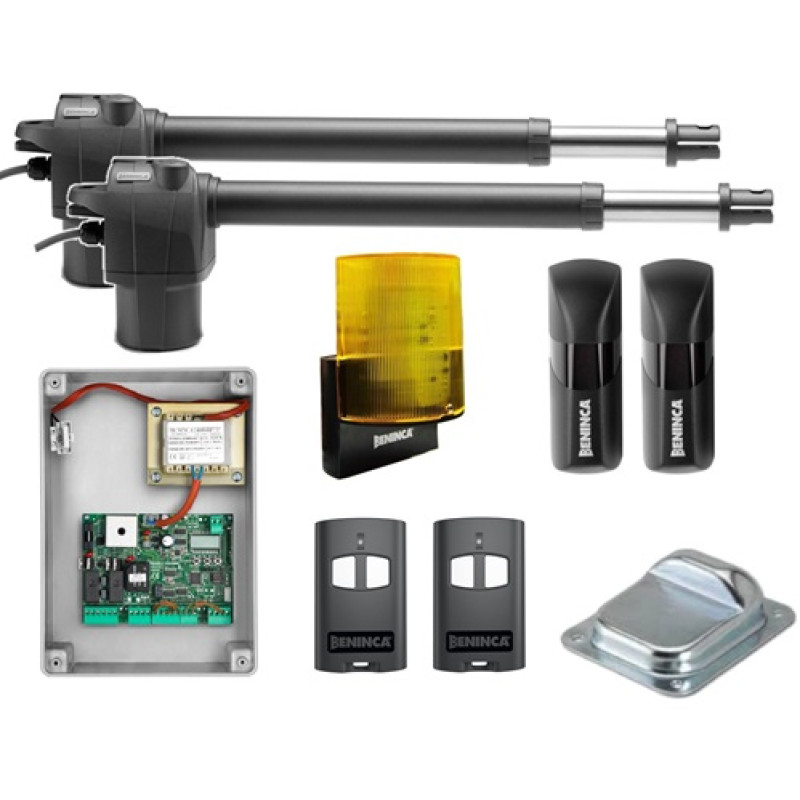

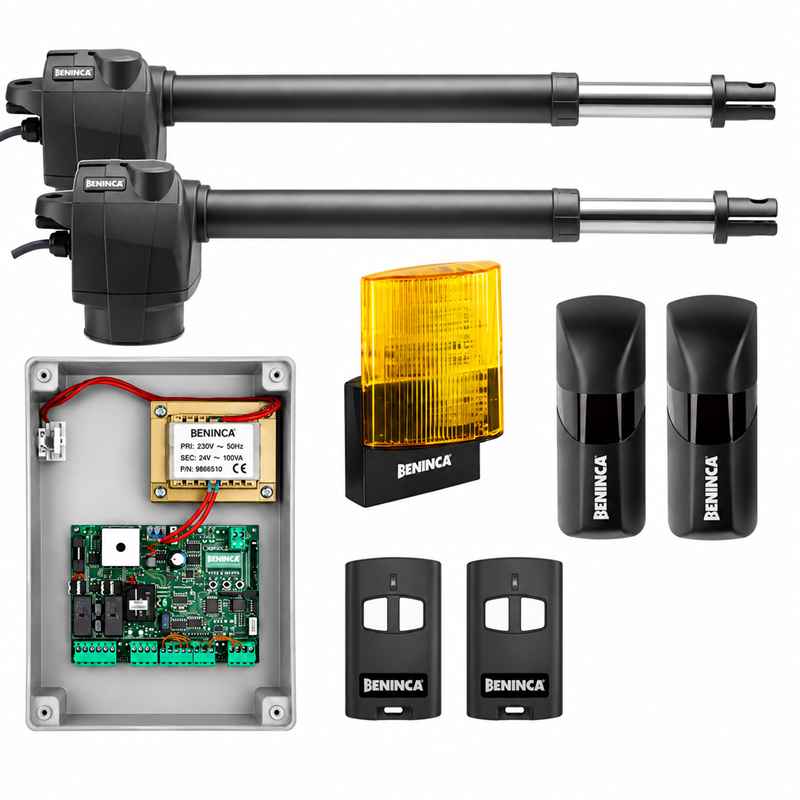

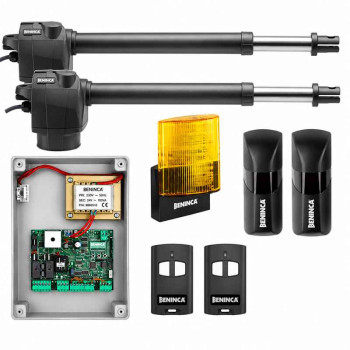

Our UAE BENINCA BILL30M Kit Includes

• 2 × BENINCA BILL30M 230V Swing Gate Motors
• 1 × BENINCA 230V Swing Gate Control Unit
• 1 × Pair Photocell Safety Sensors
• 1 × Flashing Warning Light
• 2 × Remote Controls
• 2 × Motor Fixing Brackets
• 1 × Exit Push Button
• Manual Release Keys

Note: Package contents may vary according to stock and the selected motor-only or complete-kit option. Confirm the supplied accessories when ordering.

BENINCA BILL30M Supply & Installation UAE

We supply BENINCA BILL30M swing gate motors throughout the UAE with professional installation, replacement and technical support available according to site requirements.

Supply and installation are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

For correct swing gate motor selection, provide the gate leaf length, approximate gate weight, hinge dimensions and a clear photo of the gate before ordering.
