BENINCA BILL40M

BENINCA BILL40M Swing Gate Motor in UAE

230 Vac
Up to 3.5 m per door leaf
Irreversible 230 Vac electromechanical geared motor.
Neat design and size, particularly suited to forged iron gates.
Easy and quick to install due to compact size and installation geometry.
Worm protected by a scraper ring and stainless steel stem.
Suitable for use in dusty and sandy environments or where there are aggressive atmospheric agents.
Easy access release from above.
Available in right or left version.
BENINCA BILL40M
BILL is the ideal motor gear to install on for wrought-iron gates up to 3,5m.

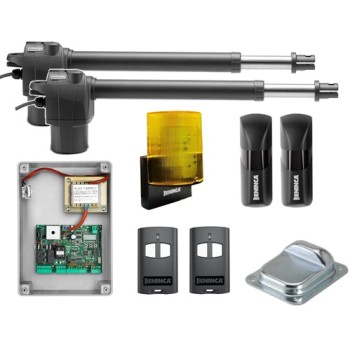

BENINCA BILL40M kits contains:
2 x BILL40m 230 Vac operator.
1 x HEADY 230 Vac control unit.
1 x LAMPI.LED 230 Vac LED flashing light.
1 x PUPILLA.R Pair of fixed photocells PUPILLA.R.
2 x To go Remote control.
2 x Fixing Bracket.
1 x Exit Push Button.
2 x Manual release keys.

Technical Data:
Power supply : 230 Vac (50-60Hz)
Motor supply : 230 Vac
Max absorbed current : 1.1 A
Maximum thrust : 2800 N
Opening time : 18"
Standard stroke : 400 mm
Max stroke : 420 mm
Duty cycle : 30%
Protection level : IP54
Built-in control unit : no
Encoder : no
Operating temperature : -20°C /+50°C
Lubrication : GREASE
Leaf max dimension : 3.5 m
Weight : 6.7 kg
Kit weight 15.5 kg.
