BENINCA BOB50M Swing Gate Motor – Up to 5M Per Leaf

BENINCA BOB50M 5M Commercial Swing Gate Motor UAE

BENINCA BOB50M is a professional 230V electromechanical swing gate actuator designed for large automatic swing gates with leaves up to 5.0 metres each. With powerful 3500 N maximum thrust, long 455 mm standard stroke and two adjustable mechanical stops, the BOB50M is an excellent solution for large residential, compound and commercial swing gate entrances.

The BOB50M combines strong mechanical performance with reliable and quiet operation. Its adjustable opening and closing mechanical stops simplify installation, while the convenient top-access manual release provides easy manual operation when required.

BENINCA BOB50M Key Features

• Genuine BENINCA swing gate actuator
• Model: BOB50M
• For swing gates up to 5.0 m per leaf
• Commercial-use swing gate automation
• 230V AC electromechanical geared motor
• Irreversible operator design
• 3500 N maximum thrust
• 26-second opening time
• 455 mm standard stroke
• 520 mm maximum stroke
• 2 adjustable mechanical stops for opening and closing
• 30% duty cycle
• IP44 protection rating
• Reliable and quiet operation
• Quick professional installation
• Easy manual release access from above
• Compatible with professional BENINCA 230V control units
• Prepared for X.BE KNX and Q.BE MQTT accessories with compatible electronics
• BeUP/pro.UP configuration and diagnostics with compatible control equipment
• Grease lubrication
• Operating temperature from -20°C to +50°C

BENINCA BOB50M Technical Specifications

Swing Gate Motor for Gates Up to 5 Metres Per Leaf

The BENINCA BOB50M is officially designed for swing gate leaves measuring up to 5.0 metres. For a conventional double-leaf swing gate, one BOB50M actuator is normally installed on each gate leaf.

For large gates, motor selection should not be based on leaf length alone. Gate weight, hinge geometry, wind exposure, gate infill, required opening angle and operating frequency must also be considered.

Powerful 3500 N Maximum Thrust

The BOB50M delivers up to 3500 N maximum thrust, providing significantly more force than smaller BOB-series actuators and making it suitable for correctly installed large swing gates.

The combination of 3500 N thrust and a long actuator stroke makes the BOB50M particularly suitable for large villa, compound and commercial gate entrances.

455 mm Long Stroke

The BENINCA BOB50M features a 455 mm standard stroke and up to 520 mm maximum stroke. This long travel provides greater installation flexibility on large swing gates and wider gate pillars.

BENINCA specifies an opening time of approximately 26 seconds. Actual gate movement time can vary according to installation geometry and opening angle.

Adjustable Opening & Closing Mechanical Stops

A major feature of the BOB50M is its two adjustable mechanical stops for the opening and closing positions. These integrated stops allow the installer to accurately configure actuator travel according to the gate installation.

This makes installation and adjustment more convenient while providing reliable mechanical positioning of the gate.

Reliable & Quiet Operation

BENINCA designed the BOB50M as a reliable and quiet electromechanical geared motor for professional swing gate automation. Its robust mechanical construction is suitable for large entrances requiring dependable automatic opening and closing.

Easy Manual Release from Above

The BOB50M provides convenient access to its manual release mechanism from above. This allows the actuator to be released so the gate can be moved manually during a power failure, emergency or maintenance procedure.

External BENINCA Control Unit

The BOB50M does not contain a built-in control board. One or two motors must be connected to a compatible external BENINCA 230V swing gate control unit.

Compatible options include BENINCA control systems such as HEADY, BRAINY and BRAINY PLUS, depending on the required installation functions and accessories.

BENINCA BRAINY PLUS Smart Control Options

For more advanced installations, BENINCA BRAINY PLUS provides professional control functions including an integrated LCD display, 433.92 MHz receiver, separate electronic torque adjustment, adjustable slowdowns, automatic operating parameter setup, configurable safety inputs and ESA+ energy-saving functionality.

The current BENINCA platform is also prepared for X.BE KNX and Q.BE MQTT accessories. With compatible electronics and the pro.UP accessory, the BeUP app can be used for configuration, diagnostics, firmware management, gate status checking and commands.

BOB50M vs BOB50ME vs BOB5024E

BENINCA BOB30M vs BOB50M

BENINCA BOB50M Applications

• Large villa swing gates
• Commercial swing gates
• Residential compounds
• Large double-leaf gates
• Single-leaf swing gates
• Steel entrance gates
• Wrought-iron gates
• Commercial property entrances
• Large automatic driveway gates

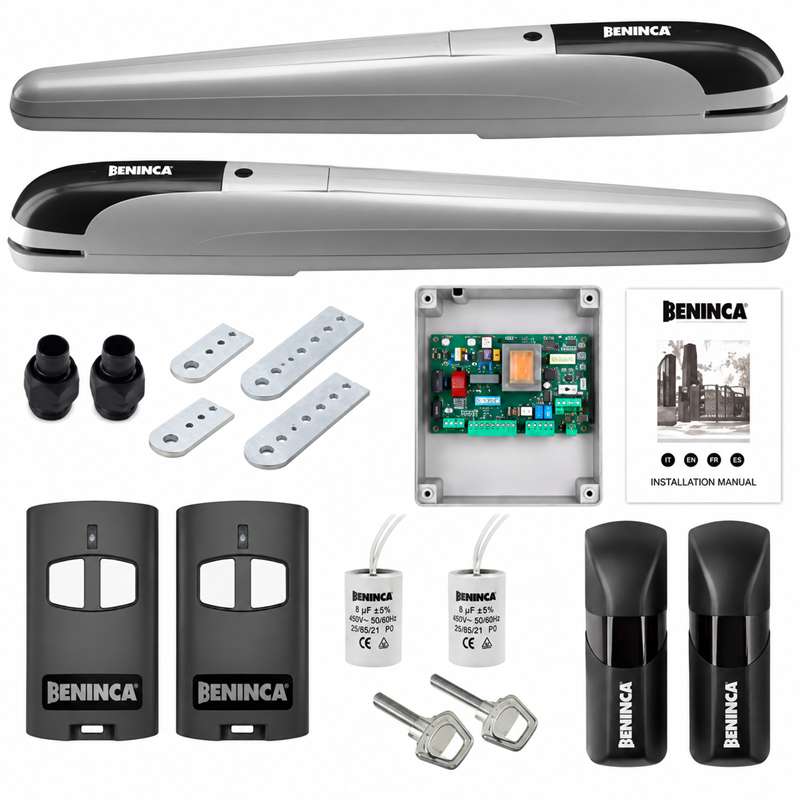

Our UAE BENINCA BOB50M Kit Includes

• 2 × BENINCA BOB50M 230V Swing Gate Motors
• 1 × BENINCA HEADY 230V Control Unit
• 1 × Pair BENINCA PUPILLA.T Photocell Sensors
• 1 × BENINCA Flashing Warning Light
• 2 × BENINCA Remote Controls
• 2 × Motor Fixing Brackets
• 1 × Exit Push Button
• Manual Release Keys

Note: This is our UAE package configuration. Package contents can vary according to stock and the selected motor-only or complete-kit option. Confirm the exact accessories when ordering.

BENINCA BOB50M Supply & Installation UAE

We supply BENINCA BOB50M 5M swing gate motors throughout the UAE with professional installation, replacement and technical support available according to site requirements.

Supply and installation are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

For correct motor selection, provide the gate leaf length, approximate gate weight, gate construction, hinge dimensions, required opening angle and a clear site photo before ordering.
