SOMFY Keygo 4 RTS Gate Remote Control

SOMFY Keygo 4 RTS Gate Remote Control UAE

SOMFY Keygo 4 RTS is a compact 4-channel gate and garage door remote control designed for compatible SOMFY RTS automation systems. Identified by SOMFY reference 1841064, the Keygo RTS operates on 433.42 MHz Radio Technology Somfy (RTS) and allows up to four compatible automation products or functions to be controlled from one handheld transmitter.

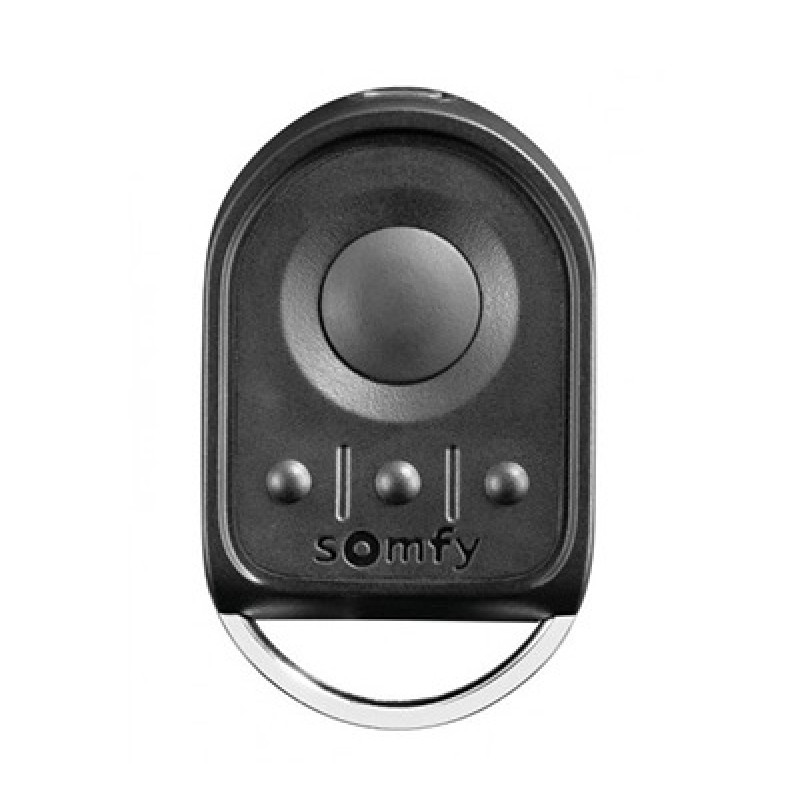

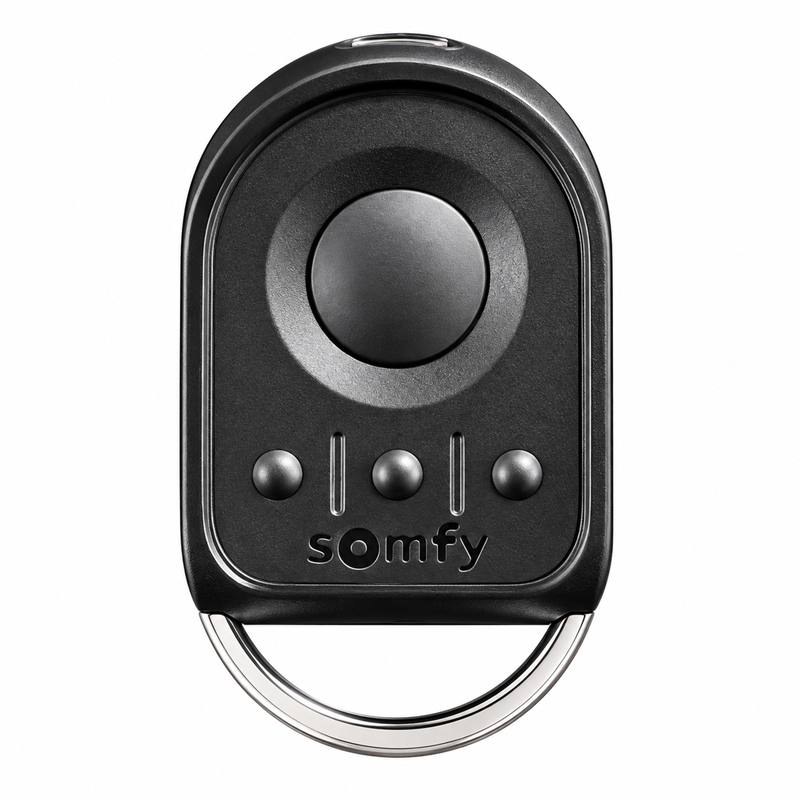

The Keygo 4 RTS features one large central button for convenient everyday operation together with three smaller programmable buttons. Its compact keyring design makes it particularly suitable for controlling automatic driveway gates and garage doors from a vehicle.

SOMFY Keygo 4 RTS Key Features

• Original SOMFY Keygo RTS remote control
• Model: Keygo 4 RTS
• SOMFY reference: 1841064
• 4-channel radio transmitter
• Radio technology: RTS – Radio Technology Somfy
• Operating frequency: 433.42 MHz
• Radio range: approximately 30 metres
• One large central operating button
• Three additional programmable buttons
• Controls up to four compatible RTS products or functions
• Compact keyring design
• Designed for convenient operation from a vehicle
• Battery-powered – no wiring required
• Suitable for compatible SOMFY gates and garage doors
• Operating temperature: -20°C to +70°C
• Protection rating: IP40

SOMFY Keygo 4 RTS Technical Specifications

4-Channel SOMFY RTS Remote Control

The SOMFY Keygo 4 RTS provides four radio channels, allowing one compact transmitter to control up to four compatible SOMFY RTS automation products or functions.

Depending on the installed motors and receivers, the buttons can be assigned to different automatic gates, garage doors or other compatible RTS functions.

Large Central Control Button

A distinctive feature of the Keygo RTS is its large central operating button. The button can be easily located by touch, making the remote particularly convenient for vehicle access where the user wants to operate an automatic gate or garage door without searching for a small button.

Three additional smaller buttons provide the remaining channels for other compatible RTS automation functions.

SOMFY RTS 433.42MHz Technology

The Keygo 4 RTS uses Radio Technology Somfy (RTS) and operates at 433.42 MHz. It is designed for compatible SOMFY RTS motors, receivers and automation control systems.

Important: Do not describe the Keygo RTS as a 433.92 MHz remote. SOMFY specifies this model at 433.42 MHz. A remote using another frequency or radio protocol is not automatically compatible.

30 Metre Radio Range

SOMFY specifies a radio-control range of approximately 30 metres for the Keygo RTS. This makes the transmitter suitable for operating compatible automatic gates and garage doors from a normal vehicle-access distance.

Actual operating range can vary depending on the receiver location, building structure, vehicle body, radio interference, antenna configuration and surrounding environment.

SOMFY Keygo RTS Remote Programming

The Keygo 4 RTS must be programmed into a compatible SOMFY RTS motor or receiver before it can operate the automation system.

The exact programming procedure depends on the SOMFY gate motor, garage door opener or external RTS receiver being used. Each channel can be associated with a compatible RTS product or supported automation function.

SOMFY Keygo RTS Compatible Applications

• SOMFY sliding gate motors
• SOMFY swing gate motors
• SOMFY automatic driveway gates
• SOMFY garage door openers
• Compatible SOMFY RTS receivers
• Residential gate automation
• Residential garage door automation
• Other compatible SOMFY RTS products

SOMFY Keygo RTS for Sliding Gate Motors

The Keygo 4 RTS can be used with compatible SOMFY RTS sliding gate automation. It is suitable for compatible SOMFY ELIXO systems and other gate motors equipped with the appropriate RTS receiver.

The compact keyring design allows drivers to keep the remote in the vehicle and conveniently operate the automatic entrance gate when arriving at or leaving the property.

SOMFY Keygo RTS for Swing Gate Motors

The Keygo RTS can also operate compatible SOMFY RTS swing gate automation. Depending on the controller configuration, separate channels may be assigned to supported functions such as full gate opening or other programmed commands.

SOMFY Keygo RTS for Garage Door Openers

The SOMFY Keygo 4 RTS is widely suited to compatible SOMFY RTS garage door automation. Its large central button provides convenient everyday garage-door operation while the remaining channels can be used for other compatible RTS products.

Compatible SOMFY DEXXO RTS garage door systems can use Keygo RTS transmitters when configured with the appropriate RTS control system.

Control Multiple RTS Products with One Remote

With four channels, one Keygo RTS can reduce the need to carry several separate remote controls. For example, where the installed systems are compatible and correctly programmed, different buttons can be assigned to a driveway gate, garage door and other RTS automation functions.

Replacement SOMFY Keygo RTS Remote

The Keygo 4 RTS can be used as an additional or replacement SOMFY remote control for compatible RTS automation systems.

Before ordering a replacement, confirm that your existing gate motor, garage door opener or external receiver uses SOMFY RTS 433.42 MHz technology. The similar appearance of another SOMFY remote does not by itself guarantee compatibility.

SOMFY Keygo 4 RTS Remote Control UAE

We supply SOMFY Keygo 4 RTS remote controls throughout the UAE for compatible SOMFY automatic gate and garage door systems.

Remote supply, programming assistance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm that the installed SOMFY motor or receiver uses RTS 433.42 MHz technology. If you are unsure, provide the gate motor model, receiver model or a clear photo of your existing remote.
