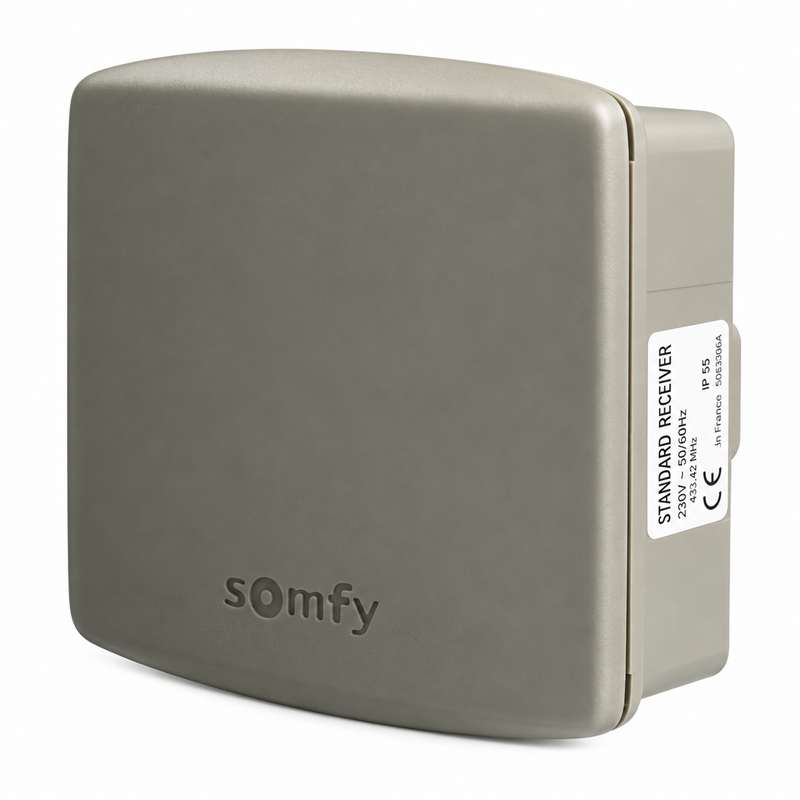

SOMFY Standard Receiver RTS 2-Channel

SOMFY Standard Receiver RTS 1841022 UAE

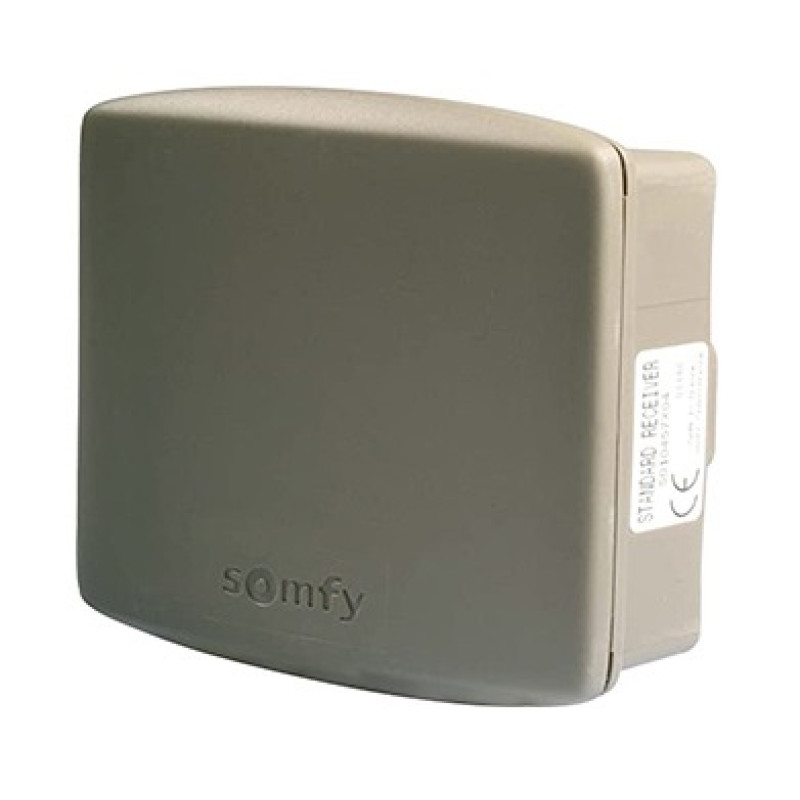

SOMFY Standard Receiver RTS, reference 1841022, is a professional 2-channel radio receiver designed to add SOMFY RTS wireless remote-control capability to compatible gate motors and other automation systems. The receiver operates with Radio Technology Somfy (RTS) and can provide remote commands through its two dry-contact outputs.

Operating from a 24V AC/DC power supply, the SOMFY Standard Receiver RTS is particularly useful when a compatible gate motor or automation controller does not have an integrated SOMFY RTS receiver. It allows compatible SOMFY RTS transmitters to provide wireless commands to suitable third-party control boards through dry-contact inputs.

SOMFY RTS Receiver Key Features

• Original SOMFY Standard Receiver RTS
• SOMFY reference: 1841022
• 2-channel radio receiver
• Radio technology: SOMFY RTS
• Designed for compatible SOMFY RTS transmitters
• Two dry-contact outputs
• Suitable for compatible gate automation control boards
• Can add SOMFY RTS remote control to compatible third-party automation
• Power supply: 24V AC/DC
• Open-field radio range: up to approximately 70 metres
• Compatible with appropriate SOMFY Keytis NS RTS transmitters
• Two independent channels for separate commands
• Compact enclosure for convenient installation
• Dimensions: 80 × 80 × 45 mm

SOMFY Standard Receiver RTS Technical Specifications

2-Channel SOMFY RTS Receiver

The SOMFY Standard Receiver RTS 1841022 is a two-channel receiver, allowing two independent radio commands to be configured according to the connected automation system.

For example, one channel may be connected to the main gate command while the second channel can be used for another supported command or a second compatible automation input.

Two Dry-Contact Outputs

One of the main advantages of the SOMFY Standard Receiver RTS is its two dry-contact outputs. A dry-contact output behaves like a switch contact and can be connected to an appropriate command input on a compatible gate or automation control board.

This makes the receiver particularly useful for integrating SOMFY RTS remote controls with compatible automation systems that were not originally supplied with an integrated SOMFY RTS radio receiver.

Add SOMFY RTS Remote Control to a Gate Motor

The external receiver can be used to add SOMFY RTS wireless remote-control functionality to a compatible automatic gate system.

The receiver is powered from the appropriate 24V accessory supply and its dry-contact output is connected to the required command input of the gate controller. Compatible SOMFY RTS transmitters can then be programmed into the receiver.

Important: The gate control board must provide a suitable command input and compatible power supply. Always check the wiring diagram of the installed gate controller before connection.

24V AC/DC External Gate Receiver

The SOMFY 1841022 receiver operates from a 24V AC or DC supply, making it suitable for many compatible gate automation control systems that provide a 24V accessory output.

Before installation, confirm the available accessory voltage and maximum current from the gate motor control board.

SOMFY RTS Radio Technology

The Standard Receiver uses Radio Technology Somfy (RTS) and is designed for compatible SOMFY RTS transmitters.

This allows users to operate a compatible gate automation system using supported SOMFY RTS remote controls after the transmitter has been correctly memorised into the receiver.

Up to 70 Metres Open-Field Range

SOMFY specifies an operating range of up to approximately 70 metres in open-field conditions for the Standard Receiver RTS.

Actual radio range can be lower depending on installation position, surrounding walls, metal structures, electrical interference, transmitter battery condition and other environmental factors.

SOMFY RTS Receiver for Sliding Gates

The SOMFY Standard Receiver RTS can be connected to compatible sliding gate motor control boards where a suitable dry-contact command input and 24V supply are available.

This can be useful when a customer wants to use compatible SOMFY RTS remote controls with an existing sliding gate automation system.

SOMFY RTS Receiver for Swing Gates

The receiver can also be integrated with compatible swing gate automation controllers. Depending on the control board, one receiver channel can be assigned to a main step-by-step gate command while another can be used for a second supported function.

Use SOMFY Remotes with Compatible Third-Party Gate Motors

Because the receiver provides dry-contact outputs, it can potentially be integrated with many compatible gate control boards regardless of the gate motor brand, provided the controller has the correct command input and electrical requirements.

This means a property using a compatible third-party gate motor may still be able to use supported SOMFY RTS transmitters by installing the external SOMFY Standard Receiver RTS.

Compatible SOMFY RTS Remote Controls

The Standard Receiver RTS is designed for compatible SOMFY RTS transmitters. Compatibility should always be confirmed for the exact remote model and receiver generation before programming.

• SOMFY Keytis NS RTS transmitters
• Compatible SOMFY Keygo RTS transmitters
• Other compatible SOMFY RTS control points

SOMFY RTS Receiver Programming

Compatible SOMFY RTS transmitters must be memorised into the Standard Receiver RTS before they can operate the connected automation system.

The exact programming procedure depends on the transmitter and required receiver channel. After programming, each channel should be tested to confirm that the connected gate controller responds correctly.

SOMFY Standard Receiver RTS Applications

• Automatic sliding gates
• Automatic swing gates
• Compatible garage door automation
• Compatible parking barriers
• Residential gate automation
• Commercial gate automation
• Adding SOMFY RTS remotes to compatible third-party controllers
• Replacement external radio receiver installations

SOMFY Standard Receiver RTS UAE

We supply SOMFY Standard Receiver RTS 1841022 throughout the UAE for compatible automatic gate and access automation applications.

Supply, installation, remote programming and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm the installed gate control board has a compatible command input and suitable 24V power supply. If you are unsure, provide the gate motor and control-board model so compatibility can be checked before installation.
