SOMFY ELIXO 800 230V RTS Sliding Gate Motor

SOMFY ELIXO 800 230V RTS Sliding Gate Motor UAE

SOMFY ELIXO 800 230V RTS is a powerful automatic sliding gate motor designed for large gates weighing up to 800 KG and measuring up to 10 metres. Engineered by SOMFY for dependable residential and collective gate automation, the ELIXO 800 combines a robust 230V AC motor, built-in position encoder and SOMFY RTS 433.42 MHz radio technology.

The SOMFY ELIXO 800 sliding gate motor is suitable for villas, residential compounds, apartment entrances and compatible commercial properties. With 800N thrust, full-steel motor reducer gearing and precise electronic management of movement and slowdown phases, it provides a strong and reliable solution for automatic sliding gates throughout the UAE.

SOMFY ELIXO 800 Key Features

• Original SOMFY sliding gate motor
• Model: ELIXO 800 230V RTS
• Maximum gate weight: 800 KG
• Maximum gate length: 10 metres
• Mains supply: 220–230V AC / 50–60Hz
• Motor voltage: 230V AC
• Maximum power consumption: 300W
• Maximum thrust: 800N
• Built-in position encoder
• Precise management of movement and slowdown phases
• Full-steel motor reducer gear
• Up to 100 opening and closing cycles per day
• SOMFY RTS radio technology
• Radio frequency: 433.42 MHz
• Up to 128 radio channels
• Adjustable obstacle impact force
• Dedicated photocell safety input
• Dedicated safety-edge input
• Manual release for emergency gate operation
• Protection rating: IP44
• Operating temperature: -20°C to +60°C
• Suitable for large residential and collective sliding gates

SOMFY ELIXO 800 Technical Specifications

800 KG Heavy-Duty Sliding Gate Motor

The SOMFY ELIXO 800 230V RTS is designed to automate compatible sliding gates weighing up to 800 KG. Its higher capacity makes it suitable for larger villa gates, residential compounds and collective entrances where a smaller residential sliding gate operator may not provide sufficient capacity.

Gate motor selection should not be based on weight alone. Gate length, wheel condition, track alignment, gear rack condition, mechanical resistance and daily operating frequency should also be checked before installation.

For Sliding Gates Up to 10 Metres

SOMFY specifies the ELIXO 800 for compatible sliding gates measuring up to 10 metres long and weighing up to 800 KG.

For long gates, correct track alignment and smooth wheel movement are especially important. The gate should move freely by hand before the automatic motor is installed.

230V AC Sliding Gate Motor

The SOMFY ELIXO 800 uses a 230V AC motor with maximum power consumption of approximately 300W.

This robust mains-powered configuration is designed for larger sliding gates and should not be confused with the specifications of other ELIXO models using different motor technologies.

800N Maximum Thrust

The ELIXO 800 provides a maximum thrust force of approximately 800N, providing the mechanical force required to move compatible sliding gates within its specified capacity.

Motor thrust should never be used to compensate for damaged wheels, an uneven track, incorrect gate alignment or excessive mechanical resistance.

Built-In Position Encoder

The SOMFY ELIXO 800 incorporates a built-in position encoder for precise management of automatic gate movement.

The encoder allows the control system to manage gate travel and slowing phases accurately, helping provide smooth and controlled movement during opening and closing.

Full-Steel Motor Reducer Gear

SOMFY equips the ELIXO 800 with a full-steel motor reducer gear designed for strength and durability in large sliding gate applications.

This robust mechanical construction helps make the ELIXO 800 suitable for gates requiring higher capacity and more frequent operation.

Up to 100 Operations Per Day

SOMFY specifies the ELIXO 800 for up to approximately 100 opening and closing operations per day.

This higher operating capacity makes the ELIXO 800 suitable not only for private villa entrances but also for compatible collective and shared-access gate applications.

SOMFY RTS 433.42 MHz Radio Control

The ELIXO 800 230V RTS incorporates SOMFY RTS radio technology operating at 433.42 MHz.

The radio system can memorize up to 128 channels, providing capacity for multiple compatible SOMFY RTS transmitters and control points.

SOMFY Remote Control Compatibility

The ELIXO 800 can be operated using compatible SOMFY RTS remote controls, including suitable Keytis and Keygo RTS transmitters according to the supplied package and installed configuration.

Before adding a replacement transmitter, confirm that the remote uses compatible SOMFY RTS technology and the correct radio frequency.

Adjustable Obstacle Impact Force

The SOMFY ELIXO 800 provides adjustable obstacle impact force to help limit risk when an obstacle is encountered during automatic gate movement.

The motor also incorporates dedicated safety inputs for compatible photocells and safety edges. All safety functions should be configured and tested by a qualified installer before normal gate operation.

Photocell Safety Sensors

Compatible SOMFY photocell sensors can be connected to the ELIXO 800 control system to monitor the vehicle entrance.

When a person, vehicle or object interrupts the photocell beam, the controller responds according to its programmed safety configuration.

Safety Edge Connection

The ELIXO 800 also provides a dedicated input for a compatible safety edge. A safety edge can provide additional protection at appropriate points of the moving gate.

The required safety devices depend on the gate design, site conditions and installation configuration.

Manual Emergency Release

The SOMFY ELIXO 800 provides a manual release system so the gate can be disengaged from the motor when manual operation is required.

This allows the sliding gate to be moved manually during a power failure, maintenance or troubleshooting.

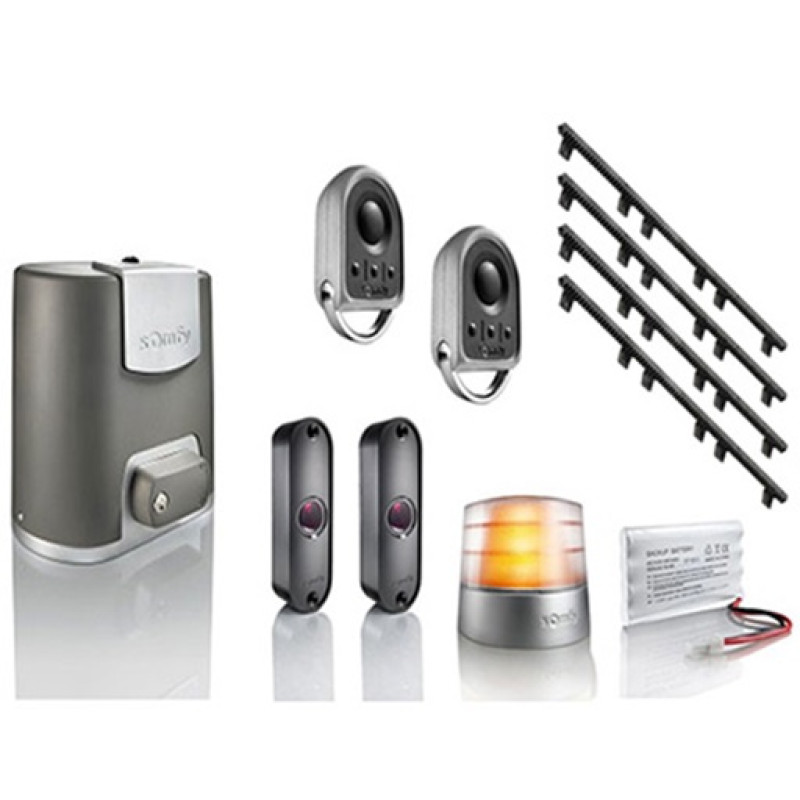

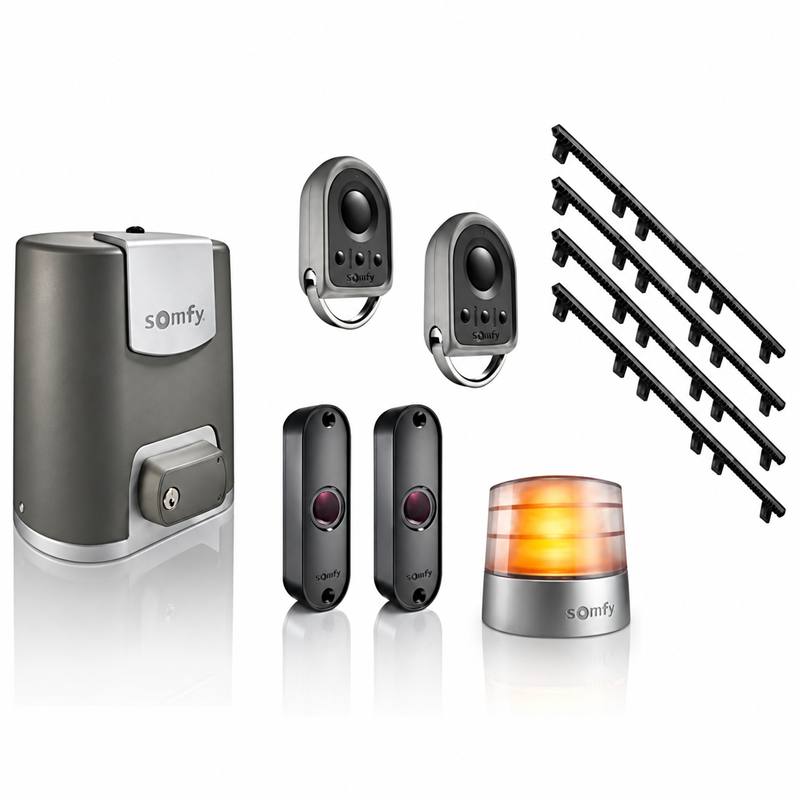

SOMFY ELIXO 800 Package Includes

• 1 × SOMFY ELIXO 800 230V RTS sliding gate motor
• 2 × SOMFY Keytis RTS remote controls
• 1 × SOMFY Orange flashing warning light
• 1 × Pair SOMFY Master Pro Bitech photocell sensors
• 4 × 1 metre nylon gate racks
• 1 × Push button

Note: The above represents our UAE package configuration. Package contents can vary according to stock or selected installation package. Confirm the exact supplied accessories before ordering.

SOMFY Official ECO Comfort Pack

SOMFY also offers an official ELIXO 800 230V RTS ECO Comfort Pack. The official pack includes the ELIXO 800 motor, metal template, two Keytis RTS remote controls, Orange Light Eco Pro 230V and Master Pro Bitech photocells.

Our UAE package may include additional accessories such as gate racks and push button depending on the selected package.

SOMFY ELIXO 800 Applications

• Large villa sliding gates
• Residential automatic gates
• Residential compounds
• Apartment and collective entrances
• Private driveway gates
• Compatible commercial entrances
• Automatic parking entrances
• Sliding gates up to 800 KG
• Sliding gates up to 10 metres

SOMFY ELIXO 800 Installation UAE

Professional installation of the SOMFY ELIXO 800 230V RTS sliding gate motor is available for villas, residential compounds and compatible commercial properties throughout the UAE.

Installation can include motor mounting, nylon or steel gear rack installation, electrical wiring, photocell installation, flashing light connection, SOMFY RTS remote programming, gate travel setup, safety adjustment and complete operational testing.

SOMFY ELIXO 800 230V RTS Gate Motor UAE

We supply SOMFY ELIXO 800 230V RTS sliding gate motors throughout the UAE with professional installation, programming, maintenance and technical support.

Supply and installation support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm the gate weight, gate length, wheel and track condition, gear rack condition and expected daily operating frequency. For replacement installations, confirm the exact SOMFY ELIXO model and motor voltage before ordering.
