SOMFY DEXXO PRO 1000 RTS Garage Door Opener
Price 1,300 AEDIn Stock
SOMFY DEXXO PRO 1000 RTS Garage Door Opener UAE
SOMFY DEXXO PRO 1000 RTS is a powerful automatic garage door opener designed for sectional, up-and-over and compatible lateral-opening garage doors up to 15 m². With a maximum traction force of 1000N, 24V DC reduction gear and SOMFY RTS 433.42 MHz radio technology, the DEXXO PRO 1000 provides reliable and convenient garage door automation for villas, residential properties and compatible semi-intensive applications.
The SOMFY DEXXO PRO 1000 RTS garage door motor offers obstacle detection, adjustable opening and closing speeds, partial opening, automatic closing, progressive start-up and programmable slowdown. Different rail options are available to suit the garage door size and required operating frequency.
SOMFY DEXXO PRO 1000 RTS Key Features
- Original SOMFY garage door opener
- Model: DEXXO PRO 1000 RTS
- Reference: 1216270
- Maximum garage door area: 15 m²
- Peak traction force: 1000N
- Starting force: 800N
- Mains power supply: 230V AC / 50Hz
- Reduction gear supply: 24V DC
- Maximum opening speed: 18 cm/s
- SOMFY RTS radio technology
- Radio frequency: 433.42 MHz
- Radio memory: 32 channels
- Built-in obstacle detection
- Adjustable obstacle detection sensitivity
- Automatic closing function
- Partial opening / ventilation position
- Progressive start-up
- Programmable opening and closing speed
- Programmable slowdown before closing position
- Compatible with chain, belt and high-performance rails
- Optional backup battery connection
- External lighting control up to 500W
- Cycle counter and fault-history diagnostics
- Operating temperature: -20°C to +60°C
SOMFY DEXXO PRO 1000 RTS Technical Specifications
| Brand | SOMFY |
| Model | DEXXO PRO 1000 RTS |
| Reference | 1216270 |
| Product Type | Automatic Garage Door Opener |
| Maximum Door Area | 15 m² |
| Peak Traction Force | 1000N |
| Starting Force | 800N |
| Mains Supply | 230V AC / 50Hz |
| Reduction Gear Supply | 24V DC |
| Maximum Speed | 18 cm/s |
| Standard Rail Usage | Up to 20 Cycles / Day |
| High-Performance Rail Usage | Up to 50 Cycles / Day |
| Radio Technology | SOMFY RTS |
| Radio Frequency | 433.42 MHz |
| Radio Memory | 32 Channels |
| Operating Temperature | -20°C to +60°C |
| Protection | IP20 – Indoor Dry Location |
| Minimum Height Under Lintel | 35 mm |
1000N Powerful Garage Door Motor
The SOMFY DEXXO PRO 1000 RTS delivers up to 1000N peak traction force with approximately 800N starting force. This makes it the higher-capacity version of the DEXXO PRO RTS range and suitable for compatible larger garage doors.
Correct motor selection should consider the garage door dimensions, weight, balance, spring condition, rail configuration and expected daily operating frequency.
Garage Doors Up to 15 m²
The DEXXO PRO 1000 RTS is designed for compatible garage doors with an area of up to 15 square metres.
It can be used with compatible sectional garage doors, up-and-over doors and lateral-opening garage doors when installed with the appropriate SOMFY rail and accessories.
24V DC Garage Door Automation
The DEXXO PRO 1000 uses a 24V DC reduction gear system supplied from the motor's 230V mains-powered control unit. This provides controlled automatic movement together with advanced electronic safety and programming functions.
Fast Opening Up to 18 cm/s
The SOMFY DEXXO PRO 1000 RTS provides a maximum movement speed of up to 18 cm/s.
The opening and closing speeds can be programmed according to the garage door installation, allowing the installer to configure movement for reliable and controlled operation.
SOMFY RTS 433.42 MHz Radio Technology
The DEXXO PRO 1000 incorporates SOMFY RTS radio technology operating at 433.42 MHz.
The controller provides memory for up to 32 radio channels, allowing compatible SOMFY RTS remote controls and control points to be programmed into the garage door opener.
Obstacle Detection
The DEXXO PRO 1000 incorporates electronic obstacle detection. Obstacle detection sensitivity can be adjusted through multiple levels according to the garage door installation.
The response following obstacle detection can also be programmed for partial or full reopening according to the required configuration.
Automatic Closing
The SOMFY DEXXO PRO 1000 supports automatic closing with a programmable closing delay.
Automatic closing should only be activated after the required safety devices have been correctly installed, configured and tested.
Partial Opening & Ventilation
A programmable partial opening position allows the garage door to be opened only partially when full vehicle access is not required.
This function can be useful for ventilation or other situations where complete garage door opening is unnecessary.
Progressive Start & Slowdown
The DEXXO PRO 1000 provides progressive start-up and programmable slowdown near the end of travel.
These functions help provide smoother garage door movement and can reduce abrupt mechanical movement during normal opening and closing.
Chain, Belt & High-Performance Rail Options
The SOMFY DEXXO PRO 1000 RTS can be installed with different rail systems according to the garage door and usage requirements:
- Chain Rail – robust standard transmission
- Belt Rail – suitable where quieter operation is preferred
- High-Performance Rail – designed for higher operating frequency
SOMFY provides rail lengths of approximately 2.9 metres and 3.5 metres, depending on the required installation.
Standard vs High-Performance Rail
With a standard rail, SOMFY specifies up to approximately 20 opening/closing cycles per day, with the system tested for 36,500 cycles.
With the high-performance rail, usage can increase to approximately 50 cycles per day, with testing up to 90,000 cycles.
Optional Backup Battery
The DEXXO PRO 1000 provides an input for a compatible SOMFY backup battery pack. With the appropriate battery installed, the garage door can continue operating for a limited number of cycles during a mains power failure.
SOMFY specifies approximately 24 hours of autonomy and 5 to 10 operating cycles, depending on the garage door, with approximately 48 hours required for charging.
Advanced Diagnostics
The DEXXO PRO control system records useful information for installation and maintenance, including the total cycle counter, cycles involving obstacle detection, number of stored radio channels and history of the last 10 recorded faults.
This diagnostic information can help technicians troubleshoot garage door automation problems more efficiently.

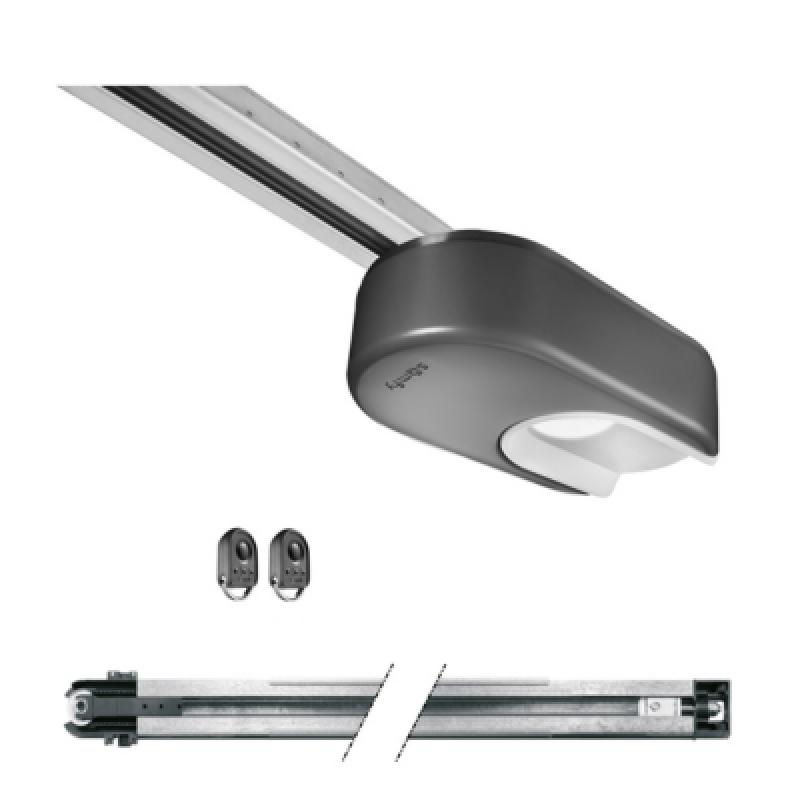

SOMFY DEXXO PRO 1000 RTS Kit Includes
- 1 × SOMFY DEXXO PRO 1000 RTS Garage Door Motor
- 2 × SOMFY KEYGO RTS Remote Controls
- 1 × SOMFY 3 Metre Rail
- 1 × Push Button
Note: The above is the package currently listed on our UAE product page. Package contents may vary according to stock or selected installation requirements. Confirm the exact rail and accessories before ordering.
SOMFY DEXXO PRO 800 vs DEXXO PRO 1000 RTS
| Specification | DEXXO PRO 800 RTS | DEXXO PRO 1000 RTS |
|---|---|---|
| Peak Traction Force | 800N | 1000N |
| Starting Force | 650N | 800N |
| Maximum Speed | 18 cm/s | 18 cm/s |
| Radio | RTS 433.42 MHz | RTS 433.42 MHz |
| Radio Memory | 32 Channels | 32 Channels |
The main difference is motor force: the DEXXO PRO 1000 RTS provides 1000N peak force and 800N starting force, compared with 800N / 650N for the DEXXO PRO 800 RTS.
SOMFY DEXXO PRO 1000 Applications
- Villa garage doors
- Residential sectional garage doors
- Up-and-over garage doors
- Lateral-opening garage doors
- Automatic residential garage doors
- Garage doors up to 15 m²
- Compatible semi-intensive garage door applications
SOMFY DEXXO PRO 1000 Installation UAE
Professional installation of the SOMFY DEXXO PRO 1000 RTS garage door opener is available throughout the UAE.
Installation can include motor and rail mounting, garage door connection, safety setup, travel programming, SOMFY RTS remote programming, obstacle detection adjustment, automatic closing configuration, partial opening setup and complete operational testing.
SOMFY DEXXO PRO 1000 RTS UAE
We supply SOMFY DEXXO PRO 1000 RTS garage door openers throughout the UAE with professional installation, programming, maintenance and technical support.
Supply and installation support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Confirm the garage door type, dimensions, door balance, required rail length and expected daily operating frequency. For replacement installations, confirm the exact SOMFY DEXXO model and RTS radio system before ordering.
