SOMFY ELIXO 2000 230V RTS Sliding Gate Motor

SOMFY ELIXO 2000 230V RTS Sliding Gate Motor UAE

SOMFY ELIXO 2000 230V RTS is a heavy-duty automatic sliding gate motor engineered for large gates weighing up to 2,000 KG and measuring up to 20 metres. Designed by SOMFY for intensive-use gate automation, the ELIXO 2000 combines a powerful 230V AC motor, full-steel reduction gearing, oil-bath lubrication and a built-in position encoder for precise gate movement.

The SOMFY ELIXO 2000 sliding gate motor is an excellent solution for industrial facilities, warehouses, factories, commercial compounds, residential communities and other large vehicle entrances. With 750W maximum power consumption, 40 Nm maximum torque and 9 m/min gate speed, it is designed for demanding automatic sliding gate applications.

SOMFY ELIXO 2000 Key Features

• Original SOMFY heavy-duty sliding gate motor
• Model: ELIXO 2000 230V RTS
• Maximum gate weight: 2,000 KG
• Maximum gate length: 20 metres
• Power supply: 220–240V AC / 50–60Hz
• Maximum power consumption: 750W
• Maximum torque: 40 Nm
• Gate movement speed: 9 m/min
• Designed for very intensive use
• Duty rating: 100%
• Full-steel motor reducer gear
• Oil-bath lubrication
• Built-in position encoder
• Precise management of movement and slowdown phases
• Adjustable obstacle impact force
• Dedicated photocell safety inputs
• Dedicated safety-edge input
• Soft-stop function with adjustable area
• Quick start and run
• Motor installation selection for right or left side
• SOMFY RTS radio technology
• Radio frequency: 433.42 MHz
• Manual release using individual key
• Noise level: less than 70 dBA
• Suitable for commercial and industrial gate automation

SOMFY ELIXO 2000 Technical Specifications

2000 KG Heavy-Duty Sliding Gate Motor

The SOMFY ELIXO 2000 is designed for exceptionally large sliding gates weighing up to 2,000 KG. Its heavy-duty construction makes it suitable for applications where standard residential gate motors do not provide sufficient capacity or operating duty.

Typical installations include factories, warehouses, logistics facilities, industrial compounds, commercial buildings and large residential or collective entrances.

For Sliding Gates Up to 20 Metres

SOMFY specifies the ELIXO 2000 for compatible sliding gates measuring up to 20 metres in length and weighing up to 2,000 KG.

For gates of this size, correct mechanical condition is extremely important. The gate track, wheels, guide rollers, gear rack and structural alignment should all be checked before installing the motor.

230V Heavy-Duty Gate Motor

The SOMFY ELIXO 2000 operates from a 220–240V AC, 50/60Hz power supply and has a maximum power consumption of approximately 750W.

This high-capacity mains-powered design is engineered specifically for large and intensive-use sliding gate installations.

40 Nm Maximum Torque

The ELIXO 2000 provides a maximum torque of 40 Nm, delivering strong mechanical performance for compatible heavy sliding gates.

Motor capacity should never be used to compensate for a mechanically defective gate. A 2,000 KG sliding gate must move smoothly and freely along its complete travel before automation.

9 Metres Per Minute Gate Speed

The SOMFY ELIXO 2000 operates at a nominal gate movement speed of approximately 9 metres per minute.

This provides controlled movement for large gates while the electronic system manages acceleration, travel and slowdown phases.

Very Intensive 100% Use

One of the main advantages of the ELIXO 2000 is its suitability for very intensive use. SOMFY specifies the operator with a 100% type-of-use rating, making it suitable for demanding entrances requiring frequent gate operation.

This makes the ELIXO 2000 particularly appropriate for collective housing, commercial properties, factories, warehouses and other busy vehicle entrances.

Full-Steel Motor Reducer Gear

The SOMFY ELIXO 2000 incorporates a full-steel motor reducer gear designed for strength and durability in heavy gate applications.

This robust mechanical construction is one of the key differences between the ELIXO 2000 and smaller residential sliding gate operators.

Oil-Bath Lubrication

The ELIXO 2000 reduction system uses oil-bath lubrication. This provides continuous lubrication of the internal transmission components during operation and is particularly suitable for heavy-duty gate automation.

Built-In Position Encoder

The SOMFY ELIXO 2000 incorporates a built-in position encoder for precise electronic monitoring of gate movement.

The encoder allows accurate management of movement and slowdown phases, providing controlled gate travel during both opening and closing.

Soft Stop & Slowdown Control

The ELIXO 2000 provides an adjustable soft-stop area to help reduce abrupt gate movement as the gate approaches its final positions.

Combined with the built-in encoder, this allows more precise management of large and heavy sliding gates.

Adjustable Obstacle Impact Force

The SOMFY ELIXO 2000 provides adjustable obstacle impact force as part of its safety management system.

The appropriate force settings must be configured according to the gate installation and used together with the required external safety devices.

Photocell Safety Inputs

The ELIXO 2000 provides dedicated connections for compatible photocell safety sensors. Photocells monitor the gate entrance using an infrared beam and provide a safety signal to the controller when the protected area is obstructed.

For automatic or remote-controlled operation, the required safety devices should be installed and tested according to the applicable installation requirements.

Safety Edge Connection

A dedicated input is also provided for a compatible active safety edge. Safety edges can provide additional protection at appropriate points on a large moving sliding gate.

The correct safety configuration depends on the gate design, operating mode and installation environment.

SOMFY RTS 433.42 MHz Radio Technology

The ELIXO 2000 230V RTS incorporates SOMFY's RTS radio technology operating at 433.42 MHz.

Compatible SOMFY RTS transmitters can be programmed for convenient wireless operation of the automatic sliding gate.

Manual Emergency Release

The SOMFY ELIXO 2000 incorporates a manual release using an individual key. This allows the motor to be disengaged when manual gate movement is required.

The manual release is useful during power failure, maintenance or troubleshooting when the gate must be moved without automatic operation.

Auxiliary Output

The ELIXO 2000 provides an auxiliary output that can be used for compatible accessories such as lighting or pedestrian gate lock release, depending on the installation configuration.

ROGER? No – Original SOMFY ELIXO Heavy-Duty Automation

The ELIXO 2000 is part of SOMFY's professional gate automation range and is specifically engineered for heavy sliding gates. Always confirm the full model ELIXO 2000 230V RTS when ordering replacement motors, control components or compatible accessories.

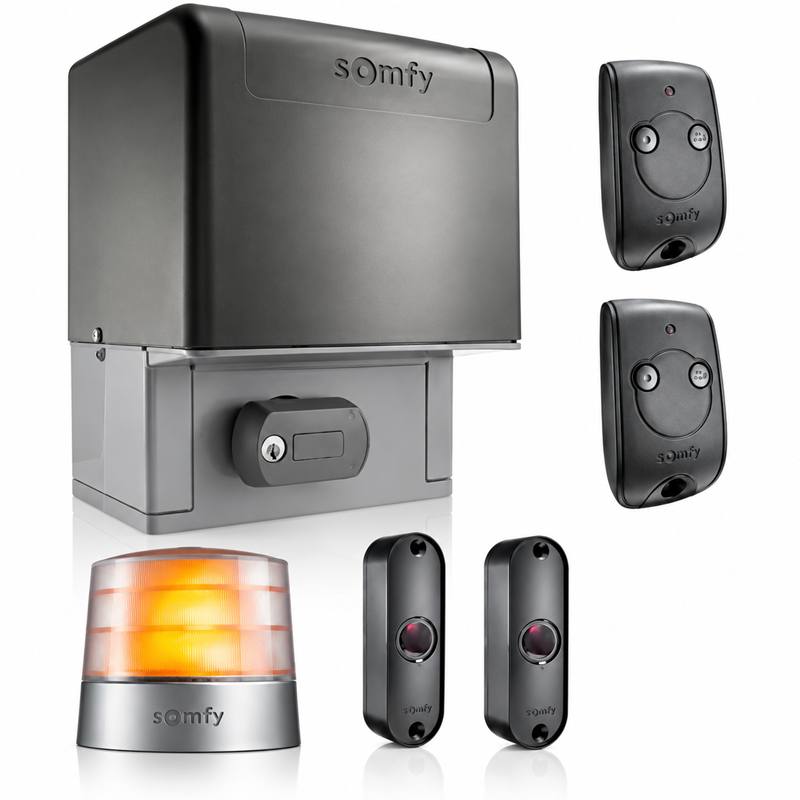

SOMFY ELIXO 2000 Package Includes

• 1 × SOMFY ELIXO 2000 230V RTS motor
• 2 × SOMFY Keytis 2 remote controls
• 1 × SOMFY Orange flashing light
• 1 × Pair SOMFY Master Pro Bitech photocell sensors
• 4 × 1 metre nylon gate racks
• 1 × Push button

Note: The above represents our UAE package currently listed for this product. Package contents may vary according to stock or installation requirements. Confirm the exact supplied accessories before ordering.

SOMFY ELIXO 2000 Applications

• Industrial sliding gates
• Factory entrances
• Warehouse gates
• Logistics centres
• Commercial compounds
• Collective housing entrances
• Large residential gates
• Automatic security gates
• Heavy sliding gates up to 2,000 KG
• Long sliding gates up to 20 metres

SOMFY ELIXO 2000 Installation UAE

Professional installation of the SOMFY ELIXO 2000 230V RTS sliding gate motor is available for industrial, commercial and large residential properties throughout the UAE.

Installation can include motor foundation and mounting, steel or compatible gear rack installation, electrical connection, photocell installation, safety-edge connection, flashing light installation, RTS remote programming, gate travel setup, force adjustment and complete operational testing.

SOMFY ELIXO 2000 Gate Motor UAE

We supply SOMFY ELIXO 2000 230V RTS heavy-duty sliding gate motors throughout the UAE with professional installation, programming, maintenance and technical support.

Supply and installation support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm the gate weight, total gate length, track and wheel condition, gear rack, power supply and expected operating frequency. For an existing SOMFY installation, confirm the exact ELIXO model and controller before ordering replacement parts.
