SOMFY Master Pro Bitech Photocell Sensors

SOMFY Master Pro Bitech Photocell Safety Sensors UAE

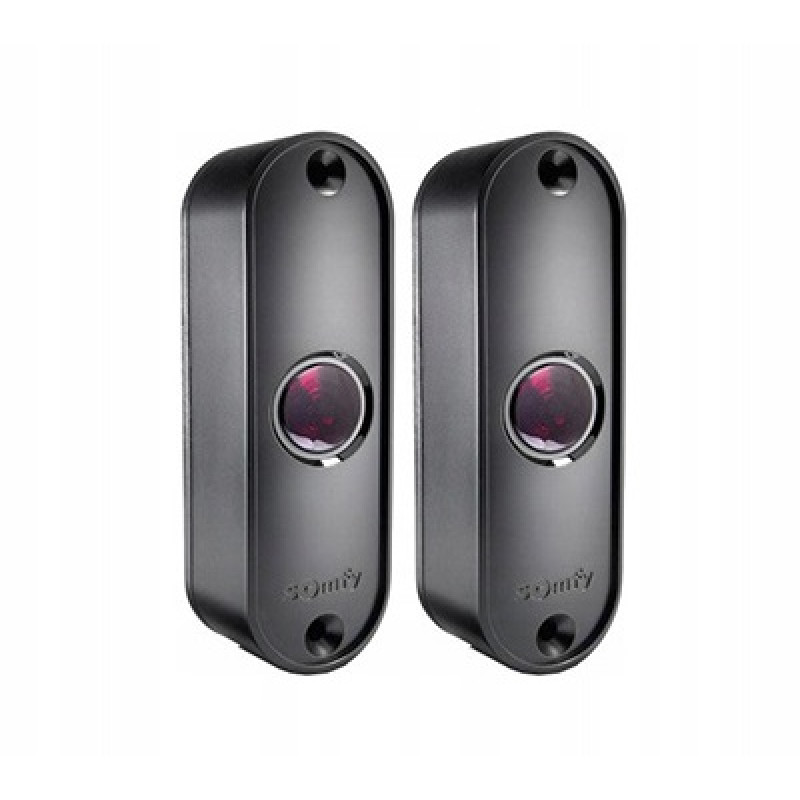

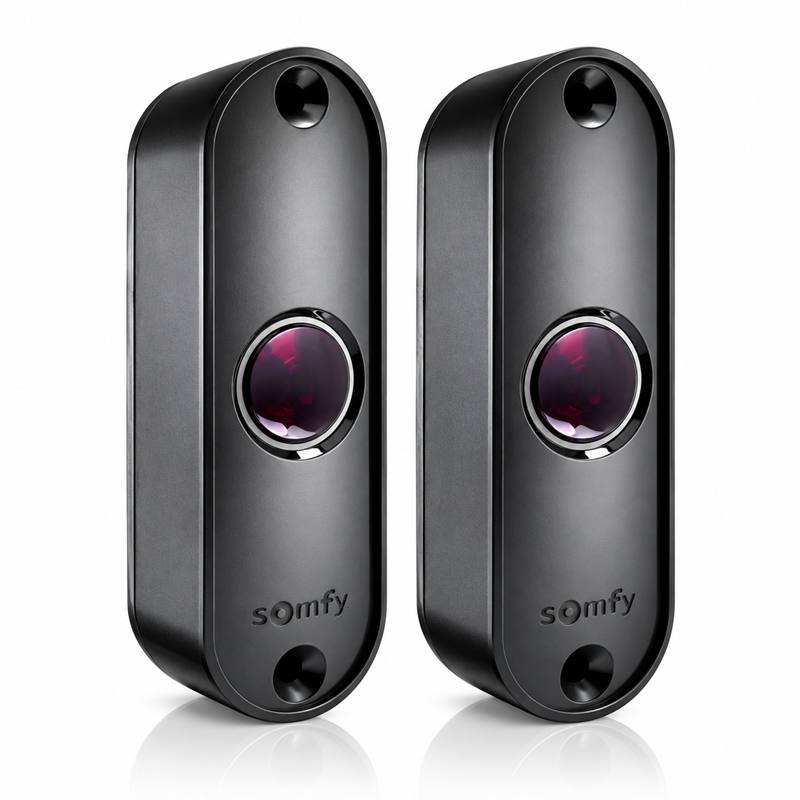

SOMFY Master Pro Bitech is a professional photocell safety sensor system designed for compatible SOMFY automatic gates, garage doors and access automation. Identified by SOMFY reference 1841155, the photocells detect obstacles within the protected entrance area and provide a safety signal to the automation control system.

The Master Pro Bitech photocells operate at 24V AC/DC and support both standard 4-wire operation and 2-wire BUS operation, providing flexible installation with compatible SOMFY gate automation systems. Their discreet narrow housing integrates neatly into residential and commercial gate entrances.

SOMFY Master Pro Bitech Key Features

• Original SOMFY photocell safety sensors
• Model: CELL MASTER PRO BITECH
• SOMFY reference: 1841155
• Designed for automatic gate and garage door safety
• Infrared obstacle detection
• Helps stop or reverse automation when an obstacle is detected
• Power supply: 24V AC/DC
• Standard 4-wire operation
• 2-wire BUS operation
• Protection rating: IP54
• Discreet and narrow housing
• Suitable for compatible SOMFY sliding gate motors
• Suitable for compatible SOMFY swing gate motors
• Suitable for compatible garage door automation
• Compatible with selected SOMFY parking barrier systems
• Optional protection cover available for applicable installations

SOMFY Master Pro Bitech Technical Specifications

Automatic Gate Obstacle Detection

The SOMFY Master Pro Bitech photocells are designed to help improve automatic gate safety by monitoring the entrance for obstacles. A photocell transmitter and receiver create an infrared beam across the protected opening.

If a vehicle, person or other obstacle interrupts the beam while the automation is moving, the photocells provide a safety signal to the compatible SOMFY control system. Depending on the controller programming, the gate or door can stop or reverse its movement.

24V AC/DC SOMFY Photocell Sensor

The Master Pro Bitech photocells operate from a 24V AC/DC power supply, making them suitable for compatible SOMFY automation control systems that provide the required accessory supply.

The correct power supply and terminal connections should always be confirmed from the control board installation manual before wiring the photocells.

4-Wire Photocell Connection

The SOMFY Master Pro Bitech supports a conventional 4-wire installation. This allows the photocells to be used with compatible automation systems using traditional photocell power and safety connections.

This configuration is useful when replacing an existing conventional safety photocell installation or when the compatible control panel requires standard photocell wiring.

2-Wire BUS Connection

A major advantage of the Master Pro Bitech design is support for 2-wire BUS operation with compatible SOMFY control systems.

This can simplify wiring by reducing the number of conductors required between the safety devices and compatible automation electronics. Always verify that the installed SOMFY control panel supports the required BUS connection before installation.

IP54 Protection

The SOMFY Master Pro Bitech has an IP54 protection rating. Its housing is designed for gate and access automation installations where the photocells may be exposed to normal outdoor environmental conditions.

Correct installation, cable entry sealing and mounting remain important for maintaining reliable long-term photocell operation.

Compact & Discreet Design

SOMFY designed the Master Pro Bitech with a narrow and discreet housing that integrates neatly into gate pillars, walls and garage door surroundings.

This is particularly useful for residential villas and modern entrances where the safety equipment should remain visually unobtrusive while still providing the required obstacle detection.

Optional Photocell Protection Cover

A compatible protection cover can be used in applicable installations to provide additional physical protection for the photocells against accidental impact and vandalism.

This can be useful for exposed vehicle entrances, commercial properties, parking areas and other locations where the photocells may be vulnerable to physical damage.

SOMFY Photocells for Sliding Gates

The Master Pro Bitech can be used with compatible SOMFY sliding gate automation. The photocells are normally installed across the vehicle entrance to detect obstacles before or during automatic gate movement.

SOMFY documentation lists Master Pro Bitech photocells as accessories for compatible ELIXO gate automation systems.

SOMFY Photocells for Swing Gates

The photocells are also suitable for compatible SOMFY swing gate motors. Depending on the gate design and risk areas, one or more photocell pairs may be required to provide appropriate safety coverage around the moving gate leaves.

SOMFY also lists Master Pro Bitech photocells with compatible IXENGO swing gate automation packages.

SOMFY Photocells for Garage Door Automation

The Master Pro Bitech is designed for obstacle detection in compatible automatic gate and garage door applications. When correctly connected to the appropriate SOMFY controller, interruption of the photocell beam can trigger the programmed safety response.

Compatible SOMFY Applications

• SOMFY sliding gate motors
• SOMFY swing gate motors
• SOMFY automatic driveway gates
• Compatible SOMFY garage door automation
• Compatible SOMFY parking barriers
• Residential gate entrances
• Commercial gate entrances
• Compatible SOMFY access automation systems

SOMFY Master Pro Bitech Installation

The transmitter and receiver should be mounted securely on opposite sides of the protected entrance and correctly aligned so that the infrared beam passes between the two photocells without obstruction.

After installation, the safety system should be tested by interrupting the photocell beam during multiple operating cycles and confirming that the gate or door responds according to the programmed safety function.

Photocell Maintenance

Keep the photocell lenses clean and free from dust, dirt and physical obstruction. The alignment and safety operation should also be checked periodically to ensure reliable obstacle detection.

SOMFY recommends checking that the cells operate correctly every 6 months and cleaning them regularly with a dry cloth.

SOMFY Master Pro Bitech Photocell Sensors UAE

We supply SOMFY Master Pro Bitech photocell sensors throughout the UAE for compatible SOMFY automatic gate, garage door and access automation systems.

Supply, installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm the installed SOMFY motor and control-board model to ensure compatibility and determine whether your installation requires standard 4-wire or compatible 2-wire BUS operation.
