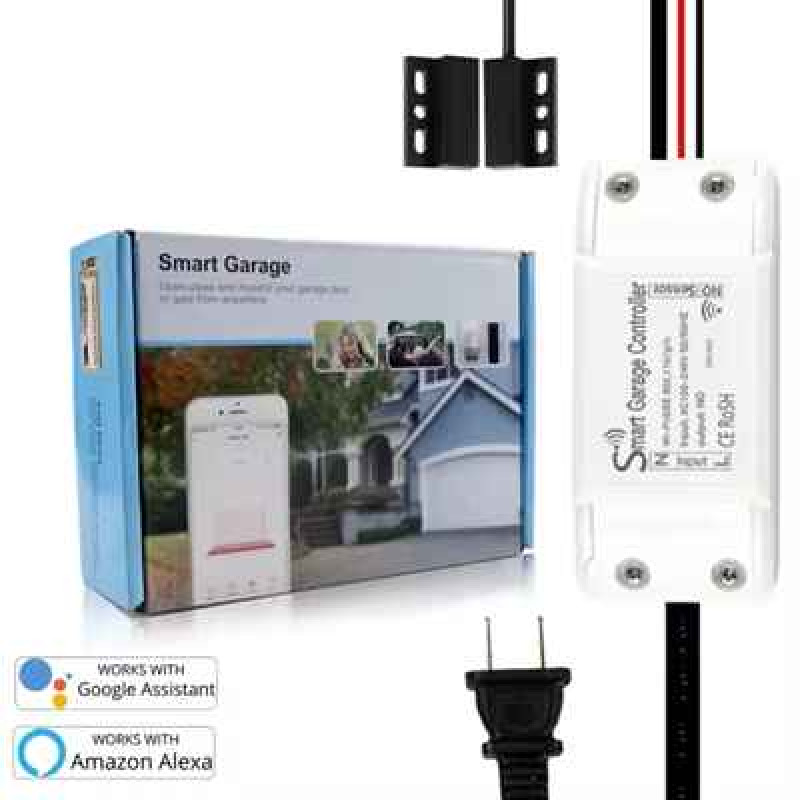

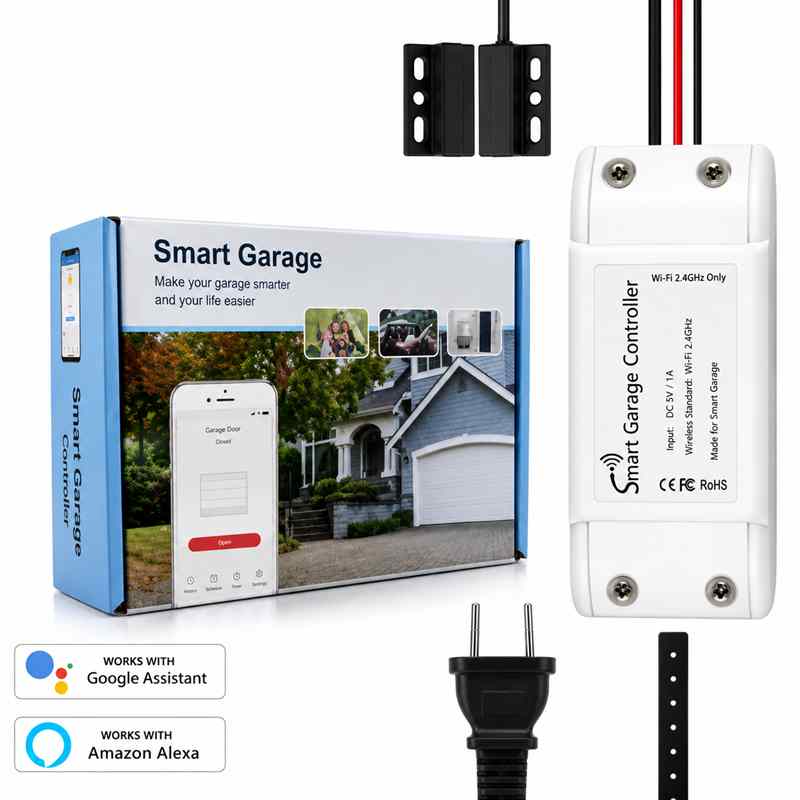

Tuya Smart WiFi Garage Door Opener Controller

Tuya Smart WiFi Garage Door Opener Controller UAE

Tuya Smart WiFi Garage Door Opener Controller is a compact smart access device designed to upgrade a compatible existing garage door opener with smartphone control. Using the Tuya Smart or Smart Life app, users can operate a compatible garage door through an internet-connected smartphone without replacing the existing garage door motor.

The controller connects to the compatible garage opener's external push-button command terminals and includes a magnetic door-position sensor for monitoring whether the garage door is open or closed. It is suitable for villas, residential garages and compatible commercial garage door systems throughout the UAE.

Smart Garage Controller Key Features

• Smartphone control for compatible garage door openers
• Tuya Smart app support
• Smart Life app support
• Remote garage door opening and closing
• Garage door open / closed status monitoring
• Magnetic door-position sensor
• Supports compatible Amazon Alexa integration
• Supports compatible Google Assistant integration
• WiFi connection – no separate hub required for the WiFi version
• Designed for 2.4 GHz WiFi networks
• Works with many garage motors using conventional push-button command terminals
• Can be installed alongside the existing wired wall button
• Suitable for residential and compatible commercial garage doors

Smart Garage Door Controller Technical Specifications

Control Your Garage Door from Your Smartphone

Once connected to a compatible garage door opener and paired with the WiFi network, the smart controller allows the garage door to be operated using the Tuya Smart or Smart Life mobile application.

This provides convenient remote access when you need to open or close the garage without using the original handheld remote control.

Garage Door Open & Closed Status Monitoring

The controller includes a magnetic door-position sensor. The sensor and magnet are installed on the moving door and fixed structure so the smart controller can determine whether the garage door is in its open or closed position.

The supplied sensor cable is approximately 5 metres long, allowing flexible positioning on many residential garage door installations.

Tuya Smart & Smart Life App

The controller works with the popular Tuya Smart and Smart Life platforms. These applications allow compatible smart-home products to be managed from a smartphone through one account.

After successful pairing, users can operate and monitor the garage door through the app when the garage controller has a working internet connection.

Amazon Alexa & Google Assistant

The smart garage controller supports integration with compatible Amazon Alexa and Google Assistant services through the Tuya / Smart Life ecosystem.

Available voice-control functions can depend on the smart-home platform, account settings and security restrictions configured by the voice-assistant provider.

2.4 GHz WiFi Connection

The WiFi version of this smart garage controller is designed for a 2.4 GHz WiFi network. A separate Zigbee gateway or smart-home hub is not required for this version.

A reliable WiFi signal should be available at the garage door motor location. Thick concrete walls, metal garage doors and long distances from the router can reduce wireless signal quality.

Compatible Garage Door Motors

This controller is designed to work with many garage door openers that accept a conventional external push-button command. The controller's command wires are normally connected in parallel with the existing wall push button.

A simple compatibility test can normally be performed by briefly connecting the appropriate push-button terminals. If this activates the garage opener in the same way as the wall button, the smart controller may be suitable.

Important Compatibility Information

This controller is not compatible with every garage door opener. Some modern garage motors use proprietary digital wall controls instead of a conventional two-wire push-button input.

Before ordering, confirm that the existing garage door opener provides suitable external command terminals. A separate interface may be required for motors using proprietary communication systems.

Do Not Connect to Motor Power Terminals

The smart garage controller is a command device; it does not directly drive the garage door motor.

The control wires should be connected to the appropriate command or push-button terminals specified by the garage door opener manufacturer. Do not connect the controller's command wires directly to the garage motor's mains power terminals.

Smart Garage Controller Applications

• Residential garage doors
• Villa garage door openers
• Sectional garage doors
• Overhead garage doors
• Compatible roller garage doors
• Private garages
• Office garage entrances
• Compatible commercial garage doors

Upgrade an Existing Garage Door to Smart Control

One of the main advantages of this controller is that you normally do not need to replace a working garage door opener just to add smartphone access.

When the existing motor has compatible external control terminals, the smart controller can be added to provide WiFi app control and door-position monitoring while retaining the original garage motor and compatible remote controls.

Smart Garage Door Opener Controller UAE

We supply smart WiFi garage door opener controllers throughout the UAE for compatible residential and commercial garage door automation systems.

Supply and professional installation support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Send us the brand and model of your existing garage door opener or a clear photo of its control-board terminals so compatibility can be checked before installation.
