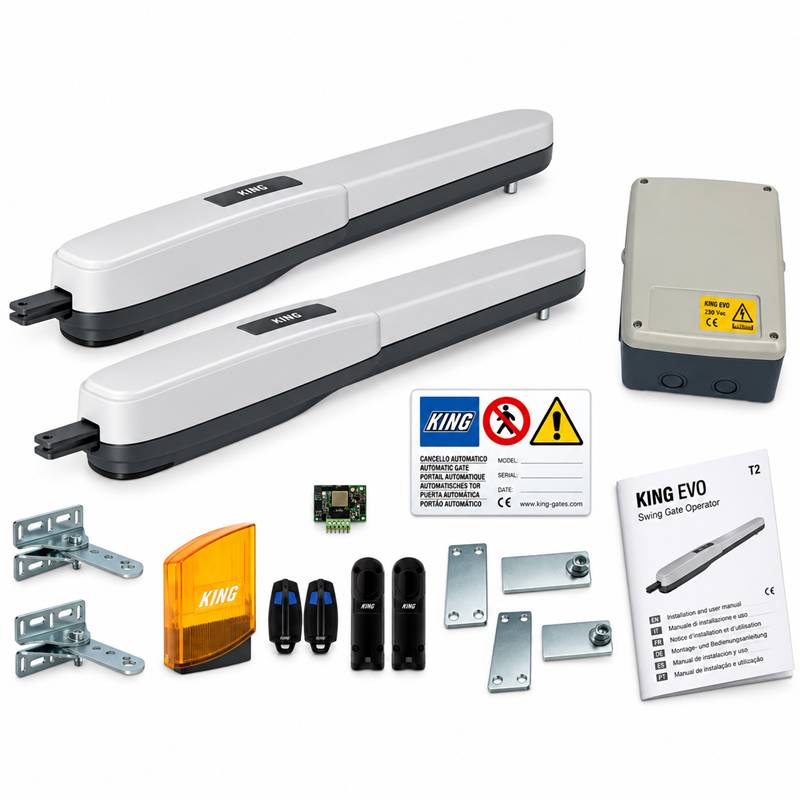

RIB KING EVO L SUPER 700 KG 7M Swing Gate Motor
Price 0 AEDIn Stock
RIB KING EVO L SUPER 700 KG 7M Swing Gate Motor UAE
RIB KING EVO L SUPER is a powerful 230V heavy-duty linear swing gate motor designed for large automatic swing gates with each gate leaf measuring up to 7 metres and weighing up to 700 KG. With a maximum thrust of 3950 N and a long 498 mm stroke, the KING EVO L SUPER is designed for demanding large-gate automation applications.
The RIB KING EVO L SUPER swing gate opener is suitable for large villas, residential compounds, commercial properties, company entrances and other applications requiring a strong linear operator for long and heavy swing gate leaves.
RIB KING EVO L SUPER Key Features
- Original RIB heavy-duty swing gate operator
- Model: KING EVO L SUPER
- Heavy-duty irreversible linear gate operator
- Maximum gate leaf weight: 700 KG
- Maximum gate leaf length: 7 metres
- Power supply: 230V
- Maximum thrust: 3950 N
- Maximum stroke: 498 mm
- Average 90° opening time: 26–33 seconds
- Actuator weight: 13.3 KG
- Suitable for single-leaf swing gates
- Suitable for double-leaf swing gates using two operators
- Designed for large and heavy gate leaves
- Professional residential and commercial gate automation
- Manual emergency release
- Compatible with suitable RIB control and safety accessories
RIB KING EVO L SUPER Technical Specifications
| Brand | RIB |
| Model | KING EVO L SUPER |
| Product Type | Heavy-Duty Linear Swing Gate Motor |
| Maximum Gate Leaf Weight | 700 KG per leaf |
| Maximum Gate Leaf Length | 7 Metres |
| Power Supply | 230V |
| Maximum Thrust | 3950 N |
| Maximum Stroke | 498 mm |
| Average Opening Time at 90° | 26–33 seconds |
| Actuator Weight | 13.3 KG |
| Gate Type | Single or Double Swing Gate |
700 KG Heavy-Duty Swing Gate Motor
The RIB KING EVO L SUPER is designed for large swing gate leaves weighing up to 700 KG each. Its powerful linear actuator makes it suitable for applications where a standard residential swing gate motor may not provide sufficient mechanical capacity.
For double swing gates, gate capacity must be calculated for each leaf individually. Each KING EVO L SUPER actuator operates one gate leaf, so the weight and dimensions of both leaves should be checked independently.
For Swing Gate Leaves Up to 7 Metres
The KING EVO L SUPER is suitable for compatible swing gate leaves measuring up to 7 metres long. This makes it an option for unusually large villa gates, compound entrances and compatible commercial swing gates.
Maximum gate length and maximum gate weight should not be considered independently. Actual motor suitability depends on the relationship between gate length and weight together with hinge geometry, wind load, gate construction, opening angle and operating frequency.
3950N Maximum Thrust
The RIB KING EVO L SUPER provides up to 3950 N maximum thrust, giving the actuator the mechanical force required for compatible large and heavy swing gate applications.
Motor force should never be used to compensate for damaged hinges, incorrect gate alignment or excessive mechanical resistance. Before automation, each gate leaf should move freely and smoothly by hand.
498 mm Long Stroke
The KING EVO L SUPER provides a maximum actuator stroke of 498 mm. The long stroke is particularly important when automating large swing gate leaves and allows the operator to work with suitable installation geometries.
Correct front and rear bracket positioning is essential. The installer should calculate the mounting dimensions according to the required opening angle and gate hinge position.
26–33 Second Opening Time
The average opening time for a 90-degree gate movement is approximately 26 to 33 seconds, depending on the installation geometry and operating configuration.
For a heavy 7-metre gate, controlled movement is more important than excessive speed. Correct installation helps provide smooth gate travel and reduces unnecessary mechanical stress on the gate, hinges and operator.
230V Heavy-Duty Swing Gate Operator
The RIB KING EVO L SUPER operates from a 230V power supply and is designed for professional heavy-duty swing gate automation.
The 230V configuration makes the KING EVO L SUPER suitable for fixed residential, commercial and compound gate installations where a powerful mains-powered linear actuator is required.
13.3 KG Heavy-Duty Actuator
Each KING EVO L SUPER actuator weighs approximately 13.3 KG, reflecting its substantial mechanical construction for large swing gate applications.
Because of the actuator size and the forces involved with large gate leaves, strong mounting brackets and structurally suitable gate posts are essential.
Single Swing Gate Automation
A single RIB KING EVO L SUPER actuator can be used to automate one compatible swing gate leaf.
The control system, mounting geometry and safety devices should be selected according to the dimensions, weight and required operating characteristics of the gate.
Double Swing Gate Automation
For a double-leaf entrance, two KING EVO L SUPER motors can be installed, with one actuator operating each swing gate leaf.
A compatible RIB double-motor control system can then coordinate opening and closing of both leaves, including appropriate gate-leaf delay where required.
Automatic Closing
When used with a compatible electronic control panel, the RIB KING EVO L SUPER system can be configured for automatic gate closing after a programmed pause time.
Automatic closing should only be enabled after suitable photocells and other required safety devices have been correctly installed, programmed and tested.
Pedestrian Opening
With a compatible double swing gate controller, a pedestrian opening function can be configured so that only one gate leaf opens when full vehicle access is unnecessary.
This is useful for villas and commercial properties where pedestrians regularly use the main vehicle entrance.
Photocell Safety Integration
The KING EVO L SUPER automation system can be combined with compatible photocell safety sensors. Photocells help the gate controller detect people, vehicles or objects within the protected gate area according to the programmed safety logic.
Large swing gates create a significant movement area, making correct positioning and testing of safety devices particularly important.
Manual Emergency Release
The RIB KING EVO L SUPER provides a manual release system so the actuator can be disengaged when manual gate operation is required.
This allows the gate to be operated manually during maintenance, troubleshooting or a mains power failure.
RIB KING EVO L SUPER Applications
- Large villa swing gates
- Heavy residential swing gates
- Residential compound entrances
- Large private driveway gates
- Commercial property entrances
- Company entrances
- Large single-leaf swing gates
- Large double-leaf swing gates
- Heavy gates requiring high actuator thrust
- Swing gate leaves up to 7 metres
- Swing gate leaves up to 700 KG
RIB KING EVO L SUPER Compatible Accessories
- Compatible RIB swing gate control board

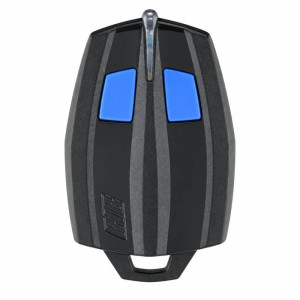

- RIB SUN remote controls

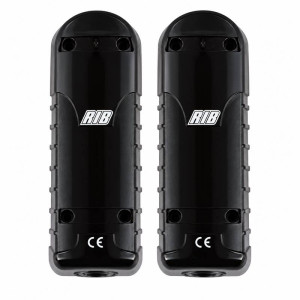

- RIB photocell safety sensors
- RIB SAIL flashing warning light
- Key selector
- Push button switch
- GSM gate opener
- Wi-Fi gate controller
- RFID access control system
- UHF long-range RFID reader
- Vehicle loop detector
RIB KING EVO L SUPER Installation UAE
Professional installation of the RIB KING EVO L SUPER heavy-duty swing gate motor is available for villas, residential compounds and compatible commercial properties throughout the UAE.
Installation can include site inspection, actuator mounting, heavy-duty bracket installation, control-board wiring, photocell installation, flashing light connection, remote programming, gate-leaf timing, automatic closing setup and complete operational testing.
Important Installation Requirements for Large Gates
For large gate leaves approaching the KING EVO L SUPER's maximum dimensions, professional site assessment is strongly recommended. The gate structure, hinges, pillars and mounting points must be capable of safely handling the forces generated during automatic operation.
Wind load is particularly important for long solid or partially enclosed gates. A 7-metre solid gate can create substantial wind resistance even when its actual weight is within the motor's nominal capacity.
RIB KING EVO L SUPER Swing Gate Motor UAE
We supply RIB KING EVO L SUPER heavy-duty swing gate motors throughout the UAE for large residential, compound and commercial swing gate automation.
Supply, professional installation, programming, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Confirm the length and weight of each gate leaf, hinge position, pillar dimensions, opening angle, gate construction, wind exposure and expected daily operating frequency. For very large gates, a site inspection is recommended before final motor selection.
