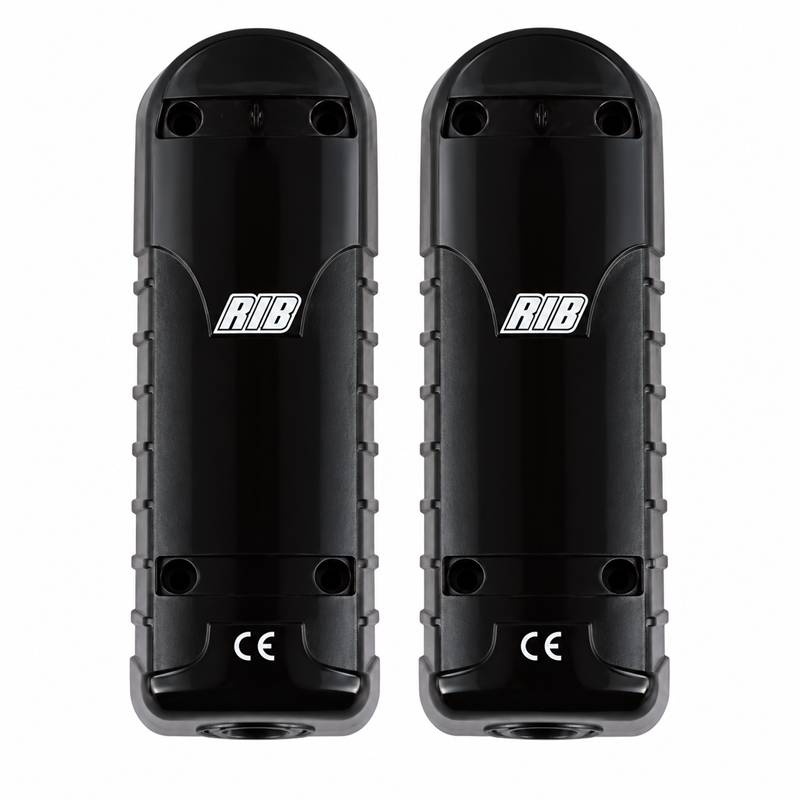

RIB FIT SLIM Photocell Safety Sensors
Price 250 AEDIn Stock
RIB FIT SLIM Photocell Safety Sensors UAE
RIB FIT SLIM is a technologically advanced pair of infrared photocell safety sensors designed for automatic gates, doors, parking barriers and other automation systems. Manufactured by RIB, the FIT SLIM photocells provide active safety by creating an infrared beam across the entrance and communicating with the automation control system when the beam is interrupted.
With a maximum operating range of up to 20 metres, compact wall-mounted construction and an AC synchronism function, the RIB FIT SLIM photocells are suitable for residential, commercial and professional gate automation installations throughout the UAE.
RIB FIT SLIM Key Features
- Original RIB photocell safety sensors
- Model: FIT SLIM
- Infrared transmitter and receiver photocell system
- Maximum range: 20 metres
- Designed for active automation safety
- Synchronism function with AC supply
- Wall-mounted installation
- Suitable for mounting on iron columns
- Suitable for mounting on other smooth surfaces
- Optional accessories available for installation on uneven masonry surfaces
- Compatible with optional RIB TX SYNCRO card
- TX SYNCRO can synchronize from 2 to 4 pairs
- Helps avoid interference between multiple infrared beams
- Suitable for automatic sliding gates
- Suitable for automatic swing gates
- Suitable for parking barriers
- Suitable for other compatible automatic openings
20 Metre Photocell Detection Range
The RIB FIT SLIM provides an infrared operating range of up to 20 metres, making it suitable for a wide variety of automatic gate and barrier entrances.
The transmitter and receiver are installed opposite each other so that an infrared beam passes across the protected entrance. Correct positioning and alignment of both photocells are essential for reliable operation.
Automatic Gate Safety Photocells
Photocells are an important part of an automatic gate safety system. The RIB FIT SLIM monitors the protected area using an infrared beam between the transmitter and receiver.
When a vehicle, person or other object interrupts the beam, the photocell system sends a signal to the compatible gate control board. The control board then responds according to its programmed safety logic.
Depending on the controller configuration, this may prevent closing or cause the automation to respond appropriately when an obstacle is detected.
Infrared Transmitter & Receiver
The RIB FIT SLIM system uses a pair of photocells consisting of a transmitter (TX) and receiver (RX). The transmitter generates the infrared beam while the receiver continuously monitors the signal.
For dependable operation, the TX and RX units should be correctly positioned, aligned and connected according to the RIB installation instructions and the requirements of the automation control board.
AC Synchronism Function
One of the important features of the RIB FIT SLIM photocells is their synchronism function when operating with alternating current (AC).
Synchronization is particularly useful in installations where multiple photocell pairs are installed close to one another, helping provide more dependable safety detection.
RIB TX SYNCRO Compatibility
For installations requiring several photocell pairs, RIB provides the optional TX SYNCRO synchronization card.
The TX SYNCRO card can synchronize from 2 to 4 pairs of RIB FIT SLIM photocells. RIB specifies that the TX SYNCRO operates with both AC and DC and is designed to help prevent interference between the infrared beams of adjacent photocell pairs.
Multiple Photocell Installation
Large or complex automatic gate entrances may require more than one photocell pair. For example, additional sensors can be positioned at different points around the gate movement area depending on the site design and safety requirements.
Where multiple RIB FIT SLIM pairs are installed, the appropriate synchronization arrangement should be used to reduce the possibility of one infrared transmitter interfering with another receiver.
Wall-Mounted Photocell Sensors
The RIB FIT SLIM is designed primarily for wall-mounted installation. RIB specifies that the photocells can be fixed directly onto iron columns and other smooth surfaces.
This makes them suitable for installation on gate posts, metal columns and other appropriate mounting surfaces around automatic entrances.
Installation on Masonry Walls
For uneven masonry surfaces, RIB provides suitable mounting accessories that allow the FIT photocells to be installed more effectively.
A secure and level mounting surface helps maintain correct alignment between the transmitter and receiver, which is essential for dependable infrared beam operation.
RIB FIT SLIM for Sliding Gates
The RIB FIT SLIM photocell sensors can be installed with compatible RIB automatic sliding gate systems to provide additional safety during gate opening and closing.
Typical applications include villa sliding gates, residential entrances, apartment buildings, commercial gates and other automated vehicle entrances.
RIB FIT SLIM for Swing Gates
FIT SLIM photocells are also suitable for automatic swing gate systems. Correctly positioned photocells can help monitor the vehicle and pedestrian access area while the swing gate automation is operating.
Photocell positioning is particularly important with swing gates because the gate leaves travel through an arc. The installation should consider the complete movement area of each gate leaf.
RIB FIT SLIM for Parking Barriers
The RIB FIT SLIM can also be integrated with compatible automatic parking barrier systems. The photocell beam can monitor the vehicle lane and provide an obstacle-detection signal to the barrier controller.
Parking barrier installations may also use vehicle loop detectors or other safety devices depending on the required operating and safety configuration.
Compatible RIB Gate Automation
RIB FIT SLIM photocells are used with a wide range of compatible RIB automation products and kits, including:
- RIB K-series sliding gate motors
- RIB K500 sliding gate motor
- RIB K800 sliding gate motor
- RIB KING EVO swing gate motor
- RIB KING EVO L swing gate motor
- Compatible RIB swing gate operators
- Compatible RIB sliding gate operators
- Compatible RIB parking barrier systems
- Other compatible automatic opening systems
RIB FIT SLIM in RIB Gate Motor Kits
The FIT SLIM photocell pair is used by RIB as a safety accessory in various complete automation kits. This makes FIT SLIM a suitable original replacement when servicing compatible RIB gate automation systems.
Before replacing existing photocells, check the control board, wiring configuration and exact photocell model to ensure compatibility with the installed automation system.
RIB FIT SLIM vs FIT SYNCRO
| Specification | RIB FIT SLIM | RIB FIT SYNCRO |
|---|---|---|
| Maximum Range | 20 m | 10 m / 20 m adjustable |
| Synchronism | Yes, in AC | Yes, in AC |
| Installation | Wall Mounted | Wall Mounted |
| TX SYNCRO Support | Yes | Yes |
| Application | Automatic opening safety | Automatic opening safety |
RIB FIT Photocell Range
RIB manufactures several FIT photocell solutions for different gate automation requirements:
- FIT SLIM – compact wall-mounted photocells with up to 20 m range
- FIT SYNCRO – synchronized photocells with selectable 10 m and 20 m ranges
- FIT METAL – reinforced anti-vandal photocells designed for locations where stronger physical protection is required
Photocell Installation & Alignment
Correct installation is essential for reliable operation of the RIB FIT SLIM photocells. The transmitter and receiver should be mounted securely and aligned accurately so that the infrared beam reaches the receiver without obstruction.
The wiring should be connected according to the RIB manual and the specific gate control board being used. After installation, the complete safety function should be tested before the automatic gate or barrier is placed into normal operation.
Replacement RIB Photocell Sensors
The RIB FIT SLIM can be used as a replacement photocell pair on compatible RIB gate automation installations.
Before ordering a replacement, check the existing sensor model and control-board connection. If the existing system uses another RIB photocell technology, confirm compatibility before replacing the sensors.
RIB FIT SLIM Photocell Sensors UAE
We supply RIB FIT SLIM photocell safety sensors throughout the UAE for automatic sliding gates, swing gates, parking barriers and compatible gate automation systems.
Supply, installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Confirm your existing RIB photocell model, gate control board and required installation configuration. For replacement installations, send a clear photo of the existing photocells and control board if compatibility needs to be checked.
