DEA LIVI 803N 900 KG Sliding Gate Motor

DEA LIVI 803N 900 KG Automatic Sliding Gate Motor UAE

DEA LIVI 803N is a robust 230V automatic sliding gate motor designed for residential sliding gates weighing up to 900 kg. Manufactured by DEA SYSTEM, the LIVI 803N combines reliable electromechanical construction, electronic force regulation, electromechanical limit switches and an integrated DEA 212E control unit for dependable automatic gate operation.

With 320W power input, approximately 340N thrust force and a nominal gate speed of 10 metres per minute, the DEA LIVI 900 KG is suitable for villas, residential compounds, housing estates and private entrances requiring a higher gate capacity than the LIVI 600 KG model.

DEA LIVI 803N Key Features

• Original DEA SYSTEM sliding gate motor
• Model: LIVI 803N / 212E
• Maximum gate weight: 900 kg
• Maximum gate leaf length: up to 5 metres
• Residential sliding gate automation
• Motor supply voltage: 230V AC
• Power input: 320W
• Thrust force: 340N
• Gate speed: 10 m/min
• Up to 18 manoeuvres per hour
• Up to 60 manoeuvres per day
• Integrated DEA 212E control unit
• Electromechanical limit switches
• Electronic thrust-force regulation
• Automatic working-time programming
• Controlled inputs for compatible safety devices
• Accessible front-mounted control electronics
• Manual release for emergency gate operation
• Fixing plate included
• Protection rating: IPX4
• Operating temperature: -20°C to +50°C

DEA LIVI 900 KG Technical Specifications

900 KG Residential Sliding Gate Motor

The DEA LIVI 803N is designed for automatic sliding gates weighing up to 900 kg. It provides greater gate capacity than the LIVI 600 KG model while remaining intended primarily for residential gate automation.

This makes it suitable for larger villa gates, residential compounds, housing estates and other private entrances where the gate requires a higher-capacity sliding motor.

230V AC Sliding Gate Operator

The LIVI 803N uses a 230V AC electromechanical motor with approximately 320W power input. The mains-powered design provides reliable everyday operation without relying on batteries as the primary motor power source.

The operator develops approximately 340N thrust force for compatible sliding gates when correctly installed and configured.

10 m/min Sliding Gate Speed

The DEA LIVI 900 KG provides a nominal movement speed of approximately 10 metres per minute, providing controlled opening and closing for residential sliding gate applications.

Actual gate opening time depends on the total travel distance, mechanical condition of the gate and installation configuration.

DEA 212E Integrated Control Unit

The DEA LIVI 803N / 212E incorporates the DEA 212E electronic control unit within the sliding gate operator.

The controller provides essential gate automation functions including electronic thrust-force regulation, automatic programming of working time and controlled inputs for compatible safety devices.

Accessible Front-Mounted Control Panel

The LIVI design places the control panel in the front upper section of the motor, providing convenient access during installation, programming and maintenance.

This arrangement is particularly useful when the gate motor is installed in a narrow area with limited working space around the operator.

Electronic Force Regulation

The integrated control system provides electronic regulation of the motor thrust force. This allows the installer to configure motor force according to the gate characteristics and installation requirements.

The sliding gate must still move smoothly by hand before automation. Motor force should never be increased simply to compensate for damaged wheels, poor track alignment or excessive mechanical resistance.

Electromechanical Limit Switches

The DEA LIVI 803N uses electromechanical limit switches for controlling the fully open and fully closed gate positions.

Correct positioning and adjustment of the limit-switch components is important for accurate stopping and reliable long-term operation.

Durable Metal Construction

The DEA LIVI family is designed with robust mechanical components for dependable gate automation. High-quality metal components help provide resistance to mechanical wear during normal residential operation.

Correct rack alignment, gate-wheel condition and periodic maintenance remain important for obtaining reliable service life from any sliding gate operator.

Manual Release During Power Failure

If mains electricity is unavailable, the motor can be manually released so the sliding gate can be moved by hand. This allows property access during a power failure or when servicing the automation system.

After manual operation, the motor should be correctly re-engaged before returning the gate to automatic operation.

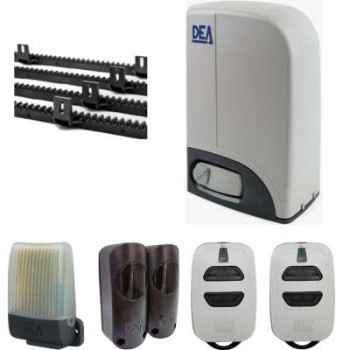

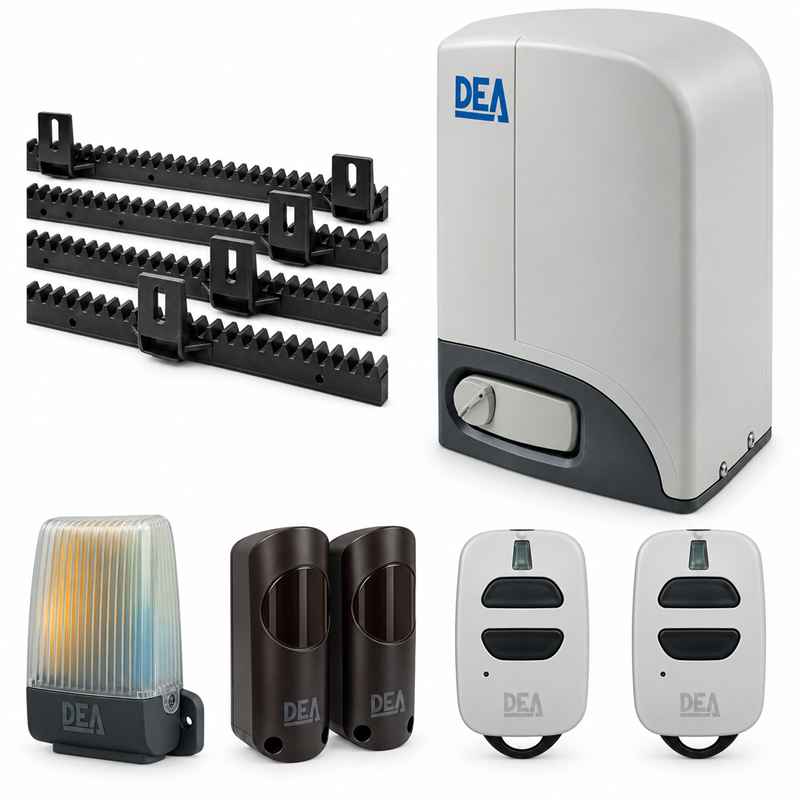

DEA LIVI 900 KG Kit Includes

• 1 × DEA LIVI 803N 900 KG sliding gate motor
• 1 × DEA 212E integrated control unit
• 2 × DEA GT2 remote controls

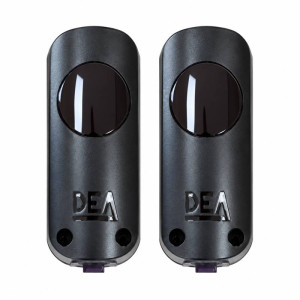

• 1 × Pair of DEA LINEAR photocell sensors
• 1 × Built-in compatible receiver
• 1 × Blinker / flashing light
• 4 m Nylon gate rack
• 1 × Push button

DEA LIVI 600 KG vs DEA LIVI 900 KG

DEA LIVI 900 KG Applications

• Villa sliding gates
• Large residential driveway gates
• Residential compounds
• Housing estate entrances
• Private property entrances
• Automatic sliding gates up to 900 kg
• Residential gates up to approximately 5 metres long

Compatible Gate Access Control

• DEA GT2 remote controls
• DEA LINEAR photocell sensors
• GSM gate opener
• RFID access control
• Long-range UHF RFID vehicle access
• Access-control keypad
• Push button
• Intercom system
• Vehicle loop detector

DEA LIVI 803N 900 KG Sliding Gate Motor UAE

We supply DEA LIVI 803N 900 KG sliding gate motors throughout the UAE for residential automatic sliding gate applications.

Professional supply, installation, programming, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm the gate weight, gate length, wheel and track condition, expected daily usage and required access-control accessories to ensure the DEA LIVI 803N is suitable for your installation.
