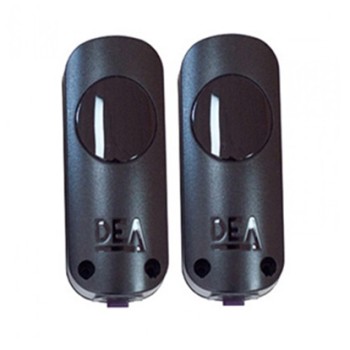

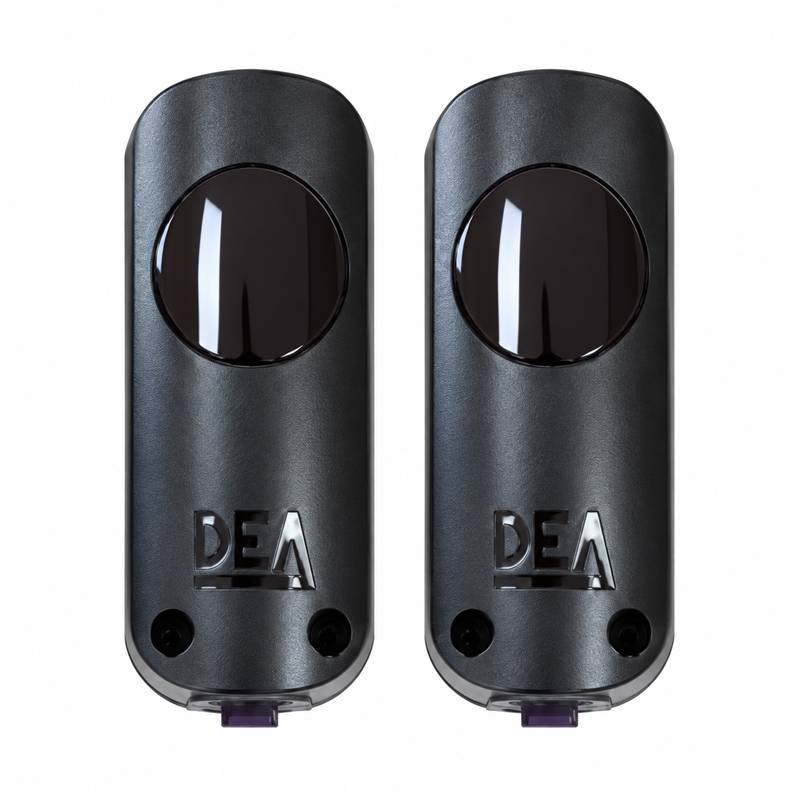

DEA LINEAR Photocell Safety Sensors

DEA LINEAR Adjustable Photocell Safety Sensors UAE

DEA LINEAR photocells are automatic gate infrared safety sensors designed for compatible DEA SYSTEM gate automation. Supplied as a pair of transmitter and receiver photocells, they create an infrared safety beam across the gate entrance to help detect vehicles, pedestrians and other obstacles during automatic gate operation.

The DEA LINEAR photocells feature 180° adjustable optics, making alignment easier where the transmitter and receiver cannot be mounted perfectly opposite each other. With a maximum stated operating range of 20 metres, they are suitable for compatible DEA sliding gate motors, swing gate motors, automatic barriers and other gate automation installations.

DEA LINEAR Photocell Key Features

• Original DEA SYSTEM photocell safety sensors
• Supplied as a pair of photocells
• Infrared safety beam for automatic gate automation
• 180° adjustable optics
• Maximum stated range: 20 metres
• Possibility of synchronized operation
• Designed for compatible DEA automation systems
• Suitable for sliding and swing gates
• Suitable for compatible automatic gate barriers
• Helps detect obstacles across the gate opening
• Suitable for residential and commercial gate entrances
• Compact dimensions: 46 × 125 × 40 mm

DEA LINEAR Technical Specifications

20 Metre Automatic Gate Safety Photocell

The DEA LINEAR photocell provides a maximum stated detection distance of up to 20 metres. A transmitter is installed on one side of the entrance and the receiver on the opposite side, creating an infrared beam across the gate opening.

When an obstacle interrupts the beam, the photocell sends a safety signal to the compatible gate control system. The controller can then stop or reverse gate movement according to its programming and safety configuration.

180° Adjustable Photocell Optics

One of the main advantages of DEA LINEAR photocells is the 180° adjustable optical system. This allows the photocell beam direction to be adjusted during installation instead of requiring both housings to face each other perfectly.

This feature can simplify installations on gate pillars, walls and entrances where mounting surfaces are not ideally aligned.

Synchronized Photocell Operation

DEA LINEAR photocells support synchronized operation in compatible installations. Synchronization can be useful when multiple photocell pairs are installed near each other, helping prevent interference between different infrared transmitters and receivers.

Automatic Gate Obstacle Detection

Photocells are an important part of an automatic gate safety system. When installed correctly, the DEA LINEAR pair monitors the entrance with an infrared beam and detects when a vehicle, person or other object interrupts that beam.

The actual response of the gate—such as stopping, reopening or preventing closure—is determined by the connected DEA control board and its programmed safety logic.

DEA LINEAR for Sliding Gate Motors

DEA LINEAR photocells can be used with compatible DEA automatic sliding gate systems. They are typically positioned across the vehicle entrance so that an obstruction can be detected before or during automatic gate closing.

They are suitable for compatible DEA sliding gate installations including residential driveway and property entrance automation.

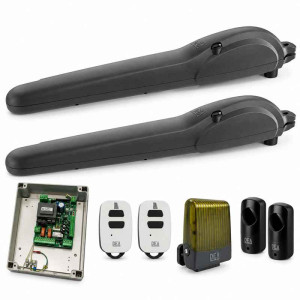

DEA LINEAR for Swing Gate Motors

The photocells are also suitable for compatible DEA swing gate automation. Correct photocell positioning is particularly important on swing gates because the gate leaves move through an arc and may create different potential hazard areas.

Depending on the installation, more than one pair of safety photocells may be required to provide appropriate protection.

DEA LINEAR for Automatic Gate Barriers

DEA LINEAR photocells can also be integrated with compatible DEA automatic parking barrier systems. The infrared beam can detect vehicles or other obstacles within the monitored entrance area and provide a safety input to the barrier controller.

DEA LINEAR Compatible Applications

• DEA sliding gate motors
• DEA swing gate motors
• Automatic driveway gates
• Automatic parking barriers
• Villa gate automation
• Residential compound entrances
• Commercial property gates
• Vehicle entrances
• Compatible DEA access automation systems

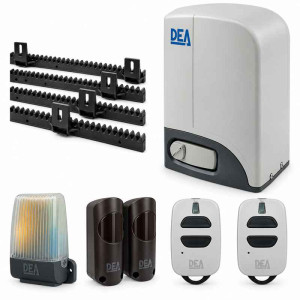

DEA LINEAR with LIVI Gate Motors

DEA LINEAR photocells are suitable safety accessories for compatible DEA LIVI sliding gate automation. They can form part of a complete gate system together with the motor, control board, receiver, remote controls and flashing warning light.

For a professional installation, photocell alignment and control-board safety input programming should be checked after installation to confirm correct obstacle-detection operation.

DEA LINEAR Photocell Installation

The transmitter and receiver should be securely mounted on opposite sides of the gate entrance at a suitable height for detecting vehicles and other expected obstacles. The 180° adjustable optics can then be used to correctly align the infrared beam.

After wiring and alignment, the installer should test the photocell system throughout multiple gate opening and closing cycles to confirm that interruption of the beam produces the correct safety response.

DEA LINEAR Photocell Sensors UAE

We supply DEA LINEAR automatic gate photocell safety sensors throughout the UAE for compatible DEA gate and barrier automation systems.

Supply, installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm the installed DEA control board and required photocell connection type to ensure compatibility with your automatic gate system.
