DEA STING 400 KG Swing Gate Motor

DEA STING 400 KG Automatic Swing Gate Motor UAE

DEA STING is a robust electromechanical swing gate motor designed for residential and condominium automatic gates. Manufactured by DEA SYSTEM, STING is suitable for swing gate leaves weighing up to 400 kg and measuring up to 3 metres, depending on the gate geometry and installation conditions.

The DEA STING combines strong mechanical construction, adjustable mounting plates, precise gate movement and advanced encoder-based obstacle detection. Its compact linear design makes it suitable for villas, residential compounds, apartment entrances and private driveway swing gates throughout the UAE.

DEA STING Key Features

• Original DEA SYSTEM swing gate motor
• Maximum gate leaf weight: up to 400 kg
• Maximum gate leaf length: up to 3 metres
• Designed for residential and condominium swing gates
• Electromechanical linear gate operator
• Strong metal internal gearing
• Aluminium and steel external components
• Robust monoblock construction
• Adjustable fixing plates for flexible installation
• Encoder-based gate movement control on applicable versions
• Obstacle detection with movement reversal
• Optional integrated mechanical stops
• Can eliminate the need for inconvenient ground stops when correctly configured
• Manual emergency release using dedicated metal key
• Compatible with DEA photocell safety sensors
• Compatible with DEA remote controls and access-control accessories
• NETLINK-compatible electronics on applicable configurations

DEA STING Technical Specifications

400 KG Residential Swing Gate Motor

The DEA STING is designed to automate residential and condominium swing gates with leaves weighing up to 400 kg. The permissible gate weight depends on factors including leaf length, hinge geometry, wind resistance and the mechanical condition of the gate.

DEA specifies the standard STING range for gate leaves up to approximately 3 metres long. For reliable operation, each gate leaf should move smoothly by hand before the automatic operators are installed.

For Swing Gate Leaves Up to 3 Metres

The DEA STING is particularly suitable for villa and residential swing gates with leaf lengths up to 3 metres. This makes it a practical choice for many single-leaf and double-leaf driveway gate installations.

The correct operator configuration should always be selected according to both gate leaf length and weight, rather than choosing the motor based only on the maximum 400 kg rating.

Strong Electromechanical Construction

DEA designed the STING range using robust materials intended to withstand normal mechanical wear. The operator incorporates metal gearing together with aluminium and steel components to provide reliable residential gate automation.

The robust construction makes STING suitable for frequently used villa entrances, residential buildings and condominium gates when correctly installed and maintained.

Adjustable Mounting Plates

One of the useful installation features of the DEA STING swing gate motor is its adjustable mounting system. The supplied adjustable fixing plates allow the installer to adapt the motor position according to the gate pillar structure, hinge position and available installation space.

Correct mounting geometry is essential for achieving the required opening angle, smooth movement and reliable long-term operation.

Optional Mechanical Stops

The DEA STING can use optional mechanical stops integrated with the operator. When the correct stops and installation configuration are used, separate opening stops on the driveway may not be required.

This can produce a cleaner installation and helps avoid unnecessary ground obstacles in vehicle access areas.

Encoder-Based Obstacle Detection

Applicable DEA STING configurations use an encoder-based movement-reading system. The control electronics monitor gate movement and can detect abnormal resistance or an obstacle during operation.

When an obstacle is detected, the automation can respond by reversing movement according to the controller configuration. Compatible photocells and other appropriate safety devices should still be installed as required by the gate installation.

Manual Emergency Release

In the event of a mains power failure or technical fault, the DEA STING operator can be mechanically released using its dedicated metal release key. The gate can then be moved manually when access is required.

After power is restored, the operator should be correctly re-engaged before returning the swing gate to automatic operation.

DEA STING for Double Swing Gates

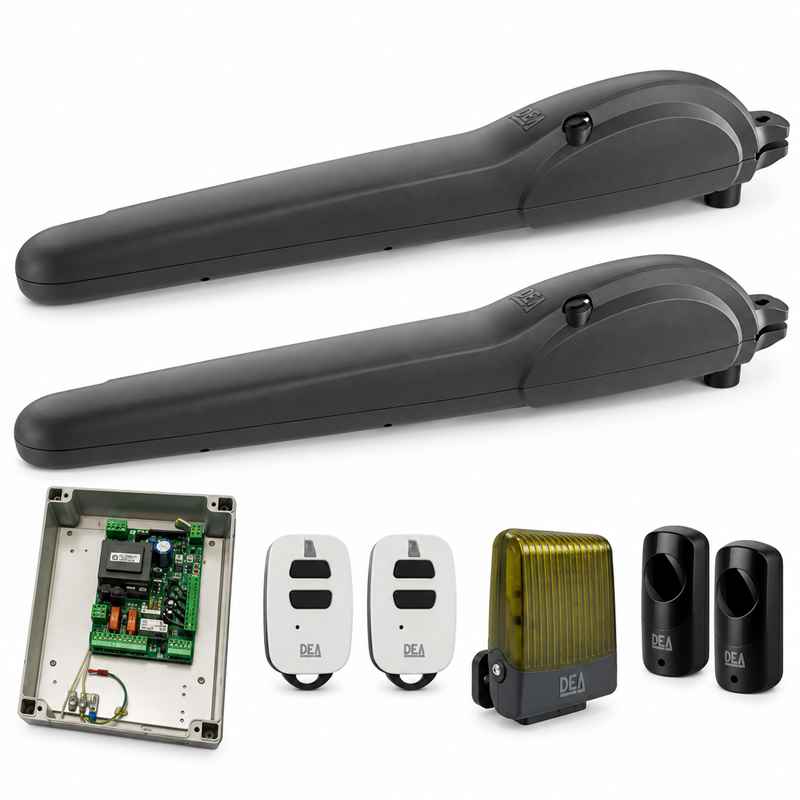

For a typical double-leaf swing gate, one STING operator is installed on each gate leaf and both motors are controlled by a compatible DEA control panel.

The controller can coordinate the opening and closing sequence of both leaves and integrate compatible remote controls, photocell sensors, flashing lights and access-control equipment.

DEA STING Safety Accessories

A professional swing gate installation can be combined with compatible safety and access-control accessories, including:

• DEA photocell safety sensors
• DEA remote controls
• Flashing warning light
• Safety edges
• Key selector
• Push button
• Access-control keypad
• GSM gate opener
• RFID access control
• Intercom system

Smartphone Gate Control

Compatible DEA automation configurations can be integrated with DEAuser and NETLINK ecosystem devices for smartphone-based gate operation and system management.

Depending on the installed DEA controller and optional communication hardware, compatible systems can provide local or remote gate-control functionality.

DEA STING Applications

• Villa swing gates
• Residential driveway gates
• Single-leaf swing gates
• Double-leaf swing gates
• Residential compounds
• Apartment and condominium entrances
• Private property gates
• Swing gate leaves up to 3 metres
• Compatible gate leaves up to 400 kg

DEA STING 400 KG Swing Gate Motor UAE

We supply DEA STING 400 KG swing gate motors throughout the UAE for residential and condominium automatic swing gate applications.

Professional supply, installation, programming, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm the length and approximate weight of each gate leaf, hinge and pillar dimensions, required opening angle, wind exposure and expected daily operating frequency to ensure the correct DEA STING model and installation geometry are selected.
