BEA ZENSAFE Sensor Supplier in UAE Automatic Door Sensor

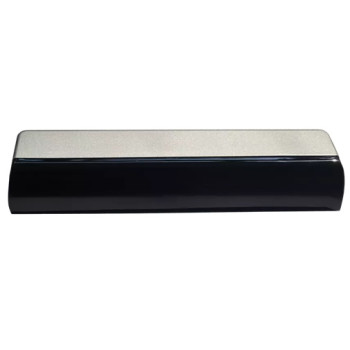

BEA ZENSAFE Opening & Safety Combined Sensor in UAE

• The BEA ZENSAFE is an advanced 2-in-1 sensor that combines opening
• (radar motion detection) and safety (infrared curtain) into a single compact device.
• It integrates microwave radar technology for motion detection
• and active infrared technology for safety,
• ensuring both smooth door activation and user protection.
• This makes it an ideal solution for automatic
• sliding doors in commercial and industrial environments.

Key Features:

• Opening & safety combined in one sensor
• Dual technology: Microwave radar + active infrared
• Bidirectional motion detection for smooth door opening
• 1 safety curtain with 24 infrared spots
• Adjustable infrared curtain angle
• High stability and reliability with planar antenna
• Energy-efficient operation (reduces unnecessary door openings)
• Easy installation and configuration
• Compact and robust ABS design

Technical Specifications:

• Technology: Microwave + Active Infrared
• Frequency: 24.150 GHz
• Detection Mode: Motion & Presence
• Min. Detection Speed: 5 cm/s
• Power Supply:
• 12–24V AC ±10%
• 12–30V DC (-5% / +10%)
• Power Consumption: < 3W
• Output: Relay (NO/NC/COM)
• Max Voltage: 42V AC/DC
• Max Current: 1A
• Mounting Height: 1.8 m to 3 m
• Protection Rating: IP54
• Operating Temperature: -25°C to +55°C
• Detection Field: up to 4 m × 2 m (depending on height)
• Material: ABS
• Weight: 215 g

Applications in UAE:

• Automatic sliding glass doors
• Commercial building entrances
• Shopping malls & retail stores
• Hospitals & clinics
• Office buildings
• Industrial automatic doors

Why Choose BEA ZENSAFE?

• Combines opening + safety in one device
• Reduces installation cost (no separate safety sensor needed)
• Reliable dual technology detection
• Energy-efficient door operation
• Ideal for high-traffic automatic entrances

Package Includes:

• BEA ZENSAFE Sensor
• Mounting Accessories
• User Manual
