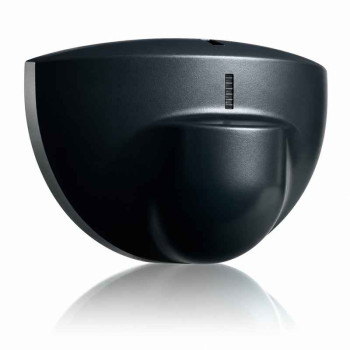

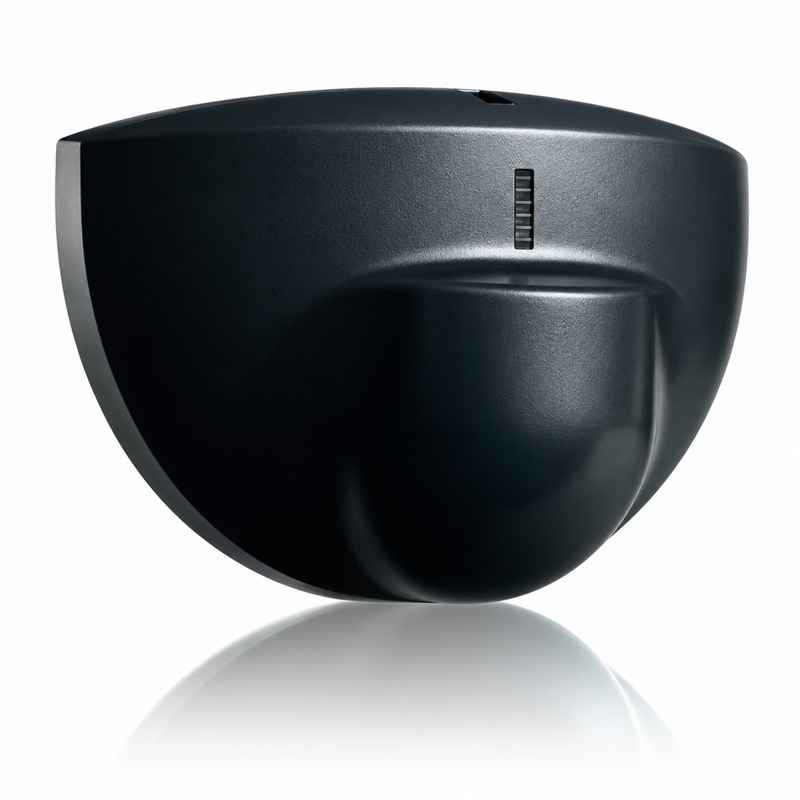

BEA EAGLE 6+ DRO Radar Opening Sensor for Automatic Doors
Price 650 AEDIn Stock
BEA EAGLE 6+ DRO 24.150 GHz Automatic Door Radar Sensor UAE
BEA EAGLE 6+ DRO is a professional radar opening sensor designed for automatic pedestrian doors. Using 24.150 GHz microwave radar technology, it provides reliable motion detection for automatic sliding doors, revolving doors and compatible automatic entrance systems.
The sensor features a BEA-developed antenna for a stable detection zone, adjustable detection range and flexible antenna positioning. Its directional detection capability can help reduce unnecessary door openings and improve energy efficiency at busy commercial entrances.
BEA EAGLE 6+ DRO Key Features
- Professional BEA automatic door opening sensor
- Model: EAGLE 6+ DRO
- 24.150 GHz microwave radar technology
- Motion detection for automatic entrances
- Directional detection capability
- BEA-developed radar antenna
- Wide and narrow detection field configurations
- Detection range adjustable by sensitivity potentiometer
- Adjustable vertical antenna angle: 0° to 90°
- Adjustable horizontal angle: -30° to +30°
- Mounting height up to 4 metres
- 12–24V AC/DC power supply
- Low power consumption below 2W
- IP54 protection rating
- Suitable for professional automatic pedestrian entrances
BEA EAGLE 6+ DRO Technical Specifications
| Brand | BEA |
| Model | EAGLE 6+ DRO |
| Product Type | Automatic Door Radar Opening Sensor |
| Technology | Microwave Radar |
| Radar Frequency | 24.150 GHz |
| Detection Mode | Motion |
| Wide Detection Area | 4 m (W) × 2 m (D) |
| Narrow Detection Area | 2 m (W) × 2.5 m (D) |
| Power Supply | 12–24V AC ±10% / 12–24V DC -10% to +30% |
| Power Consumption | < 2W |
| Mounting Height | Up to 4 m |
| Vertical Adjustment | 0° to 90° |
| Horizontal Adjustment | -30° to +30° |
| Protection Rating | IP54 |
| Operating Temperature | -20°C to +55°C |
| Dimensions | 120 × 80 × 50 mm |
| Applications | Automatic Sliding Doors & Automatic Revolving Doors |
24.150 GHz Radar Opening Technology
The BEA EAGLE 6+ DRO uses 24.150 GHz radar technology to detect pedestrian movement within the configured activation field. When motion is detected, the sensor provides an opening signal to the compatible automatic door operator.
Wide & Narrow Detection Fields
The sensor can provide different detection-zone configurations according to the entrance layout. BEA specifies a wide detection area of approximately 4 m × 2 m and a narrow detection area of approximately 2 m × 2.5 m under specified installation conditions.
This flexibility allows the detection field to be adapted for different automatic entrance widths and pedestrian traffic patterns.
Directional Radar Detection
Directional detection can help distinguish approaching traffic and reduce unnecessary automatic door activation from departing movement. This is particularly useful in busy commercial entrances where unnecessary opening cycles can increase energy loss.
Adjustable Detection Range
The detection range can be adjusted using the sensor's sensitivity potentiometer. Combined with adjustable antenna angles, this allows the activation area to be configured according to the automatic door installation.
Flexible Sensor Adjustment
The radar antenna can be adjusted from 0° to 90° vertically and approximately -30° to +30° horizontally. Correct adjustment helps position the detection field where pedestrian activation is required.
Automatic Sliding Door Sensor
The BEA EAGLE 6+ DRO is designed for professional automatic sliding door applications. It can be used at shopping malls, retail stores, hospitals, hotels, offices and other commercial entrances requiring reliable pedestrian activation.
Automatic Revolving Door Opening Sensor
BEA's current pedestrian entrance catalogue also lists the EAGLE 6+ DRO for automatic revolving door applications, providing a professional radar activation solution for compatible revolving-door systems.
12–24V AC/DC Operation
The sensor supports 12–24V AC and 12–24V DC power supplies, allowing integration with many professional automatic door controllers. Always confirm the available controller supply and activation input before wiring the sensor.
IP54 Protection
With an IP54 protection rating and an operating temperature range from approximately -20°C to +55°C, the EAGLE 6+ DRO is designed for professional automatic entrance applications when correctly installed.
Applications
- Automatic sliding glass doors
- Automatic revolving doors
- Shopping malls and retail stores
- Hospitals and healthcare facilities
- Hotels and hospitality entrances
- Office buildings
- Commercial entrances
- Public buildings
- High-traffic pedestrian entrances
BEA EAGLE 6+ DRO Replacement Sensor
The EAGLE 6+ DRO can be used for compatible new automatic door installations or as a replacement radar opening sensor. When replacing an existing sensor, check the sensor model, available power supply, wiring and automatic door controller input before installation.
BEA EAGLE 6+ DRO Supply & Installation UAE
We supply BEA EAGLE 6+ DRO automatic door radar sensors throughout the UAE for automatic sliding doors, revolving doors and commercial automatic entrance systems.
Supply, replacement, installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
For replacement enquiries, provide a clear photo of the existing sensor and automatic door operator/controller so compatibility can be checked before ordering.
