BEA MATRIX-D12-24 for Parking Barrier Systems

BEA MATRIX-D12-24 Double Channel Loop Detector in UAE

• The BEA MATRIX-D12-24 Dual Channel Loop Detector
• is designed for accurate vehicle detection in automatic gates,
• parking barriers, and access control systems across UAE.
• It supports two independent loops for advanced detection and directional control.
• Advanced Dual Loop Detection Technology

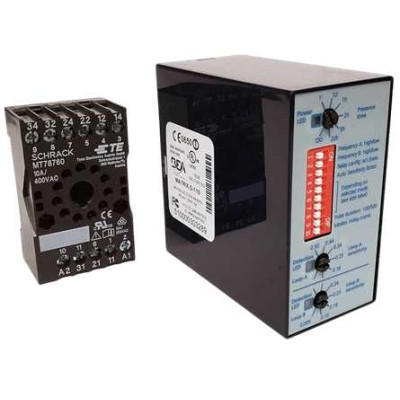

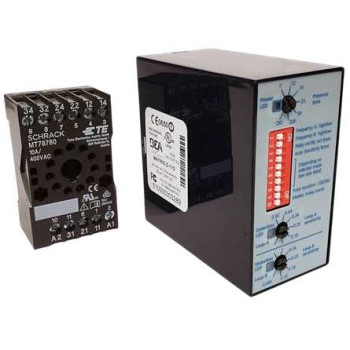

• The BEA MATRIX-D12-24 is a professional-grade inductive loop detector
• that supports two independent loops (Loop A & Loop B).
• It is ideal for applications requiring entry/exit detection,
• vehicle counting, and high-traffic management.

Key Features:

• Dual channel (2 loops supported)
• 12–24V AC/DC universal power supply
• Independent sensitivity control for each loop
• Directional detection (entry & exit logic)
• Presence and pulse detection modes
• Automatic sensitivity boost
• Adjustable presence time (1 min to infinite)
• LED indicators for easy diagnostics
• Dual relay outputs (NO/NC/COM)

Technical Specifications:

• Power Supply: 12–24V AC/DC
• Frequency Range: 20 kHz – 130 kHz
• Inductance Range: 20 µH – 1000 µH
• Sensitivity: 0.005% – 0.5% adjustable
• Reaction Time: ~50 ms
• Output: 2 relay outputs (5A max)
• Operating Temperature: -30°C to +70°C
• Protection Rating: IP40
• Mounting: 11-pin plug-in base

Applications:

• Parking barrier / boom gate systems
• Sliding gate automation
• Swing gate automation
• Industrial access control systems
• Smart parking solutions
• Toll gate & vehicle management systems

Supply & Installation in UAE

We supply and install BEA loop detectors across:

• Dubai
• Sharjah
• Abu Dhabi
• Ajman
• Ras Al Khaimah

Why Choose BEA MATRIX-D12-24?

• Dual loop for advanced vehicle control
• High accuracy with minimal interference
• Reliable in UAE harsh weather conditions
• Easy integration with all major automation brands
• Ideal for residential, commercial & industrial use

Package Includes:

• BEA MATRIX-D12-24 Loop Detector Unit
• User Manual
• Mounting Base (11-pin)
