BEA MATRIX-S220 Single Channel Loop Detector 220V
Price 560 AEDIn Stock

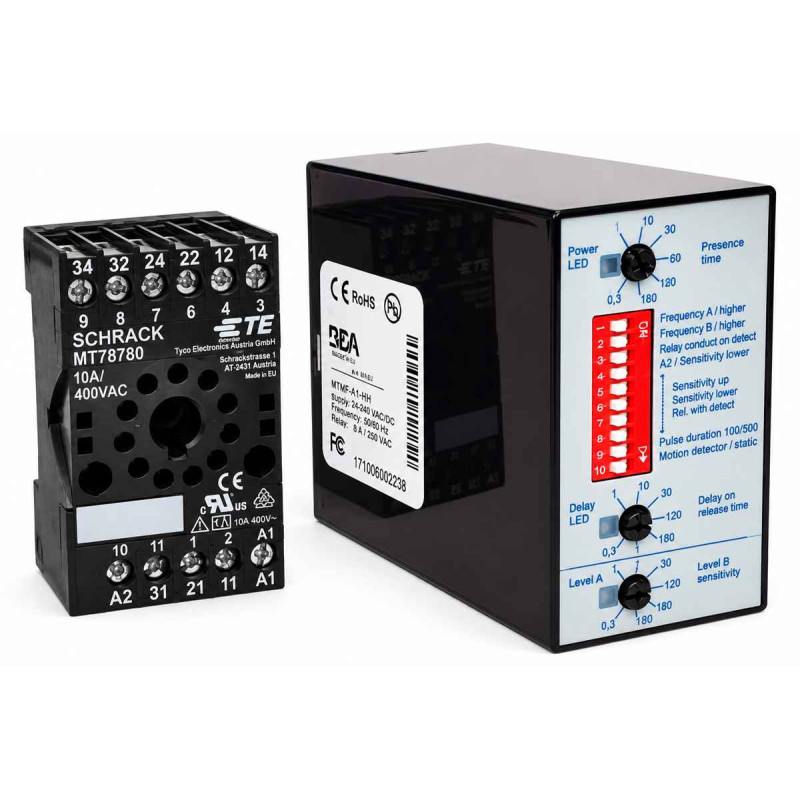

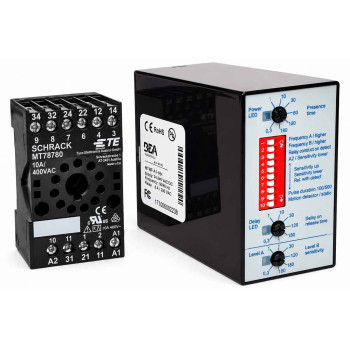

BEA MATRIX-S220 220V Single Channel Vehicle Loop Detector UAE
BEA MATRIX-S220 is a professional single-channel inductive vehicle loop detector designed for automatic parking barriers, gates, industrial doors and vehicle access control systems. The MATRIX-S220 operates directly from a 220–240V AC power supply and monitors one inductive loop for reliable detection of vehicles and metallic objects.
With automatic loop tuning, adjustable sensitivity, presence and pulse detection modes and a fast 25 ms reaction time, the BEA MATRIX-S220 provides reliable vehicle detection for residential, commercial and industrial entrance automation.
BEA MATRIX-S220 Key Characteristics
- Genuine BEA MATRIX vehicle loop detector
- Model: MATRIX-S220
- Single-channel / single-loop detector
- 220–240V AC power supply
- Inductive vehicle detection technology
- Automatic loop tuning
- Presence and pulse detection modes
- Presence time from 1 minute to infinite
- 100 ms or 500 ms pulse output
- 20 µH to 1000 µH inductance range
- 20 kHz to 130 kHz frequency range
- 4 selectable frequency steps
- Adjustable sensitivity from 0.005% to 0.5%
- 25 ms reaction time
- 2 relay outputs
- LED power and loop-status indication
- IP40 protection
- Standard 11-pin connection
BEA MATRIX-S220 Technical Specifications
| Brand | BEA |
| Model | MATRIX-S220 |
| Product Type | Vehicle Inductive Loop Detector |
| Channels / Loops | 1 – Single Channel |
| Technology | Inductive Loop |
| Power Supply | 220–240V AC / 230V AC ±10% |
| Mains Frequency | 48–62 Hz |
| Power Consumption | < 2.5W |
| Tuning | Automatic |
| Detection Mode | Presence / Pulse |
| Presence Time | 1 Minute to Infinite |
| Pulse Time Output | 100 ms / 500 ms |
| Inductance Range | 20 µH – 1000 µH |
| Frequency Range | 20 kHz – 130 kHz |
| Frequency Steps | 4 |
| Sensitivity | 0.005% – 0.5% ΔL/L |
| Reaction Time | 25 ms |
| Outputs | 2 Free-Potential Change-Over Relays |
| Maximum Contact Voltage | 230V AC |
| Maximum Contact Current | 5A Resistive |
| LED Indicators | Green: Power / Red: Loop Status |
| Protection Rating | IP40 |
| Operating Temperature | -30°C to +40°C |
| Storage Temperature | -30°C to +70°C |
| Connector | Standard 11-Pin Round Connector 86CP11 |
| Dimensions | 77 × 40 × 75 mm |
| Weight | Less Than 200 g |
Single Channel Vehicle Detection
The BEA MATRIX-S220 controls one inductive loop installed beneath the road surface. When a vehicle enters the detection area, the metallic mass changes the loop inductance and the detector provides the programmed relay output to the connected gate, parking barrier or access control system.
Direct 220–240V AC Power Supply
A major advantage of the MATRIX-S220 is its 220–240V AC power supply. Where a suitable mains supply is available, the S220 can be powered directly without requiring the 12–24V supply used by the MATRIX-S12-24 version.
Automatic Loop Tuning
The MATRIX-S220 automatically tunes itself to the connected inductive loop. Automatic tuning simplifies commissioning and helps maintain stable vehicle detection when the loop has been correctly designed and installed.
Adjustable Vehicle Detection Sensitivity
Sensitivity can be adjusted between approximately 0.005% and 0.5% ΔL/L. This allows the detector to be configured according to loop dimensions, installation conditions and the types of vehicles that need to be detected.
4 Frequency Adjustments
The single-channel MATRIX-S series provides 4 frequency adjustments. Selecting an appropriate frequency can help reduce interference when multiple inductive loops are installed close to one another.
Presence & Pulse Detection Modes
The BEA MATRIX-S220 supports both presence and pulse detection. Presence mode can maintain the output while a vehicle remains over the loop, while pulse mode provides a short output signal for compatible gate, barrier or traffic-control functions.
Pulse duration can be configured for 100 ms or 500 ms, while presence time can be configured from approximately 1 minute to infinite.
25 ms Fast Reaction Time
With a specified reaction time of approximately 25 milliseconds, the MATRIX-S220 provides fast vehicle detection for automatic parking barriers, gates and industrial entrance systems.
BEA MATRIX-S220 for Parking Barriers
The MATRIX-S220 is ideal for compatible automatic parking barriers and boom gates. Depending on the barrier controller and wiring configuration, the detector can provide vehicle presence, opening or safety signals.
For applications requiring two independent vehicle loops, use the dual-channel MATRIX-D220 instead.
BEA Loop Detector for Automatic Gates
The MATRIX-S220 can also be integrated with compatible automatic sliding and swing gate systems. The relay output can be connected to an appropriate gate-controller input for vehicle detection or activation.
Industrial Doors & Vehicle Access Control
BEA MATRIX loop detectors are suitable for industrial doors, warehouse entrances, loading areas, compounds and access-control systems requiring reliable detection of vehicles and other metallic objects.
BEA MATRIX-S220 vs MATRIX-S12-24
| Model | Loops | Power Supply |
|---|---|---|
| MATRIX-S12-24 | 1 – Single | 12–24V AC/DC |
| MATRIX-S220 | 1 – Single | 220–240V AC |
BEA MATRIX Loop Detector Range
| Model | Channels | Power Supply |
|---|---|---|
| MATRIX-S12-24 | Single | 12–24V AC/DC |
| MATRIX-D12-24 | Double | 12–24V AC/DC |
| MATRIX-S220 | Single | 220–240V AC |
| MATRIX-D220 | Double | 220–240V AC |
Choosing the Correct BEA MATRIX Detector
Select the MATRIX version according to the number of inductive loops and available power supply. For one loop and a 220–240V AC supply, choose the MATRIX-S220. For two loops using the same mains supply, choose the MATRIX-D220.
The loop dimensions, number of turns, feeder cable arrangement, road construction and sensitivity settings should also be configured according to the vehicle detection application.
BEA MATRIX-S220 Supply & Installation UAE
We supply BEA MATRIX-S220 220V vehicle loop detectors throughout the UAE for parking barriers, automatic gates, industrial doors and vehicle access-control systems.
Loop cutting, cable installation, detector wiring, setup and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
For a new installation or replacement detector, provide the gate or barrier controller model, available power supply and required vehicle detection function so the correct BEA MATRIX detector can be selected.
