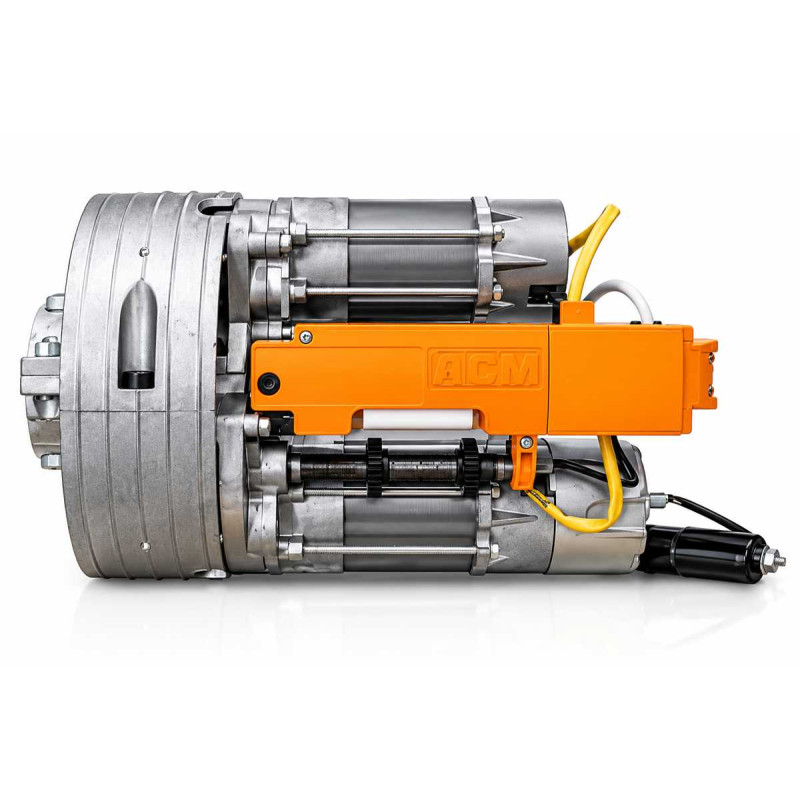

ACM TITAN 200BM E Rolling Shutter Central Motor 280 KG
Price 999 AEDIn Stock
ACM TITAN 200BM E 280 KG Dual Rolling Shutter Central Motor UAE
ACM TITAN 200BM E is a heavy-duty dual rolling shutter central motor designed for automatic roller shutters with a lifting capacity of up to 280 KG. The motor delivers 260 Nm torque and operates from a 230V AC 50/60Hz power supply, making it suitable for large shops, warehouses, garages, showrooms and commercial rolling shutter applications.
Unlike a conventional single central motor, the TITAN 200BM E uses a dual-motor system to provide increased lifting performance. It is equipped with a factory-mounted electrobrake for secure shutter locking and emergency manual release.
ACM TITAN 200BM E Characteristics
- Heavy-duty ACM rolling shutter central motor
- Maximum lifting capacity: 280 KG
- Torque: 260 Nm
- Dual-motor / double-motor system
- 230V AC 50/60Hz power supply
- 10 RPM operating speed
- 1260 W motor power
- 5.4 A current
- Ø60 mm rolling shutter shaft
- Ø200 mm outer crown
- Factory-mounted electrobrake
- Manual emergency release
- Permanent lithium grease lubrication
- Aluminium and mechanical steel construction
- Suitable for heavy commercial rolling shutters
ACM TITAN 200BM E Technical Specifications
| Brand | ACM |
| Model | TITAN 200BM E |
| Product Code | 1111211 |
| Motor Type | Dual Rolling Shutter Central Motor |
| Lifting Capacity | 280 KG |
| Torque | 260 Nm |
| Power Supply | 230V AC – 50/60Hz |
| Motor Power | 1260 W |
| Current | 5.4 A |
| Speed | 10 RPM |
| Limit Switch Range | 6 m |
| Thermal Operating Time | 4 minutes |
| Rolling Shaft | Ø60 mm |
| Outer Crown / Pulley | Ø200 mm |
| Motor Weight | 14 KG |
| Brake | Factory-Mounted Electrobrake |
| Lubrication | Permanent Grease Lubrication |
| Applications | Heavy Rolling Shutters, Shops, Warehouses, Garages & Commercial Entrances |
Dual Motor System for Heavy Rolling Shutters
The ACM TITAN 200BM E uses two motors in a single central rolling shutter drive system. This dual-motor construction provides the higher power required for compatible heavy roller shutters while maintaining a compact shaft-mounted installation.
With a rated lifting capacity of 280 KG, the TITAN 200BM E is particularly suitable where a standard single central motor does not provide sufficient lifting capacity.
260 Nm Torque & 280 KG Lifting Capacity
The TITAN 200BM E delivers 260 Nm torque and is rated for shutters up to 280 KG under the specified installation conditions. Correct shutter balancing and spring adjustment remain essential for reliable operation and long motor life.
Factory-Mounted Electrobrake
The E version of the TITAN 200BM is equipped with an electrobrake. The brake helps lock the shutter when the motor is stopped and provides additional security against unwanted shutter movement.
The electrobrake also incorporates a manual release system so the shutter can be operated during a power failure when the installation is correctly configured.
Ø60 mm Shaft & Ø200 mm Crown
The ACM TITAN 200BM E is designed for a 60 mm rolling shutter shaft and uses a 200 mm outer crown. These dimensions should be checked carefully when replacing an existing rolling shutter central motor.
Heavy-Duty Construction
The motor uses an aluminium-cast body together with mechanical steel components. The mechanical construction is designed for durability in demanding rolling shutter applications, while permanent grease lubrication reduces routine lubrication requirements.
Commercial & Warehouse Rolling Shutter Applications
The ACM TITAN 200BM E 280 KG motor is suitable for compatible large shopfront shutters, warehouses, workshops, showrooms, garages and other commercial roller shutter installations.
For shutters exceeding the rated capacity or installations with particularly high operating frequency, a dedicated industrial rolling shutter side motor should be considered instead.
Wall Switch & Remote Control Operation
The TITAN 200BM E can be operated using a compatible up / stop / down shutter control system. Wireless operation can also be provided by adding a compatible rolling shutter controller, radio receiver and remote controls.
The motor should not be advertised as having a built-in radio receiver unless the specific supplied control package includes one.
Choosing the Correct ACM TITAN Motor
Before ordering the ACM TITAN 200BM E, confirm the total shutter weight, shaft diameter, crown diameter, shutter balance, spring configuration, electrical supply and operating frequency.
For replacement installations, matching the existing shaft and crown dimensions is particularly important. The TITAN 200BM E requires a Ø60 mm shaft and Ø200 mm crown.
ACM TITAN 200BM E Supply & Installation UAE
We supply and install ACM TITAN 200BM E 280 KG rolling shutter central motors in UAE for shops, warehouses, garages, showrooms and commercial rolling shutter systems.
Supply, replacement, installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
For replacement motor selection, send a clear photo of the existing motor label together with the shutter dimensions, shaft size, crown size and installation photos so compatibility can be confirmed.
