ACM 12C055 Rolling Shutter Control Unit
Price 300 AEDIn Stock

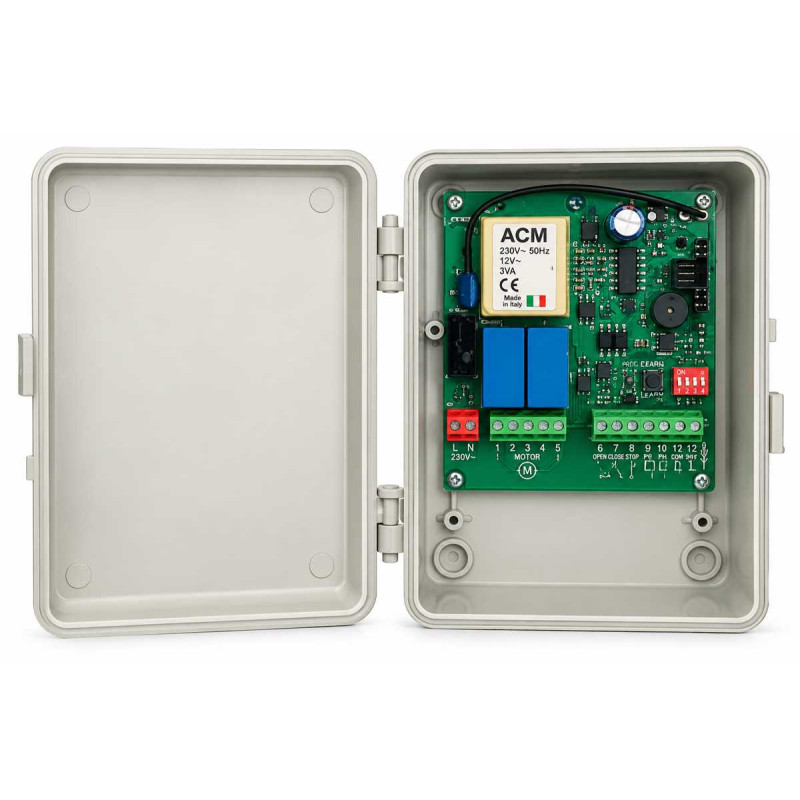

ACM UNIVERSAL 2 12C055 Rolling Shutter Control Board UAE
ACM 12C055 UNIVERSAL 2 is a professional radio control unit designed for the automation of motorized rolling shutters. Operating from a 230V AC 50/60Hz supply, it combines rolling shutter motor control with an integrated 433.92 MHz radio receiver, allowing compatible remote controls to be programmed directly into the control unit.
The ACM 12C055 provides adjustable motor working time, automatic closing, simplified transmitter programming and a weather-resistant IP56 enclosure. It is suitable for compatible automatic rolling shutters used in shops, garages, warehouses and commercial properties.
ACM 12C055 Key Characteristics
- Original ACM UNIVERSAL 2 control unit
- ACM product code: 12C055
- Designed for motorized rolling shutters
- 230V AC 50/60Hz power supply
- Integrated radio receiver
- 433.92 MHz radio frequency
- Simplified remote-control programming
- Automatic radio-code programming
- Stores up to 30 compatible transmitters
- Adjustable working time up to 150 seconds
- Automatic closing up to 3 minutes
- IP56 protection
- Compact 116 × 167 × 73 mm enclosure
- Suitable for new installations and replacement applications
ACM 12C055 Technical Specifications
| Brand | ACM |
| Model | UNIVERSAL 2 |
| Product Code | 12C055 |
| Product Type | Rolling Shutter Radio Control Unit |
| Electrical Supply | 230V AC 50/60Hz |
| Radio Receiver | Built-In |
| Radio Frequency | 433.92 MHz |
| Remote Programming | Automatic / Simplified Programming |
| Maximum Stored Transmitters | 30 |
| Working Time | 0–150 Seconds Maximum |
| Automatic Closing | Up to 3 Minutes |
| Radio Sensitivity | > -100 dBm |
| Protection Rating | IP56 |
| Dimensions | 116 × 167 × 73 mm |
| Application | Motorized Rolling Shutters |
Built-In 433.92 MHz Radio Receiver
The ACM UNIVERSAL 2 12C055 incorporates a 433.92 MHz radio receiver directly into the control unit. This eliminates the need for a separate external receiver in compatible installations and provides convenient wireless rolling shutter operation.
Compatible ACM transmitters can be programmed directly into the control unit using its simplified radio-code programming system.
Up to 30 Remote Controls
The ACM 12C055 can store up to 30 compatible radio transmitters. This makes the controller suitable not only for residential garage shutters but also for shops, warehouses and commercial entrances where multiple authorized users require remote access.
Adjustable Motor Working Time
The motor working time can be adjusted from 0 to 150 seconds. Correct working-time adjustment allows the control unit to be configured according to the operating time of the installed rolling shutter.
Automatic Closing Function
The ACM UNIVERSAL 2 provides an automatic closing function adjustable up to 3 minutes. Where appropriate for the installation, the shutter can therefore be configured to close automatically after the programmed delay.
Automatic closing should only be enabled where the shutter installation has appropriate safety devices and has been configured by a qualified technician.
IP56 Protective Enclosure
The control unit is supplied in an IP56-rated enclosure measuring approximately 116 × 167 × 73 mm. The enclosure protects the electronic controller when installed correctly in a suitable location.
Replacement ACM Rolling Shutter Control Board
The ACM 12C055 can be used when replacing a compatible existing ACM rolling shutter control unit. Before replacement, confirm the motor type, supply voltage, existing wiring and remote-control system.
After installing a new control unit, compatible remote controls normally need to be programmed into the replacement receiver.
ACM 12C055 for Central Rolling Shutter Motors
The UNIVERSAL 2 control unit is suitable for compatible ACM motorized rolling shutter systems, including central shutter motor installations. Compatibility should always be confirmed from the exact motor model and electrical configuration before connection.
For an ACM TITANSIDE side motor or another heavy-duty shutter motor, confirm the required control system before ordering rather than assuming the same controller is suitable.
Applications
- Automatic shop rolling shutters
- Garage roller shutters
- Commercial rolling shutters
- Warehouse shutter doors
- Retail shopfront shutters
- Compatible ACM central shutter motors
- Replacement rolling shutter control systems
ACM 12C055 Control Unit Supply & Installation UAE
We supply ACM UNIVERSAL 2 12C055 rolling shutter control units throughout the UAE together with compatible ACM rolling shutter motors, remote controls and automation accessories.
Professional installation, replacement, remote programming and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
For replacement applications, send a clear photo of the existing control board, motor label and wiring before ordering so compatibility can be confirmed.
