FAAC 415

FAAC 415 Swing Gate Motor in UAE

FAAC 415 Swing Gate Motor,
FAAC 415 230V Electromechanical operator.
Max width single leaf 2,5 – 4 m
Off axis” thrust operator.
Opening and closing mechanical stops included.
Horizontal exit for cables to allow near to ground installation (low installation).

Technical specifications:
Power supply voltage : 220-240V~ 50/60 Hz
Electric motor : Asynchronous single phase
Max. power : 300 W
Max expressed force : 3000 N (*)
Rod max speed : 16 mm/s (*)
Rod travel : 300 mm (400 mm without mechanical stops)
Max. leaf opening angle : 110°
Operating ambient temperature : -20°C ÷ + 55°C
Thermal protection : 140°C
Protection class : IP54
Weight : 7.8 Kg
Use frequency : S3 – 30%
Max. leaf width : 2.5 m.
Mounting brackets : Rear attachment to be welded/screwed,
Dimensions (LxDxH) : 836 x 101 x 147 mm.

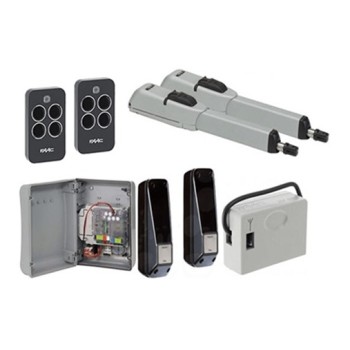

FAAC 415 Kit Includes:
2 x FAAC 415 Swing Gate Motor.
1 x XLED flashing light.
1 x Lock with key.
1 x E045S control unit.
1 x Enclosure mod. E for electronic control units.
1 x XF 433 MHz receiver.
1 x Pair of photocells XP 20 BD.
1 x 2 channels transmitter XT2 433 SLH LR.
1 x Push button.
