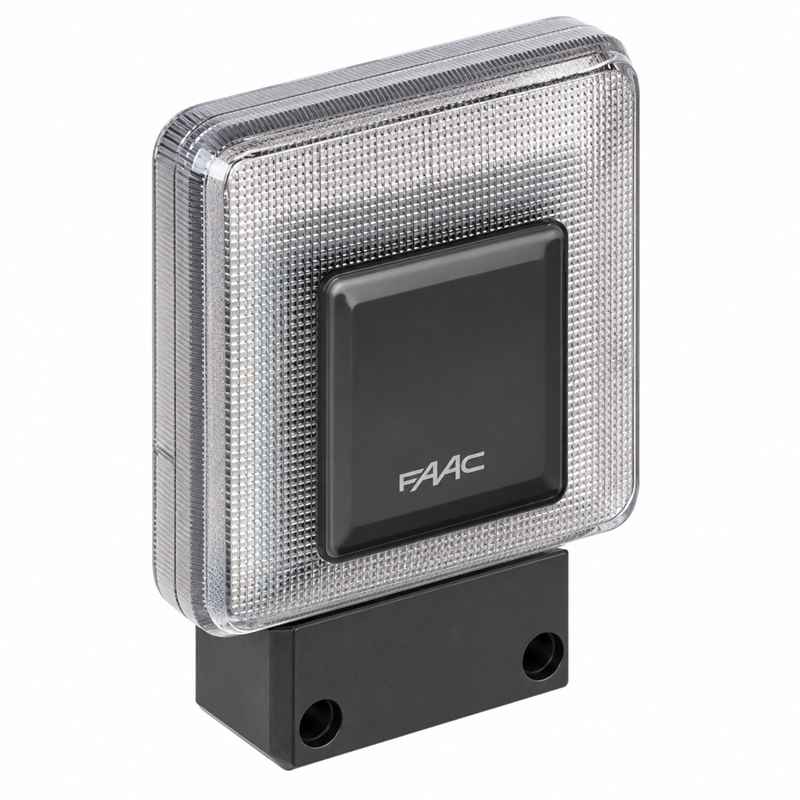

FAAC XLED 230V LED Gate Flashing Light

FAAC XLED 230V LED Gate Flashing Light UAE

FAAC XLED 230V is an original FAAC LED flashing warning light designed for automatic gates, swing gates, sliding gates and compatible parking barrier automation systems. Powered from 230V AC, the XLED uses an automatic internal flashing circuit to provide a highly visible warning signal whenever the connected gate automation is operating.

Equipped with 40 high-brightness LEDs, IP54 protection and an integrated 433 MHz / 868 MHz antenna, the FAAC XLED combines gate movement signalling and radio antenna functionality in one compact accessory.

FAAC XLED 230V Key Features

• Original FAAC gate flashing warning light
• Model: XLED
• 230V AC automatic internal flashing
• 40 high-brightness LEDs
• High visibility during gate operation
• Integrated 433 MHz / 868 MHz antenna
• Antenna can receive both supported frequencies
• Protection rating: IP54
• Operating temperature: -20°C to +55°C
• Compact dimensions: 135 × 55 × 165 mm
• Suitable for column or side installation
• Suitable for compatible FAAC sliding gate motors
• Suitable for compatible FAAC swing gate motors
• Suitable for compatible FAAC parking barriers
• Italian-designed gate automation accessory

FAAC XLED Technical Specifications

230V Automatic Gate Flashing Light

The FAAC XLED 230V is designed to provide a clear visual warning while an automatic gate or barrier is operating. On a compatible 230V installation, the XLED provides automatic internal flashing, allowing the lamp to flash without requiring the control board to generate the flashing sequence.

This makes it suitable for many FAAC 230V gate automation systems where a dedicated flashing-light output is available.

40 High-Brightness LEDs

The FAAC XLED incorporates 40 high-brightness LEDs to provide strong visual signalling during automatic gate movement. The LED design provides good visibility while eliminating the conventional lamp bulb used in older flashing warning lights.

The warning light helps pedestrians, drivers and property users recognize when an automatic gate or barrier is operating.

Integrated 433MHz & 868MHz Antenna

One of the main advantages of the FAAC XLED is its integrated radio antenna. The antenna supports both 433 MHz and 868 MHz frequencies, allowing it to be connected to a compatible FAAC radio receiver.

FAAC specifies that the integrated antenna can receive both frequencies and recommends a maximum coaxial cable length of 5 metres between the XLED antenna and compatible receiver.

Improved Gate Remote Reception

Using the integrated XLED antenna can help provide better radio reception than positioning a receiver antenna inside a metal gate motor enclosure, particularly where the installation environment reduces radio signal strength.

Actual remote-control range depends on the transmitter, receiver, antenna installation, surrounding structures and radio interference.

IP54 Outdoor Protection

The FAAC XLED has an IP54 protection rating and an operating temperature range from -20°C to +55°C. It is designed for outdoor gate automation installations when correctly installed according to FAAC requirements.

FAAC XLED for Sliding Gate Motors

The FAAC XLED can be used as a movement warning light with compatible FAAC automatic sliding gate motors. It provides a visible flashing signal whenever the gate automation is operating.

It is particularly suitable for compatible FAAC 230V sliding gate systems including FAAC 740 and FAAC 741 installations.

FAAC XLED for Swing Gate Motors

The XLED is also suitable for compatible FAAC swing gate automation systems. Installed in a clearly visible location, the flashing LED lamp provides a warning indication while the swing gate leaves are opening or closing.

FAAC XLED for Parking Barriers

The FAAC XLED can also be used with compatible FAAC automatic parking barrier systems where the control system provides the appropriate flashing-light connection.

A visible warning lamp is particularly useful at vehicle entrances, parking areas, residential compounds and commercial access points.

FAAC XLED Compatible Applications

• FAAC sliding gate motors
• FAAC swing gate motors
• Automatic driveway gates
• Villa gate automation
• Residential gate entrances
• Commercial automatic gates
• FAAC parking barriers
• Vehicle access entrances
• Compatible FAAC 230V automation systems

FAAC XLED with FAAC 740 & 741

The FAAC XLED is an appropriate warning-light accessory for compatible FAAC 740 500 KG and FAAC 741 900 KG sliding gate automation installations.

For a complete automatic gate system, the XLED can be installed together with the gate motor, FAAC remote receiver, remote controls, photocell safety sensors and other required automation accessories.

FAAC XLED Installation

The XLED can be installed in a clearly visible position on a gate pillar, column or suitable side mounting surface. The location should allow the warning light to be easily seen by people and vehicles approaching the automatic entrance.

If the integrated radio antenna is used, connect it to the compatible receiver using suitable coaxial cable. FAAC specifies a maximum antenna cable length of approximately 5 metres.

FAAC XLED 230V Flashing Light UAE

We supply FAAC XLED 230V LED gate flashing lights throughout the UAE for compatible FAAC automatic gate and barrier systems.

Supply, installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm the flashing-light output voltage of your gate control board. This page is specifically optimized for installations requiring the 230V FAAC XLED.
