Automatic Door Opener Radar Motion Sensor in UAE

Automatic Door Opener Radar Motion Sensor in UAE

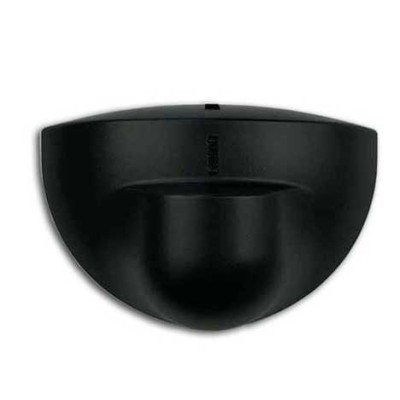

Microwave Radar Sensor for Automatic Door in UAE

• Microwave Radar Sensor for Automatic Door Opener
• Voltage: AC/DC12V~24V
• Detection mode: Movement
• Dimensions: 115x73mm

Specifications:

• A microwave motion sensor uses electromagnetic radiation.
• It emits waves that are then reflected back to the receiver.
• The receiver analyzes the waves that are bounced back.
• If there is an object moving in the room,
• these waves are going to be altered.
• The microwave detector is able to identify changes from moment to moment.
• Ideally, the receiver should be receiving the same waves back again and again.
• Because of the way that microwave motion sensors work,
• they can be either more sensitive or less sensitive.
• They can identify every minute changes (a totally empty house)
• or be calibrated to require larger-scale movement (to avoid false positives).
• voltage : AC/DC12V~24V ±10% (50~60Hz)
• Power dissipation : <2W (VA)
• Launch power : <20 dBm EIRP
• Launch frequency density : < 5mW/cm²
• Installation height : 3~4M
• Assemble a dip angle : 15°, 30°, 45°, 60°
• Detection mode : Movement
• The maximum checks range : 4x2m (WxH)(while assembling 2.2 meters of altitude)
• Detection speed : 5cm/s (Along the longitudinal axis of air wire
• Dimensions : 115x73mm
