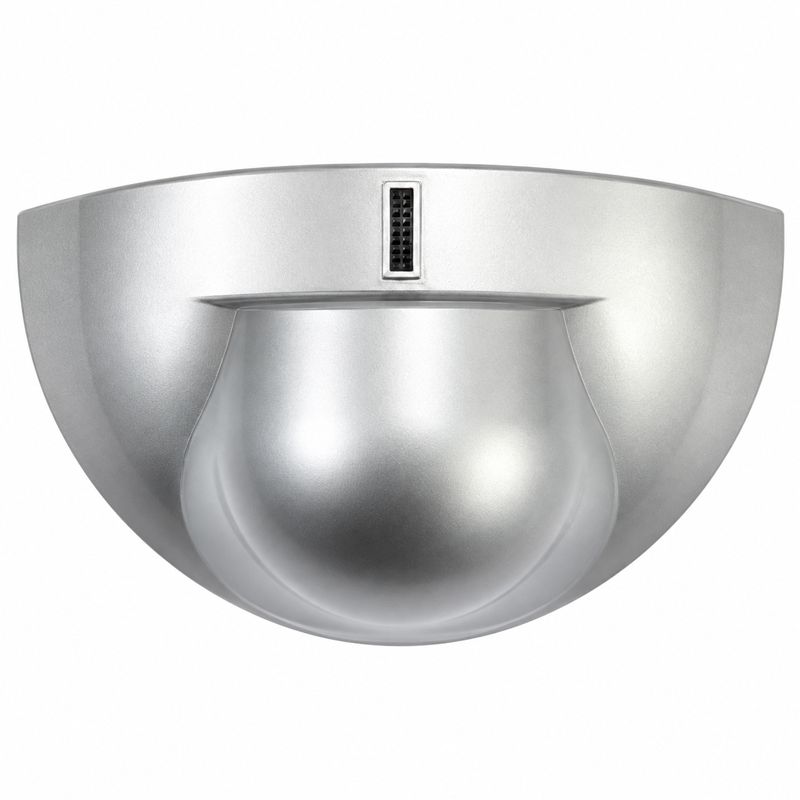

Automatic Door Microwave Motion Sensor

Microwave Motion Sensor for Automatic Sliding & Swing Doors UAE

This Automatic Door Microwave Motion Sensor is designed to activate automatic sliding doors, swing door operators and compatible automatic entrance systems when approaching movement is detected. Using microwave motion-detection technology, the sensor provides fast and reliable door activation for commercial, residential and public entrances.

The sensor operates from 12–24V AC/DC, consumes less than 2W and provides an adjustable detection area for different entrance requirements. It is suitable for automatic glass doors, sliding doors, swing doors and compatible door opener systems.

Automatic Door Microwave Sensor Key Features

• Microwave motion detection technology
• Designed for automatic door activation
• Power supply: 12–24V AC/DC ±10%
• Low power consumption: <2W
• Detection mode: Movement
• Maximum detection area: 4 × 2 metres at approximately 2.2m mounting height
• Minimum detection speed: 5 cm/s
• Recommended installation height: 3–4 metres
• Adjustable installation angles
• Compact dimensions: 115 × 73 mm
• Suitable for automatic sliding and swing doors
• Suitable for commercial entrance automation

Technical Specifications

Microwave Motion Detection for Automatic Doors

The sensor uses microwave motion-detection technology to detect movement approaching the automatic entrance. Microwave signals are transmitted into the detection area and reflected back toward the sensor. Changes caused by a moving person or object are detected and used to trigger the connected automatic door operator.

This makes the sensor suitable as an automatic door activation sensor where hands-free entry is required.

12–24V AC/DC Automatic Door Sensor

The sensor operates from a flexible 12–24V AC/DC ±10% power supply, allowing it to be used with many compatible automatic sliding and swing door controllers.

Before installation, always verify the accessory power output and activation-input requirements of the automatic door controller.

Adjustable Detection Area

The microwave sensor provides an adjustable detection area so the activation zone can be configured according to the entrance layout. Your current product specification gives a maximum detection field of approximately 4 metres wide × 2 metres deep when installed at approximately 2.2 metres.

Correct adjustment helps the door respond to approaching users while reducing unwanted activation from movement outside the required entrance area.

Automatic Sliding Door Motion Sensor

The microwave sensor can be used as an activation device for compatible automatic sliding glass door operators. When approaching movement is detected, the sensor sends an activation signal to the automatic door controller, allowing the door to open automatically.

This type of touch-free activation is widely used at retail stores, offices, hotels, hospitals and other commercial entrances.

Automatic Swing Door Motion Sensor

The sensor is also suitable for compatible automatic swing door openers. It can provide hands-free activation for entrances where users need the door to open automatically when approaching.

Compatibility should be confirmed with the swing door operator's power supply and activation input before connection.

Microwave Motion Sensor Applications

• Automatic sliding glass doors
• Automatic swing door operators
• Commercial entrance doors
• Retail shops and supermarkets
• Office buildings
• Hotels
• Hospitals and clinics
• Restaurants
• Banks
• Shopping centres
• Public entrance doors
• Automatic entrance systems

Motion Sensor vs Safety Sensor

This product is primarily a motion activation sensor used to command an automatic door to open when movement is detected. It should not automatically be described as a dedicated presence or anti-trap safety sensor.

Where the automatic door installation requires presence protection or anti-closing safety, use the appropriate automatic door safety sensor in accordance with the door operator and installation requirements.

Automatic Door Microwave Motion Sensor UAE

We supply automatic door microwave motion sensors throughout the UAE for automatic sliding doors, swing door openers and commercial entrance automation systems.

Supply, installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm your automatic door operator model, sensor supply voltage and required activation function to ensure compatibility with your system.
