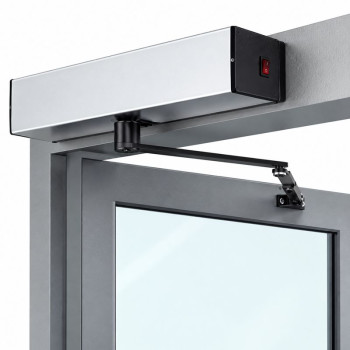

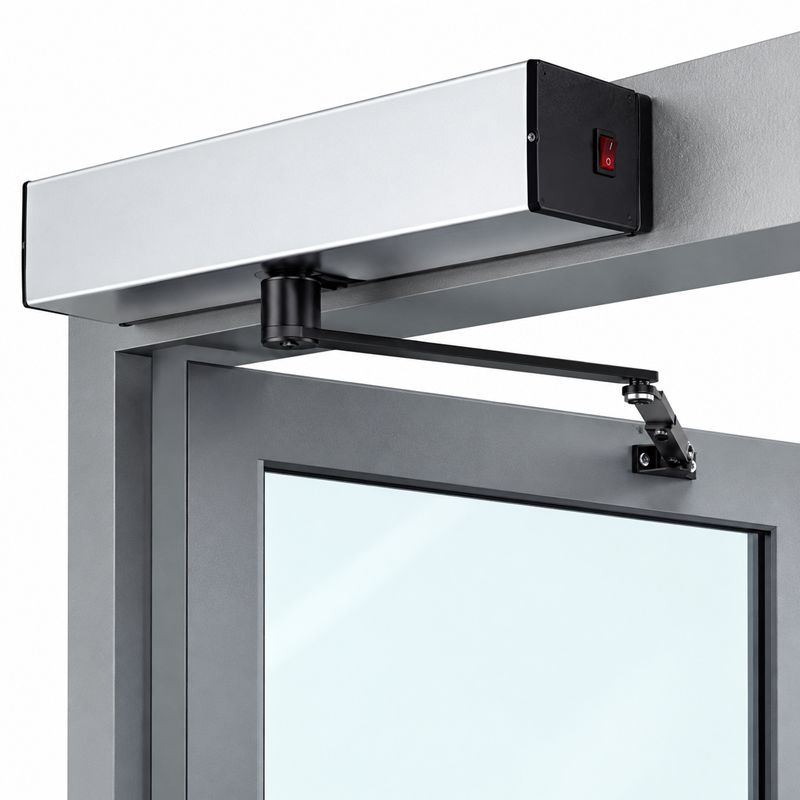

Automatic Swing Door Opener 150 KG

Automatic Swing Door Opener 150 KG for Commercial Doors UAE

Automatic Swing Door Opener 150 KG is a professional low-energy automatic door operator designed for smooth and convenient automation of swing doors weighing up to 150 kg. It is suitable for offices, hospitals, clinics, hotels, banks, commercial buildings, elderly care facilities and other entrances requiring reliable automatic or touchless door operation.

The operator uses an advanced microprocessor controller and brushless motor for smooth, quiet and energy-efficient operation. It supports automatic and manual operation and can be integrated with microwave motion sensors, push buttons, RFID readers, keypads, fingerprint readers, face-recognition systems and fire alarm systems.

Automatic Swing Door Opener 150 KG Key Features

• Maximum door weight: 150 KG
• Automatic swing door opening and closing
• Advanced microprocessor control system
• Durable brushless motor
• Smooth and quiet door movement
• Adjustable opening speed
• Adjustable closing speed
• Adjustable hold-open time
• Auto-reverse obstacle protection
• Electric lock support
• Automatic and manual operating modes
• Remote-control operation
• Access-control integration
• Microwave motion sensor compatibility
• Push-button activation
• Fire alarm system integration
• Suitable for PUSH and PULL arm configurations

Automatic Swing Door Opener 150 KG Technical Specifications

Automatic Door Operator for Doors up to 150 KG

This automatic swing door operator is designed for compatible swing doors weighing up to 150 kg. It provides powered opening followed by controlled automatic closing, making everyday access easier and reducing the need for users to physically operate the door.

The system can be used on suitable wooden, aluminium, metal and framed glass swing doors when the door dimensions, hinges, installation structure and operating conditions are compatible with the operator.

Brushless Motor for Smooth & Quiet Operation

The operator uses a brushless motor with self-locking technology to provide smooth movement, reduced operating noise, energy efficiency and long service life.

Opening and closing speeds can be adjusted during commissioning to suit the door and application.

PUSH & PULL Door Opening

The automatic door opener supports both PUSH and PULL arm configurations. The correct arm arrangement depends on the direction in which the door opens and the mounting position of the operator.

• PULL Arm: Suitable for compatible inward-opening configurations
• PUSH Arm: Suitable for compatible outward-opening configurations

The correct arm and installation geometry should be selected according to the actual door arrangement.

Adjustable 3–7 Second Opening

The operator provides an opening time of approximately 3–7 seconds for a 90° movement. The opening and closing movement can be adjusted during setup for smoother and safer door operation.

The hold-open time is adjustable from approximately 1 to 30 seconds, allowing the door to remain open for a selected period before automatically closing.

Automatic Door Operating Modes

The controller supports multiple operating modes for different entrance requirements:

• Automatic Mode
• Lock Mode
• One-Way Traffic Mode
• Half-Open Mode
• Hold-Open Mode

Auto-Reverse Safety Function

The automatic swing door opener includes an auto-reverse function designed to respond when abnormal resistance or an obstacle is detected during door movement.

Additional compatible safety sensors can be installed where required by the entrance design and application.

Microwave Motion Sensor Integration

A compatible microwave motion sensor can automatically activate the door when a person approaches the entrance. This provides convenient hands-free access for commercial buildings, hospitals, clinics, offices and other high-traffic locations.

Access Control Compatibility

The 150 KG automatic swing door opener can be integrated with a wide range of compatible access-control devices, allowing the door to open only after an authorized command or credential is received.

• RFID card readers
• PIN code keypads
• Fingerprint readers
• Face-recognition terminals
• Access-control controllers
• Wireless push buttons
• Touchless exit buttons
• Microwave motion sensors
• Remote controls
• Fire alarm systems

Touchless Automatic Door Solution

When connected to a compatible microwave sensor or non-touch activation switch, the operator can provide a touchless automatic door solution. This is particularly useful for hospitals, clinics, offices and other locations where convenient hands-free access is required.

Automatic Swing Door Opener Applications

• Hospitals and medical centres
• Clinics and pharmacies
• Office buildings
• Banks
• Hotels
• Shopping centres
• Retail shops
• Schools and universities
• Elderly care facilities
• Government buildings
• Commercial buildings
• Residential entrances

Automatic Swing Door Opener Package Includes

• 1 × Automatic Swing Door Opener

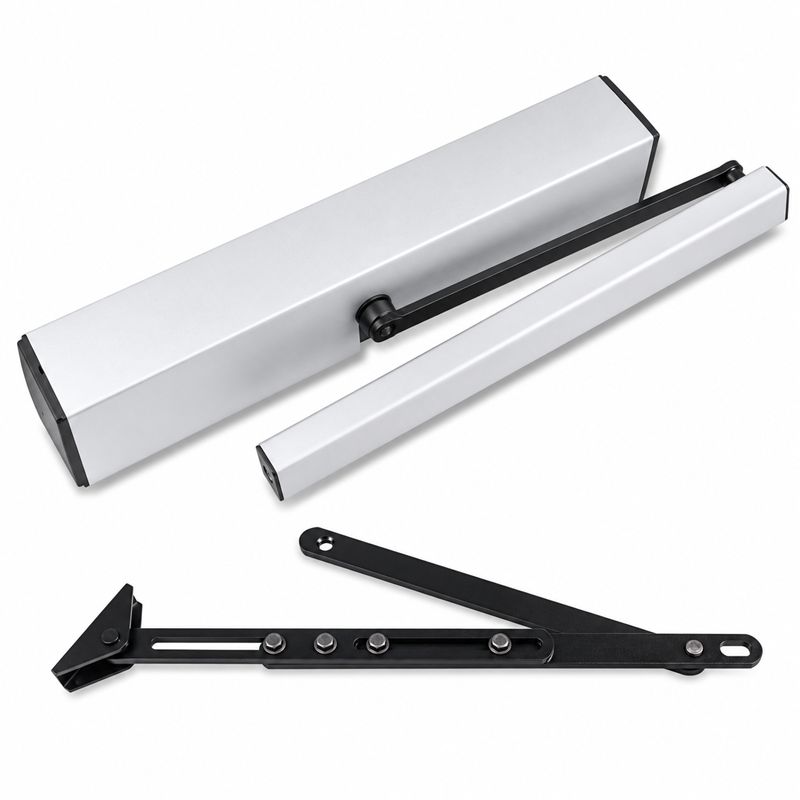

• 1 × PUSH or PULL Arm
• 1 × Microwave Sensor
• 2 × Remote Controls
• 1 × English User Manual

Automatic Swing Door Opener 150 KG UAE

We supply Automatic Swing Door Opener 150 KG systems throughout the UAE for commercial, healthcare, office, hospitality and residential automatic door applications.

Professional supply, installation, programming, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm the door weight, door width, opening direction, door material, PUSH/PULL arm requirement and required activation or access-control devices to ensure the correct automatic door configuration.
