SOMMER Swing Gate Motor - SOMMER TWIST XL - Best Price UAE

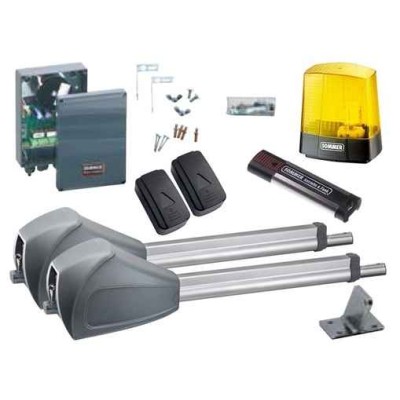

SOMMER TWIST XL Swing Gate Opener Motor in UAE
- Swing gate operator twist XL
- twist XL single operator 1-leafSOMMER version anthracite
- Article number: 3280V000
Technical data:
- Gate weight max : 1,100 kg
- Max. gate leaf width : 7,000 mm
- Max. gate inclination : 10 %
- Max. gate filling :100 %
- Rated voltage range 1 : 220-240 V
- Rated frequency : 50-60 Hz
- Motor voltage : DC 24 V
- Max. Thrust speed : 20 mm/s
- Max. Opening angle : 110 °
- Number of radio channels : 2
- Motor duty cycle : ED 40% S3
- Protection class IP44
- Protection control unit : IP65
- Temperature min. : -25 °C
- Temperature max. : 70 °C
Properties:
- twist XL swing gate operator, 1-leaf (can be used universally for DIN left and DIN right)
- Post and gate leaf fitting
- Please order control unit separately
