SOMMER twist 200 E Swing Gate Motor 300 KG

SOMMER twist 200 E Swing Gate Motor UAE

SOMMER twist 200 E is a professional 24V automatic swing gate motor designed for residential and light commercial swing gate automation. The operator supports gate leaves weighing up to 300 kg per leaf and gate leaf lengths up to 2.5 metres, depending on the gate weight and installation geometry.

Built with SOMMER German engineering, the twist 200 E combines a powerful 2,000 N maximum pulling and pushing force with electronically regulated force measurement, smooth gate movement and advanced SOMloq2 868.95 MHz radio technology.

SOMMER twist 200 E Key Features

• Original SOMMER swing gate automation
• Model: twist 200 E
• 2-leaf set article number: S11521-00001
• Maximum gate weight: 300 kg per leaf
• Maximum gate leaf length: 2.5 m
• Travel length: 390 mm
• Maximum pulling and pushing force: 2,000 N per leaf
• Rated pulling and pushing force: 660 N per leaf
• Maximum feed speed: 16.5 mm/s
• Motor voltage: 24V DC
• Mains supply: 220–240V AC, 50–60 Hz
• Duty cycle: S3 15%
• Operator protection: IP44
• Control unit protection: IP65
• Operating temperature: -30°C to +70°C
• Radio technology: SOMloq2
• Radio frequency: 868.95 MHz
• 40 radio memory positions
• Expandable to 450 radio commands with optional Memo
• Suitable for single-leaf and double-leaf swing gates
• Can be installed on left or right gate leaves

SOMMER twist 200 E Technical Specifications

300 KG Swing Gate Motor Per Leaf

The SOMMER twist 200 E can automate a swing gate weighing up to 300 kg per leaf. This makes it an excellent solution for villa entrances, residential properties and suitable light commercial swing gates.

Important: The 300 kg specification applies to each gate leaf under the manufacturer's specified conditions. SOMMER specifies the maximum 300 kg gate weight with a maximum leaf width of approximately 1.5 metres for a single-leaf system.

For longer gate leaves, the allowable gate weight is reduced. A gate leaf up to 2.5 metres is specified with a maximum weight of 200 kg.

For Swing Gates Up to 2.5 Metres Per Leaf

SOMMER specifies a gate leaf length from approximately 0.825 m up to 2.5 m for the twist 200 E.

Motor selection should therefore consider both gate weight and gate leaf length. A 2.5 m gate leaf should not automatically be assumed to support the full 300 kg maximum weight.

Powerful 2,000 N Linear Gate Operator

The twist 200 E produces a maximum pulling and pushing force of 2,000 N per leaf, with a rated force of 660 N.

The linear actuator design provides controlled opening and closing movement while the electronic control system monitors the operator force during gate travel.

24V DC Swing Gate Automation

The SOMMER twist 200 E uses a 24V DC motor controlled through the dedicated SOMMER gate control unit. The complete system is supplied from a 220–240V AC, 50–60 Hz mains connection.

The low-voltage motor system provides precise electronic control of the automatic gate movement and allows compatible safety and control accessories to be integrated into the installation.

Dynamic Power System Safety

SOMMER uses electronically regulated force measurement with its DPS – Dynamic Power System. The control system continuously evaluates the force required during gate movement.

Correct force adjustment and appropriate safety equipment are important for reliable and safe automatic gate operation.

SOMloq2 868.95 MHz Radio Technology

The current twist 200 E set uses SOMMER's SOMloq2 radio technology at 868.95 MHz. The supplied SOMup4 receiver provides memory for up to 40 radio commands.

An optional SOMMER Memo memory module can increase the available capacity to approximately 450 radio commands, making expansion possible where additional authorised transmitters are required.

SOMMER Pearl Vibe Remote Control

The twist 200 E set includes a compatible SOMMER Pearl Vibe 4-command remote control. Additional compatible SOMloq2 transmitters can be programmed into the receiver according to the available radio memory.

Single & Double Swing Gate Automation

The twist 200 E can be used for both single-leaf and double-leaf swing gate installations. The operator can be fitted to either the left or right gate leaf, providing flexibility for different entrance configurations.

For a double-leaf installation, two twist 200 E operators are controlled by the dedicated SOMMER control unit to coordinate the opening and closing sequence.

Suitable for Outward Opening Gates

With the appropriate special fittings and correct installation geometry, SOMMER specifies that the twist operator can also be used for suitable outward-opening swing gates.

The required brackets and installation dimensions should be confirmed before installation because outward-opening gate geometry differs from a conventional inward-opening installation.

Manual Emergency Release

The SOMMER twist 200 E incorporates a manual release mechanism that allows the gate operator to be disengaged when manual gate movement is required, such as during a power failure or maintenance.

After power is restored, the operator can be re-engaged according to the manufacturer's operating instructions.

SOMMER twist 200 E Safety Accessories

A professional automatic swing gate installation can be combined with compatible safety and access-control accessories, including:

• Photocell safety sensors
• Safety contact edges where required
• Flashing warning light
• SOMMER remote controls
• Push buttons
• Key switches
• GSM gate openers
• RFID access control
• Keypad access control

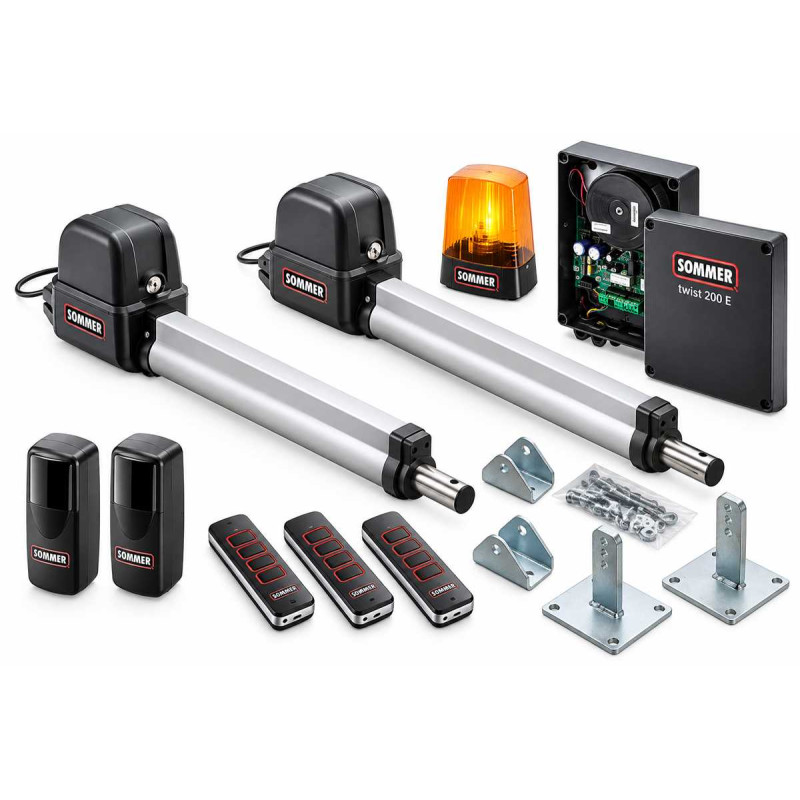

SOMMER twist 200 E Kit Contents

The listed twist 200 E 2-leaf set includes the main components required for a double swing gate automation installation:

• 2 × SOMMER twist 200 E swing gate operators
• 1 × DST-A 24 control unit in IP65 housing
• Post and gate-leaf fittings
• 1 × SOMup4 868.95 MHz SOMloq2 radio receiver
• Compatible SOMMER Pearl Vibe remote control
• Mounting components according to supplied kit configuration

Residential Villa Swing Gate Motor

The twist 200 E is particularly suitable for automatic villa gates and residential driveway entrances. Its compact linear actuator design provides a clean installation while offering the performance required for correctly sized residential swing gates.

The automation can be combined with remote controls, photocells, GSM access, RFID readers and other compatible access-control equipment for convenient vehicle entry.

How to Select the Correct SOMMER Swing Gate Motor

Do not select a swing gate motor using gate weight alone. Important factors include the weight of each leaf, leaf length, hinge position, pillar dimensions, opening angle, wind exposure, gate construction and operating frequency.

For example, although the twist 200 E has a maximum specification of 300 kg per leaf, SOMMER limits the maximum 2.5 m leaf to 200 kg. Larger or heavier gates may require a higher-capacity SOMMER swing gate operator.

SOMMER twist 200 E Swing Gate Motor UAE

We supply SOMMER twist 200 E swing gate motors throughout the UAE for villas, residential properties and suitable commercial automatic gate installations.

Supply, professional installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm the weight and length of each gate leaf, hinge position, pillar dimensions and required opening angle. This allows the correct SOMMER swing gate motor and installation geometry to be selected.
