SOMFY Reflex Photocell Safety Sensor

SOMFY Reflex Photocell Safety Sensor UAE

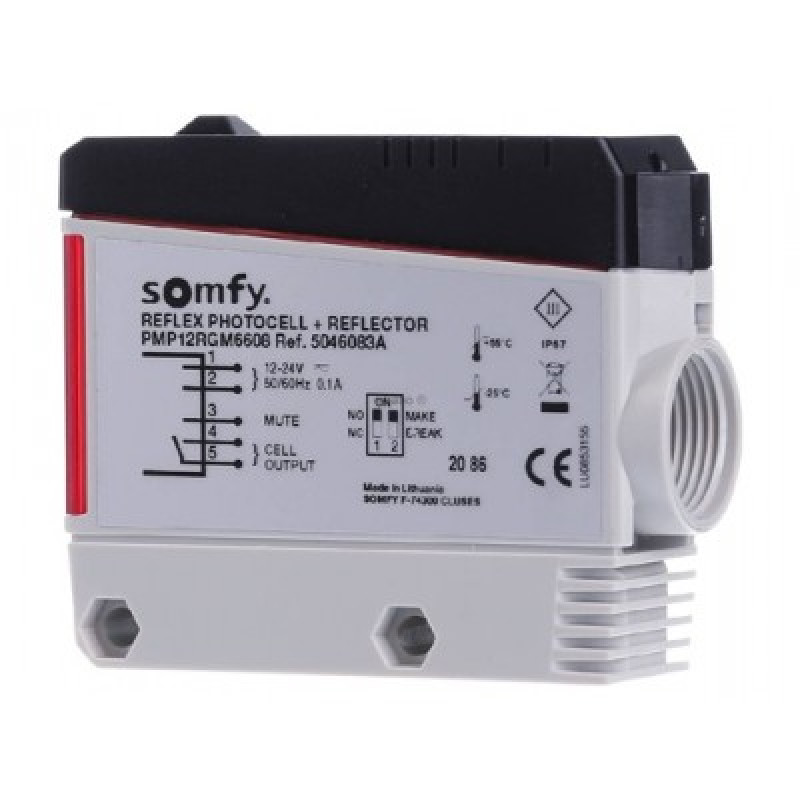

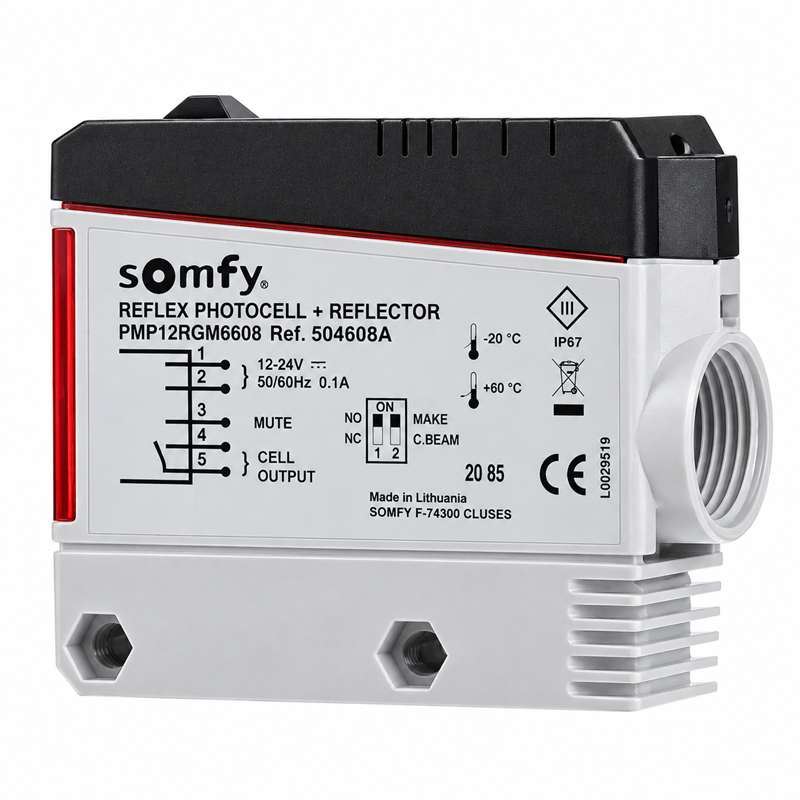

SOMFY Reflex Photocell is a reflective infrared safety sensor designed for compatible SOMFY automatic gate, garage door and access automation systems. Identified by SOMFY reference 9013647, the Reflex photocell monitors an entrance using an infrared beam reflected back from a reflector installed on the opposite side.

Unlike a conventional photocell system that normally requires a powered transmitter on one side and receiver on the other, the SOMFY Reflex uses a single powered photocell together with a reflector. This can simplify installation because electrical wiring is required on only one side of the protected entrance.

SOMFY Reflex Photocell Key Features

• Original SOMFY Reflex safety photocell
• SOMFY reference: 9013647
• Reflective infrared safety technology
• Single powered photocell with opposite reflector
• Helps detect vehicles, people and obstacles
• Designed for compatible SOMFY automation systems
• Suitable for compatible automatic gates
• Suitable for compatible garage door automation
• Compatible with selected SOMFY Rollixo systems
• Supports safety auto-test with compatible control systems
• Reduces the need for electrical wiring across both sides of an entrance
• Suitable for residential and commercial access automation

SOMFY Reflex Photocell Technical Specifications

How SOMFY Reflex Photocell Works

The SOMFY Reflex photocell sends an infrared beam toward a reflector mounted on the opposite side of the entrance. The reflector returns the beam to the photocell sensor.

When a vehicle, person or other obstacle passes between the sensor and reflector, the beam is interrupted. The photocell then changes its safety output to the compatible SOMFY automation controller.

Depending on the control-board configuration, the automation can stop, prevent closing or reverse movement when an obstacle is detected.

Single-Side Wiring with Reflector

One of the main installation advantages of a reflex photocell is that the powered sensor is located on one side of the entrance while the opposite side uses a passive reflector.

This can simplify installations where running an electrical cable to both sides of a driveway, garage entrance or gate opening would be difficult.

SOMFY Reflex vs Standard Photocell Sensors

24V SOMFY Safety Photocell Connection

SOMFY documentation shows the 9013647 Reflex photocell connected to compatible automation electronics using terminals for +24V, 0V, MUTE, CELLS and OUTPUT.

The exact wiring arrangement depends on the SOMFY controller being used. Always follow the wiring diagram for the installed automation control board rather than connecting the photocell based only on terminal names.

Safety Auto-Test Function

With a compatible SOMFY controller, the Reflex photocell can be incorporated into an automatic safety test. The automation controller checks the safety device during operation to verify that the photocell is functioning correctly.

If the safety test fails, compatible SOMFY systems can restrict normal automatic closing according to their programmed safety logic.

Automatic Gate Obstacle Detection

The SOMFY Reflex photocell can form part of the safety system for a compatible automatic entrance. If an obstacle interrupts the reflected infrared beam, the connected automation controller receives the photocell safety signal.

The exact gate response depends on the controller configuration and may include preventing closure, stopping movement or reopening the automation.

SOMFY Reflex for Garage Doors

The SOMFY Reflex photocell is particularly suitable for compatible garage and rolling door automation systems where a safety beam is required across the entrance.

SOMFY documentation specifically provides connection information for the 9013647 Reflex photocell with compatible Rollixo RTS and Rollixo io control systems.

SOMFY Reflex for Automatic Gates

A reflective photocell system may also be used with compatible automatic gate control equipment where the controller supports the required photocell input and safety logic.

Compatibility should be confirmed from the specific gate motor or control-board manual before installation.

SOMFY Reflex Photocell Installation

The powered photocell should be securely installed on one side of the entrance and the reflector positioned directly opposite it. Correct alignment is essential so that the infrared beam reaches the reflector and returns reliably to the sensor.

The installation should be tested by interrupting the beam at different points across the protected area and confirming that the automation produces the correct safety response.

SOMFY Reflex Photocell Maintenance

Keep both the photocell lens and reflector clean and free from dust, dirt and obstruction. Periodically check the alignment and test the safety response of the automation.

For installations operating without an automatic safety test, SOMFY documentation specifies that correct photocell operation should be checked every 6 months.

SOMFY Reflex Photocell Sensor UAE

We supply SOMFY Reflex photocell safety sensors throughout the UAE for compatible SOMFY gate, garage door and access automation systems.

Supply, installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm your SOMFY motor or control-board model and verify compatibility with the 9013647 Reflex photocell. For replacement installations, also confirm that the reflector and required wiring are available.
